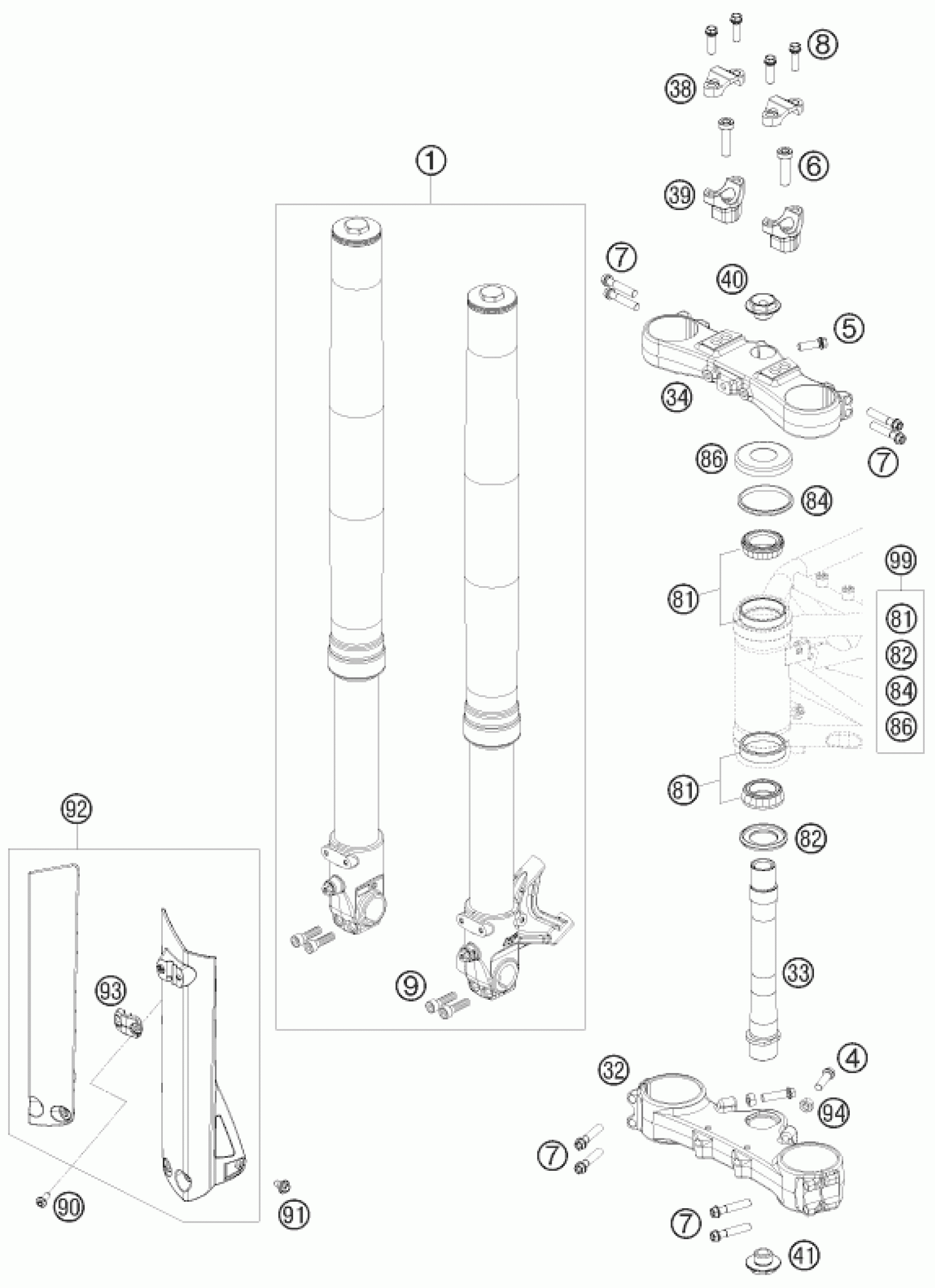

KTM 690 SMC 2008 FRONT FORK, TRIPLE CLAMP Diagram

#

Description
Price

1

KTM 690 SMC '08

14187D12

Unavailable

4

COLLAR SCREW M8X35 TX

0025080353

Unavailable

5

HH collar screw M8x30 TX40

0025080303

Unavailable

6

AH SCREW DIN6912-M10X35 10.9

0912100356

Unavailable

7

HH COLLAR SCREW M8X40 TX40

0025080406

Unavailable

8

HH collar screw M8x25

0025080256

Unavailable

32

BOT.TRIPLE CLAMP 32-34 OFFSET

7650113103301S

Unavailable

33

FORK TUBE L=237MM 08

76501033000

Unavailable

34

TRIPLE CLAMP TOP 32-34 ADJUST.

7650113403301

Unavailable

38

HANDLEBAR CLAMP 28MM 05

59401038000

Unavailable

39

Handlebar mount D28mm-H42mm

59401039042

Unavailable

40

STEER.HEAD SCREW M20X1,5 WS=27

54801036000

Unavailable

41

STE.HEAD SCR. M20X1,5 WS=27 SL

54801036100

Unavailable

81

TAPERED ROLLER BEARING CPL. 06

54201081100

Unavailable

82

O-RING SUPPORT W. SEALING LIP

54601084100

Unavailable

84

STEARING HEAD GASKET TOP

54601184000

Unavailable

86

STEERING HEAD COVER

54201086000

Unavailable

90

EJOT PT SCREW K60X20 ALU WS=6

0017060204

Unavailable

91

SPECIAL SCREW M6X12,5 WS=8

59001092050

Unavailable

92

FORK PROTECT. L/S+R/S BLACK 08

7650109400030

Unavailable

93

CLAMP FOR SPEEDO CABLE

7650108500030

Unavailable

9

AH SCREW DIN0912-M 8X30

0912080303

Unavailable

94

Hexagon nut DIN934 M8

0934080003

Unavailable

99

STEARING HEAD REP. KIT 06-15

00050000930

Unavailable
