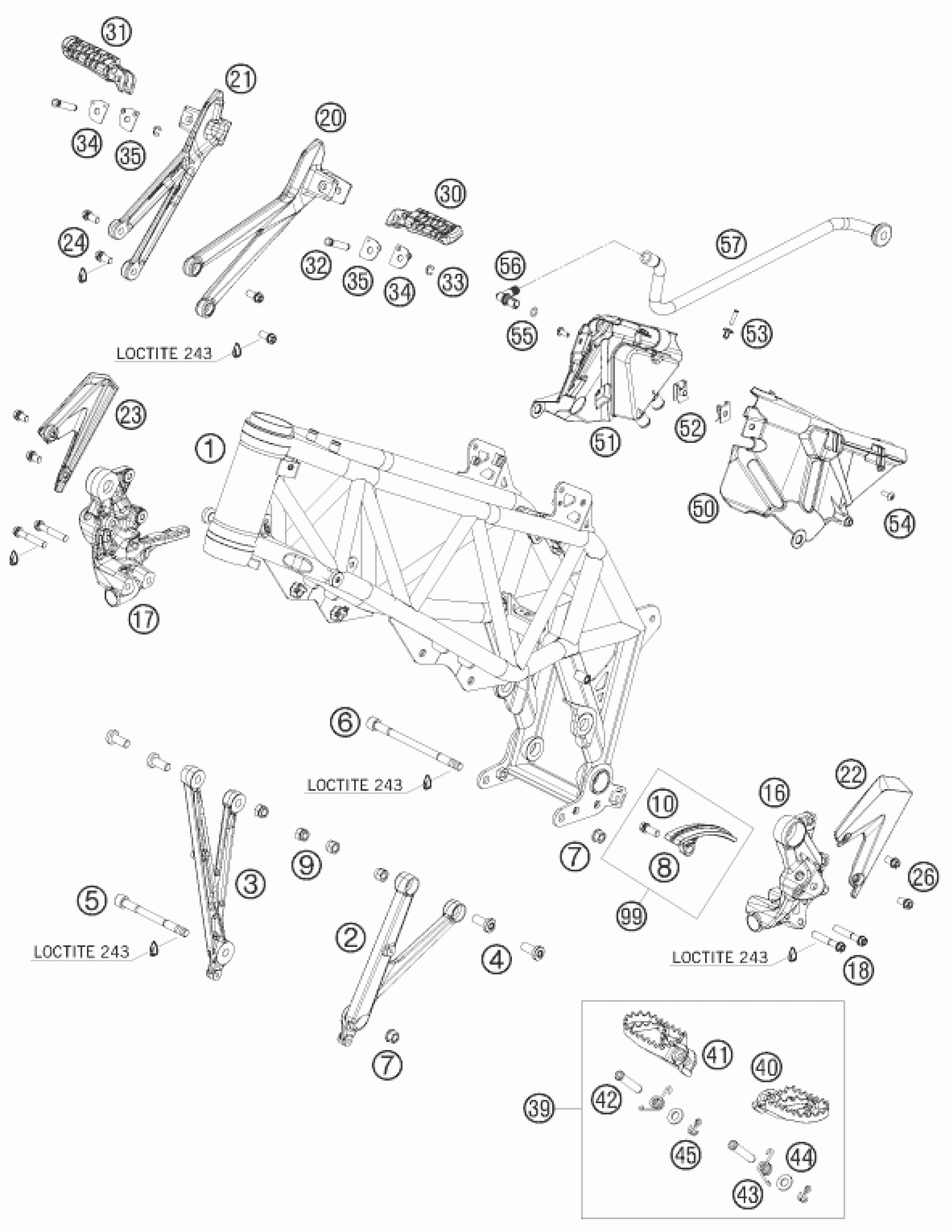

KTM 690 SMC 2008 FRAME Diagram

#

Description
Price

57

VENTILATION OIL SEPARATOR FOAM

76530087000

Unavailable

3

ENGINE SUPPORT RIGHT SIDE 08

7650300600001S

Unavailable

4

AH collar screw M10x24 ISA45

0035100249

Unavailable

5

SPECIAL SCREW M10X115 ISK8 07

75003015000

Unavailable

1

FRAME ''EC08'' BLACK MATT 08

7650300100033

Unavailable

2

ENGINE SUPPORT LEFT SIDE 08

7650300500001S

Unavailable

6

SPECIAL SCREW M10X152 ISK8 07

75003014000

Unavailable

7

COLLAR NUT M10 WS=13

54630044000

Unavailable

8

CHAIN SLID. GUARD 08

76504067000

Unavailable

9

SELF LOCKING NUT M10 CU WS=14

54310086100

Unavailable

10

HH collar screw M8x20

0025080206

Unavailable

16

FOOTREST BRACKET L/S 08

7650303804401S

Unavailable

17

FOOTREST BRACKE R/S 08

7650303904401S

Unavailable

18

HH collar screw M8x45 TX40

0025080456

Unavailable

20

FOOT REST BRACKET REAR L/S

7650304800001S

Unavailable

21

FOOT REST BRACKET REAR R/S

7650304900001S

Unavailable

22

HEEL PROTECTOR LS 09

76503038150

Unavailable

23

HEEL PROTECTOR RS 08

76503039050

Unavailable

24

HH COLLAR SCREW M8X16 TX40

0025080166

Unavailable

39

FOOTREST L/S+R/S CPL. 08-12

76503040033

Unavailable

40

FOOT PEG L/S SILVER 02

59003040250

Unavailable

41

FOOT PEG R/S SILVER 02

59003041250

Unavailable

42

BOLT FOR FOOT PED 08

76503044000

Unavailable

43

FOOTREST SPRING L/S & R/S

54603041000

Unavailable

44

washer DIN 125 A 10.5

0125100003

Unavailable

45

PIN DIN0094-3,2X25 STEEL

0094032253

Unavailable

26

HH collar screw M8x12 TX40

0025080126

Unavailable

30

FOOTREST CPL. L/S REAR 03

60003050000

Unavailable

31

Footrest cmpl. r/s rear 03

60003051000

Unavailable

32

BOLT FOR FOOTREST REAR 03

60003044000

Unavailable

33

retaining washer DIN 6799 - 6

0799060003

Unavailable

35

ENGAGE PANEL FOOTREST L/S 03

60003152000

Unavailable

34

ENGAGE PANEL FOOTREST R/S 03

60003052000

Unavailable

50

COVER FRAME L/S

76503083000

Unavailable

51

COVER FRAME R/S

76503084000

Unavailable

52

clip nut M5

69008021080

Unavailable

53

Spread rivet cmpl. 6.2mm

76503075000

Unavailable

54

Oval head screw M5x14 TX25

58605083014

Unavailable

55

O-RING 8X2 SILICONE

0770080020

Unavailable

56

ANGLE CONNECTOR LC8 03

60038082000

Unavailable

99

CHAIN SLIDING BELOW 08-13

76504067010

Unavailable
