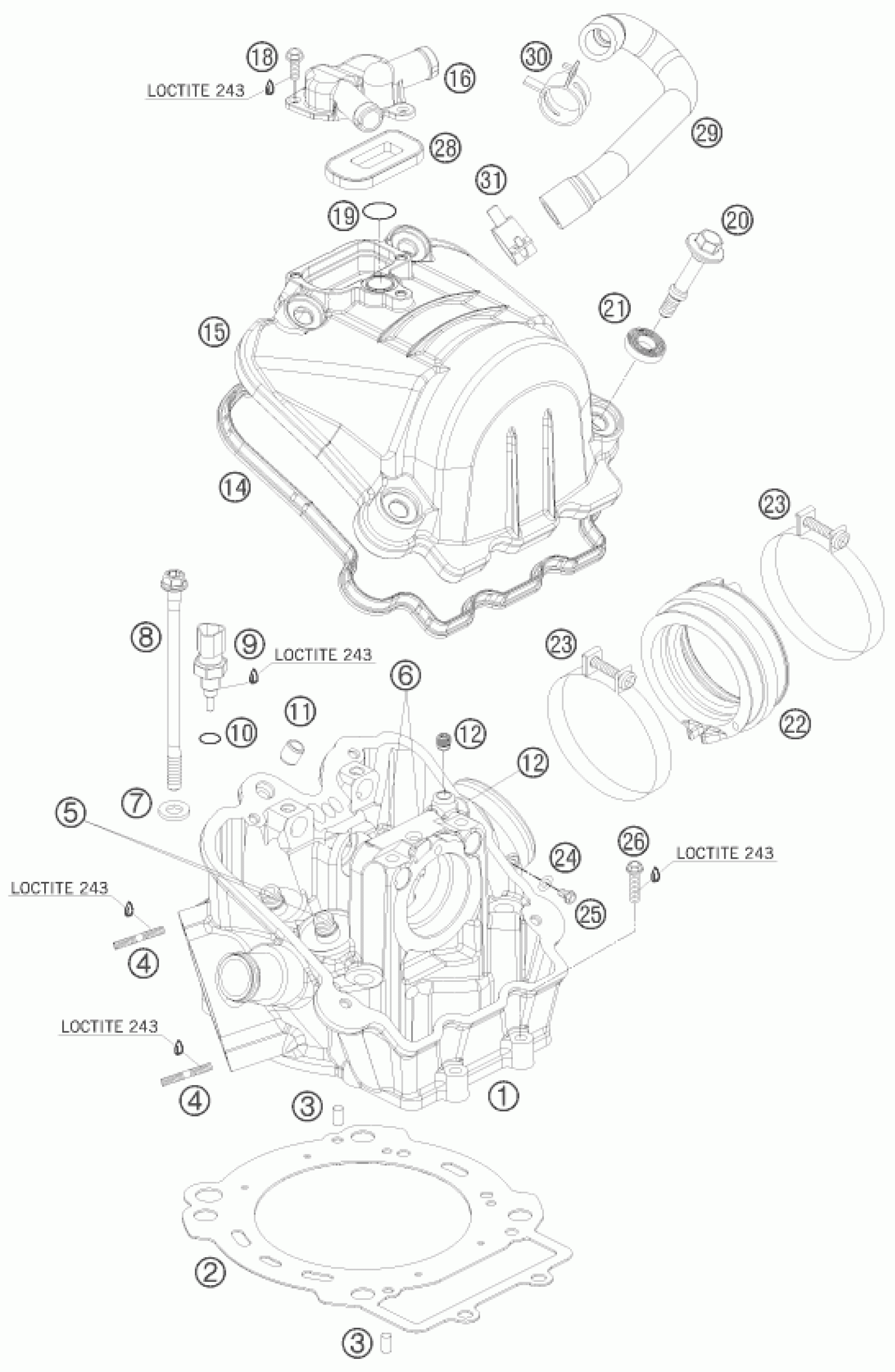

KTM 690 SMC 2008 CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER HEAD CPL.

7503602014452

Unavailable

2

CYLINDER HEAD GASKET 07

75030036000

Unavailable

3

GROOVED PIN DIN1474 5X10

0474050100

Unavailable

4

STUD DIN0835-M 8X25 10.9

0835080256

Unavailable

5

VALVE GIUDE OUTLET '05

60036026100

Unavailable

6

VALVE GIUDE OUTLET '05

60036025100

Unavailable

7

SHIM 10,2X19X1,5MM 05

60036078050

Unavailable

8

CYLINDERHEAD SCREW M10X168WS14

75036079000

Unavailable

9

TEMPERATURE SENSOR WATER 07

75035047000

Unavailable

10

o-ring 10.00x2.00 silicone

0770100020

Unavailable

11

DOWEL 9,8 X 7 X 10

49030090000

Unavailable

12

SCREW PLUG

59030296000

Unavailable

14

VALVE COVER GASKET 07

75036053000

Unavailable

15

VALVE COVER 07

75036052000

Unavailable

16

BREATHER COVER 07

75036052050

Unavailable

18

CYLIND. SCR. DIN6912 M5X10 8.8

0984050103S

Unavailable

19

O-RING 15,00X1,50 VITON

0770150151

Unavailable

20

valve mechanism cover screw

75036055000

Unavailable

21

decoupling element

75036052010

Unavailable

22

INTAKE BOOT 07

75036044000

Unavailable

23

HOSE CLAMP GEMI 70MM

75036047000

Unavailable

24

CU-SEAL RING DIN7603-6X10X1

0603061001

Unavailable

25

HH COLLAR SCREW M 6X8 WS=8

0015060083

Unavailable

26

HH COLLAR SCREW M 6X25 WS=8

0015060253

Unavailable

28

SAS Reed Valve

60005026000

Unavailable

29

PRE.HOSE OIL SEPARATOR FOAM 08

76530088000

Unavailable

30

CLAMP STD DN20

00049200121

Unavailable

31

CLAMP 21X12 STD-DES

00049210121

Unavailable
