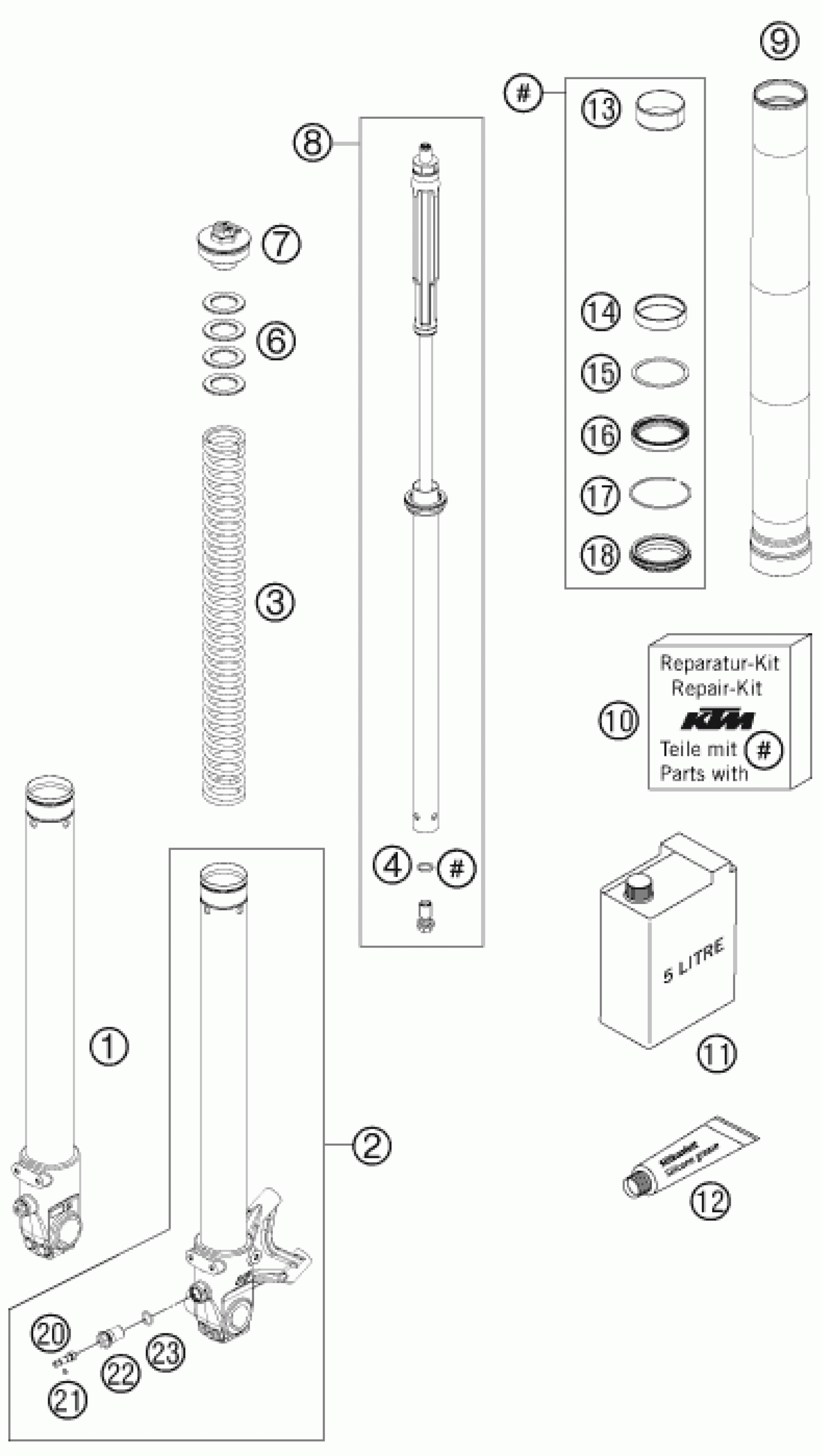

KTM 690 SMC 09 <2009> FRONT FORK DISASSEMBLED Diagram

#

Description
Price

1

AXLE CLAMP R/S CPL. 09

48600536S3

$809.70

22

Adjuster housing compression M

48600596

Unavailable

20

Adjustment screw slot compress

48600598

Unavailable

21

O-ring 3x1,5 NBR70

48600046

$1.49

23

O-ring 11x2 NBR70

48600604

Unavailable

2

AXLE CLAMP L/S CPL. 09

48600535S3

$740.42

3

SPRING D43.2 L465 5N/MM SET

91410058S

Unavailable

3

SPRING D43.2L465 5.2N/MM D5.25

91410064S

Unavailable

3

Mainspring D43.2 L465 5.4N/MM

91410065S-00

Unavailable

4

SEALING RING COPPER 12X18X1,5

48600704

$2.05

6

Preload bush 26,5x42x10

48600038

$3.08

6

Preload bush 26,5x42x5

48600037

$4.11

6

Preload bush 42x26,5x2,5

48600036

$2.05

6

Preload bush 26,5x42x1,5

48600053

$4.11

7

Screw cap M51X1.5 cmpl. 0

48600558S

$72.87

8

CARTRIDGE CPL. 08

48600705S1

Unavailable

9

OUTER TUBE

48600814

$392.62

10

REPAIR-KIT GASKET 09

R14017

$106.21

11

FORK OIL SAE5 5L 2008

48600765S1

$149.59

12

SILICONE GREASE F. DUST STRI

T511

$34.59

13

DU-BUSH D47XD49X20DDL02

48600428

$12.05

14

DU-BUSH D48XD52X12DDL02

48600429

$12.05

15

Supportwasher 50x57,6x1,5

48600013

$3.08

16

OIL SEAL RING 48X57,8X9,5 03

48600347

$13.64

17

Snap ring SB58x1,5 acc drawing

48600070

$2.05

18

DUST CAP D=48 58,4X11,8

48600400

$12.80
