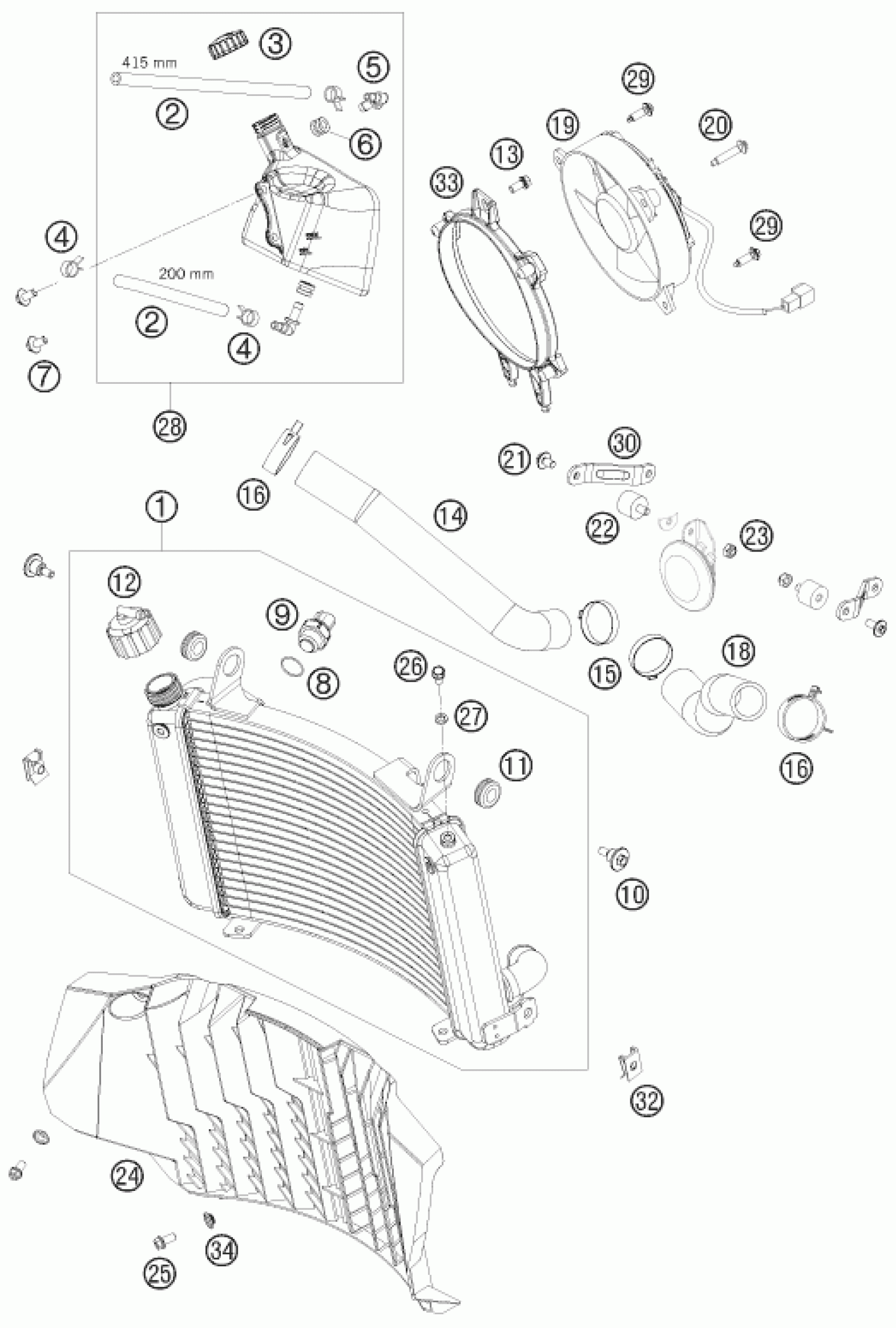

KTM 690 SMC 09 <2009> COOLING SYSTEM Diagram

#

Description
Price

1

RADIATOR 08

76535010000

$427.19

2

HOSE 6X10 EPDM 03

60035067001

Unavailable

3

PLUG F. EXPANSION TANK

60035066000

$6.72

4

YDNAC-CLAMP 10107 10MM

58007117000

$3.08

5

Angle piece, reservoir

60035068000

$3.08

6

RUBBER GROMMET 6X9X13MM 04

60035069000

$4.11

7

COLLAR SCREW M6X12 TX

0023060123

$2.05

8

O-ring 17X1.5

0770017015

$1.49

9

THERMOSWITCH LC8 102DG '03

60035045000

$40.48

10

Special screw M6x24 WS=8

60038083000

$3.08

11

RUBBER SLEEVE D=12MM

41001052000

$4.11

12

RADIATOR CAP 1,4 BAR

62535009000

$25.42

13

HH collar screw M6x12 TX30

0025060126

$3.08

14

RADIATOR HOSE 08

76535025000

$18.22

15

Stufenlose Einohrklemme 33,1mm

00050331706

$3.08

16

CLAMP STD DN32

00049320121

$4.11

18

RADIATOR HOSE 08

76535024000

$24.68

19

FAN L/S 03

60035041000

$164.83

20

SPECIAL SCREW T60 6X30 WS=6

0017060303

$2.05

21

HH COLLAR SCREW M6X10 TX30

0024060106

$3.08

22

silentbloc 20x15-M6x10-(1)

43205062100

$13.92

23

Self lock. nut DIN985-M6-A2

0985060003

$2.05

24

RADIATOR PROTECTION 08

76535040000

$26.26

25

HH collar screw M6x12 TX30

0025060126

$3.08

26

HH collar screw M6x10 TX30

0025060106

$3.08

27

ALU-GASKET 6X10X1.5

60035048000

$3.08

28

EXPANSION TANK CPL. 07

76535065000

$29.82

29

EJOT PT SCREW K60X20 WS=6

0017060203

$2.05

30

RETAINING PLATE RADIATOR 08

76535001000

$10.37

32

clip nut M6

54603048100

$4.11

33

FAN COWL 08

76535044000

$5.30

34

COLLAR BUSHING

76508043050

$5.23
