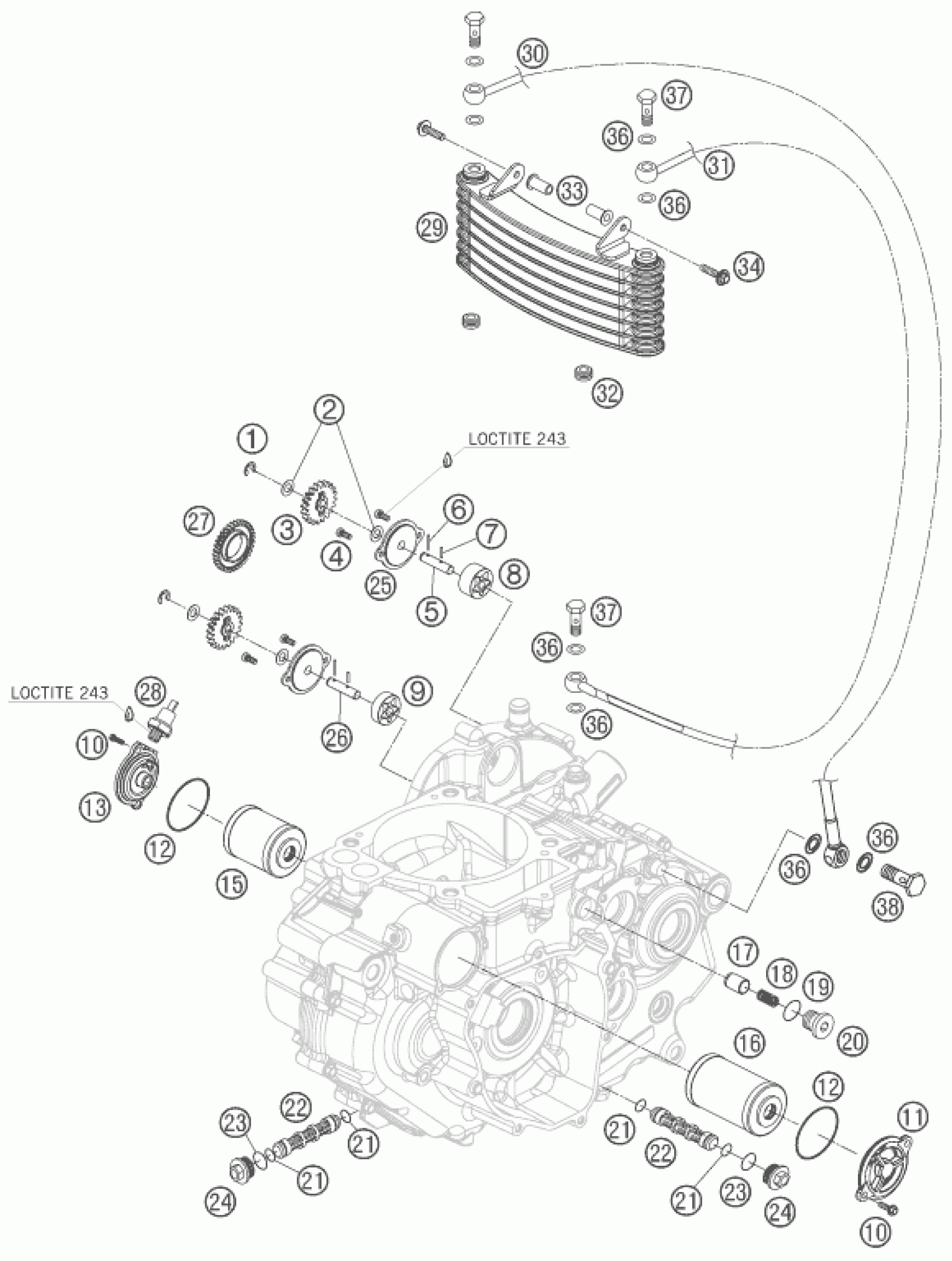

KTM 690 RALLY FACTORY REPLICA <2010> LUBRICATING SYSTEM Diagram

#

Description
Price

1

TAB WASHER DIN6799-RS 6,0

0799060000

$2.05

2

STOP DISK 8,1 X 15 X 0,5

58038007755

$2.05

3

OIL PUMP GEAR 20-T

75038001020

$5.23

4

AH SCREW DIN7984 M5X10 A2

07984050100

$1.49

5

OIL PUMP SHAFT 07

75038002000

$8.78

10

HH collar screw M5x16 TX30

0025050166

$2.05

11

oil filter cover

75038041200

$8.13

12

O-RING 39,34X2,62

07700390261

$2.05

13

OIL FILTER COVER 07

76238041000

Unavailable

15

OIL FILTER SHORT 07

75038046000

Unavailable

16

OIL FILTER LONG

58038005100

$10.46

17

VALVE PISTON D=10MM

58038028000

$37.77

18

OIL PRES.SPRING 5 BAR RED 2001

58538023000

$7.94

19

CU-seal ring DIN7603-12X18X1.5

58038022000

$2.05

20

threaded plug DIN 908 M12x1.5

0908120153

$4.11

21

O-RING 12,5X1,5 VITON V75

07701250151

$4.11

22

OIL SCREEN 15X83MM

59038016000

$7.00

23

o-ring 18.00x2.00 NBR70

0770180020

$2.05

24

PLUG M20X1,5 WS=13

59038017000

$7.85

25

OIL PUMP COVER 07

75038003000

$6.91

26

OIL PUMP SHAFT 07

75038004000

$8.78

27

OIL PUMP DRIVE WHEEL 07

75032050001

$4.11

28

OILPRESSURE SWITCH 03

58338091100

Unavailable

29

OIL COOLER

76238000000

Unavailable

30

OIL PIPE ENGINE-COOLER 1035MM

76238034100

Unavailable

31

OIL PIPE COOLER-ENGINE 1000MM

76238035100

Unavailable

32

rubber grommet D=8mm open

31008060000

$2.05

33

INSULATED SCREW JOINT M6

76212090070

Unavailable

34

HH collar screw M6x20 TX30

0024060206

$3.08

36

sealing ring DIN 7603 10x14x1

0603100141

$2.05

37

HOLLOW SCREW M10 X 1

54313025000

$6.44

38

HOLLOW SCREW M10 X 1

76238025000

Unavailable

6

NEEDLEROL.DIN5402 NRA 2,5X19,8

0402251980

$1.49

7

NEEDLE ROLLER DIN5402 2,5X11,8

0402251180

$1.49

8

OILPUMP ROTOR 15MM G-164

77038011000

$43.75

9

OILPUMP ROTOR CPL. 10MM G-73R

59038011010

$32.53
