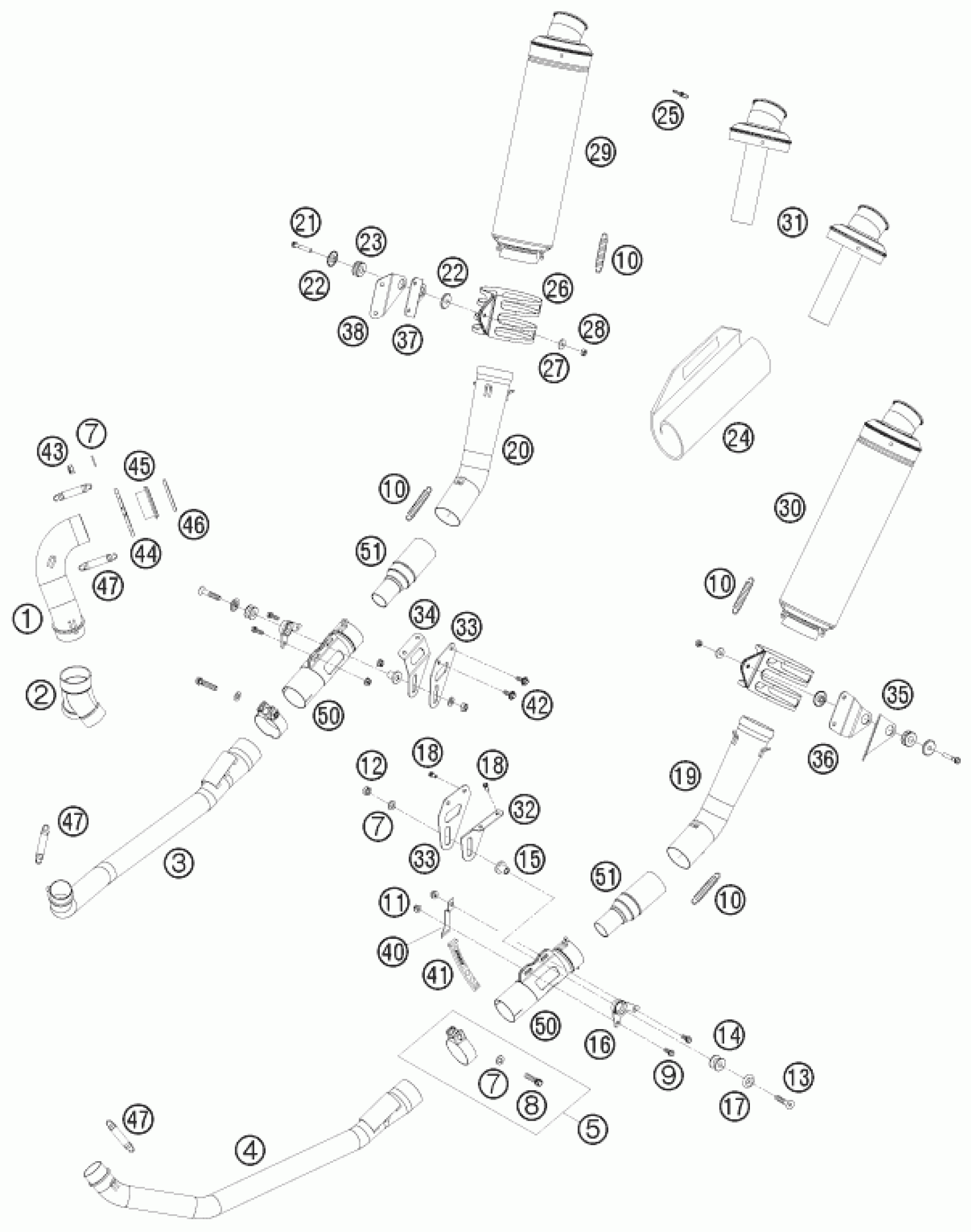

KTM 690 RALLY FACTORY REPLICA <2010> EXHAUST SYSTEM Diagram

#

Description
Price

1

CONNECTING MANIFOLD CPL. 07

76205007000

Unavailable

2

Y-PIPE

76205012010

Unavailable

3

EXHAUST MANIFOLD 1 LE. CPL. 07

76205009000

Unavailable

4

EXHAUST MANIFOLD 1 RI. CPL 07

76205008000

Unavailable

5

EXHAUST CLAMP RALLYE 02

58505058000

Unavailable

7

washer DIN 125 A -8.4

0125080003

$1.49

8

HH collar screw M8x35 TX40

0025080356

$4.11

9

HH collar screw M6x16 TX30

0025060166

$3.08

10

TEN.SPRING L=62MM EY.MOVEABLE

50305016000

$4.57

11

Self locking nut M6 - 10

56509064100

$2.05

12

Hexagon nut DIN934 M8

0934080003

$2.05

13

FLAT HEAD SCREW DIN7991-M 8X40

0991080403

$3.08

14

damp. component silicone grey

54305068100

$8.31

15

SLEEVE EX. PIPE-BOT. FIX. STR.

76205053000

Unavailable

16

EXHAUST SUPP. CENTER RALLY 02

5850506700090

Unavailable

17

SPECIAL WASHER ALU 8X24 MM ELO

58303061100

$6.07

18

HH collar screw M5x10 TX30

0025050106

$1.49

19

EXHAUST TAIL PIPE CPL.

76205013000

Unavailable

20

EXHAUST TAIL PIPE CPL.

76205014000

Unavailable

21

HH collar screw M6x35 TX30

0025060356

$3.08

22

BUSHING 7,5X12X28X7,8 '96

54605069000

$6.07

23

EXHAUST BRACKET RUBBER BLACK

54605068000

$6.54

24

STUFFING YARN 495 GRAM

77005078495

$87.98

25

DUMMY RIVET 5,0X12 STEEL

0011501201

Unavailable

26

CLAMP FOR SILENCER 03

58505161200

Unavailable

27

WASHER 6,2X18X2

50232050000

$5.23

28

Hex. nut DIN 934 M6

0934060003

$1.49

29

SILENCER R/S THROTTLED

76205371000

Unavailable

30

SILENCER L/S THROTTLED

76205271000

Unavailable

31

END CAP CPL. W. INNER TUBE 09

76205071150

Unavailable

32

EXHAUST FIXING PLATE REAR 3 07

76205052006

Unavailable

33

EXHAUST FIXING PLATE REAR 4 07

76205052007

Unavailable

34

EXHAUST FIXING PLATE REAR 5 07

76205052008

Unavailable

35

EXHAUST FIXING PLATE REAR 2 07

76205052005

Unavailable

36

EXHAUST FIXING PLATE REAR 1 07

76205052004

Unavailable

37

EXHAUST FIXING PLATE REAR 7 07

76205052010

Unavailable

38

EXHAUST FIXING PLATE REAR 6 07

76205052009

Unavailable

40

SIDE STAND RUBBER-RET. PLATE

76203023070

Unavailable

41

RUBBER BAND

54611186000

$5.23

42

HH COLLAR SCREW M6X10 TX30

0024060106

$3.08

43

self-locking nut M8 Cu

51010086100

$3.08

44

UNION FLANGE

76205007052

Unavailable

45

EXHAUST FLANGE

76205007051

Unavailable

46

Exhaust gasket 05

61005005000

$10.00

47

EXHAUST-SPRING WITH RUBBER 02

57305016000

$8.49

50

CAT SUPPORT CPL.

76205015000

Unavailable

51

CATALYST WELDED EXC 08

77005009033

Unavailable
