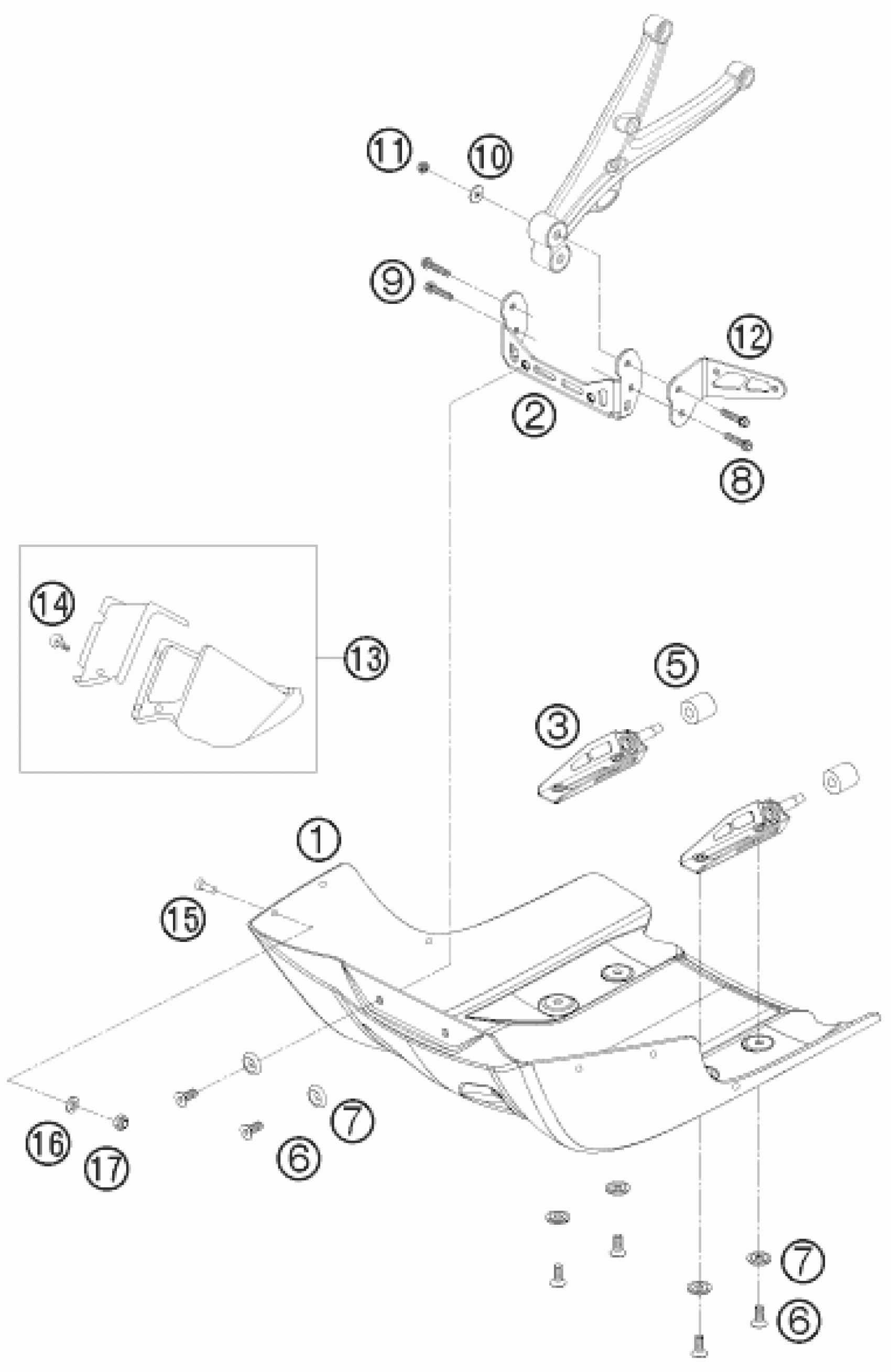

KTM 690 RALLY FACTORY REPLICA <2010> ENGINE GUARD Diagram

#

Description
Price

1

ENGINE GUARD

76212099040

Unavailable

2

ENGINE GUARD BRACKET CPL.

76212099024

Unavailable

3

ENGINE GUARD BRACKET REAR CPL.

76212099010

Unavailable

5

RUBBER INSERT

76203005031

$25.89

6

SPROCKET SCREW-AH M8X20 WS=6

54610052000

$2.05

7

SPECIAL WASHER ALU 8 X 24 MM

58303061000

$5.23

8

HH collar screw M6x40 TX30

0025060406

$3.08

9

HH COLLAR SCREW M 6X35 WS=8

0015060353

$3.08

10

Washer DIN9021-A 6.4

0021060003

$2.05

11

Self lock. nut DIN985-M6-A2

0985060003

$2.05

12

FIXING PLATE VOLT. REGULATOR

76203001074

Unavailable

13

TOOL CASE R/S CPL.

76212099060

Unavailable

14

QUICK RELEASE F. RAC. COVER

69008901050

Unavailable

15

LINTIL HEAD SCREW M5X12 AH 02

58512099365

Unavailable

16

WASHER DIN0125-A 5,3

0125050003

$1.49

17

Self locking nut DIN 985 M5

0985050003

$2.05
