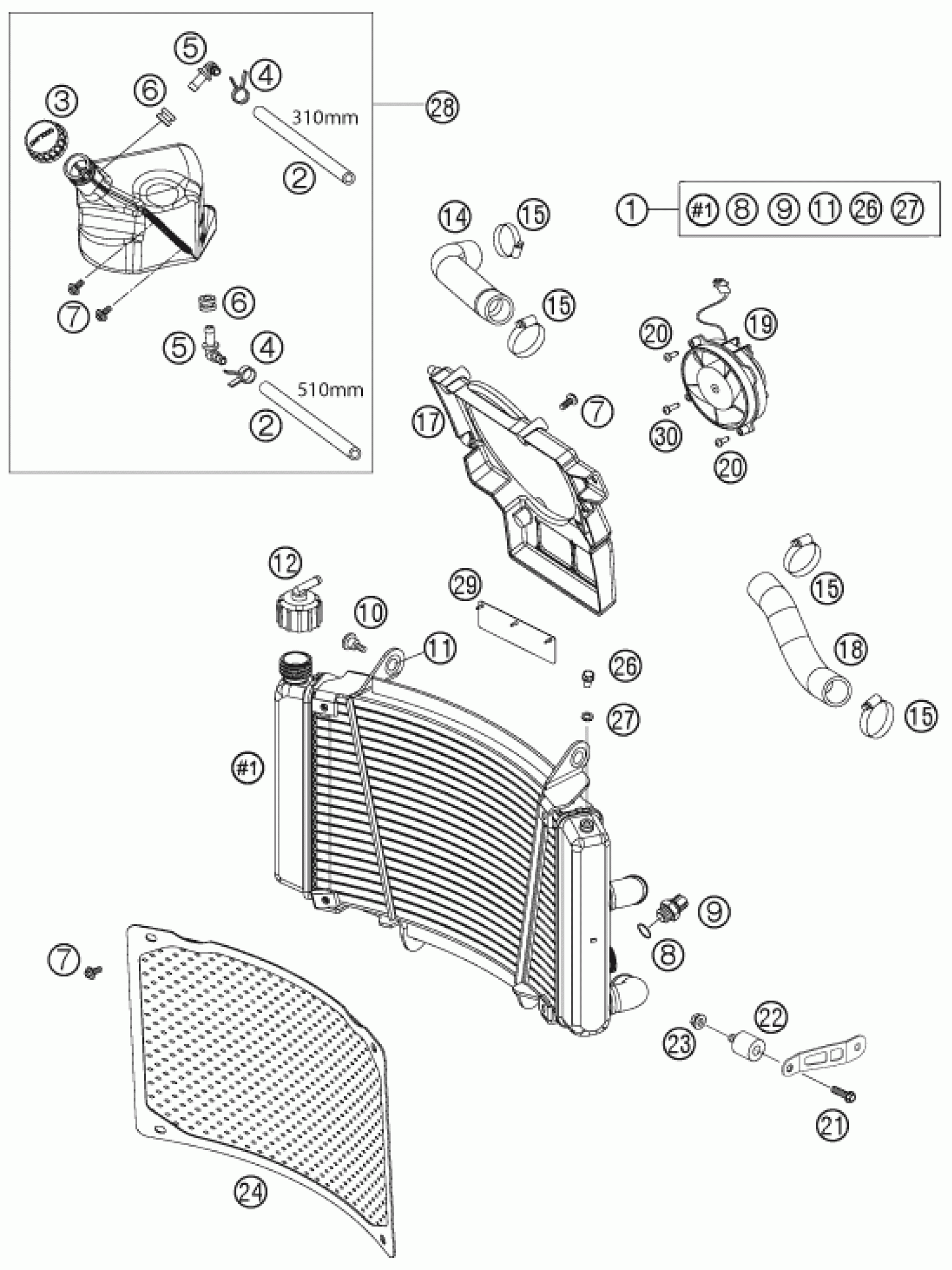

KTM 690 RALLY FACTORY REPLICA <2010> COOLING SYSTEM Diagram

#

Description
Price

1

RADIATOR ''VW 1182''

76235010000

Unavailable

2

HOSE 6X10 EPDM 03

60035067001

$8.87

3

PLUG F. EXPANSION TANK

60035066000

$6.72

4

YDNAC-CLAMP 10107 10MM

58007117000

Unavailable

5

Angle piece, reservoir

60035068000

$3.08

6

RUBBER GROMMET 6X9X13MM 04

60035069000

$4.11

7

HH collar screw M6x13 TX30

0024060136

$3.08

8

O-ring 17X1.5

0770017015

$1.49

9

THERMOSWITCH 80-85 DG

58035045000

$37.95

10

SPECIAL SCREW M6X21 WS=8

60035001000

$3.08

11

RUBBER SLEEVE D=12MM

41001052000

$4.11

12

RADIATOR CAP 1,4 BAR

62535009000

$25.42

14

RADIATOR HOSE 08

76535025000

$18.22

15

Hose clamp GEMI 20-32

76235028000

$4.11

17

FAN COWL 07

76235044000

Unavailable

18

RADIATOR HOSE 08

76235026000

Unavailable

19

FAN L/S 03

60035041000

$164.83

20

EJOT PT SCREW K60X20 WS=6

0017060203

$2.05

21

HH COLLAR SCREW M6X10 TX30

0024060106

$3.08

22

silentbloc 20x15-M6x10-(1)

43205062100

$13.92

23

Self lock. nut DIN985-M6-A2

0985060003

$2.05

24

RADIATOR PROTECTOR 07

76235034044

Unavailable

26

HH collar screw M6x10 TX30

0025060106

$3.08

27

ALU-GASKET 6X10X1.5

60035048000

$3.08

28

EXPANSION TANK CPL. 07

76235066000

Unavailable

29

FAN CLACK RUBBER 08

62635044050

$8.03

30

SPECIAL SCREW T60 6X30 WS=6

0017060303

$2.05
