Description

Price

1

AIR FILTER BOX

76206104000

Unavailable

2

FILTER BOX-TOP PART 08

76506002000

$42.81

3

AIR FILTER TWIN AIR 09

76206115000

Unavailable

4

FILTER CARRIER CPL.

76206101050

Unavailable

5

AIR BOX BRACKET

76206101051

Unavailable

6

AIRFILTER PAPER 200X120

76506015000

$23.55

7

HH collar screw M6x12 TX30

0025060126

$3.08

8

Self lock. nut DIN985-M6-A2

0985060003

$2.05

9

Washer DIN9021-A 6.4

0021060003

$2.05

10

INTAKE TUBE 07

76206040000

Unavailable

11

HOSE CLAMP 60-80MM

55006028000

$4.11

12

HOSE CLAMP 45-65MM

78006027000

$5.23

13

Oval head screw ISO 7380 M 6X8

0902060083

$1.49

14

RUBBER GROMMET 20X15-M6X15-M6

76206012000

Unavailable

15

NUT F.TANK BRAKET REAR

60512063050

$26.55

16

ALU FLANGE

76206050000

$69.18

17

HH SCREW DIN933 M6x70

0933060703

Unavailable

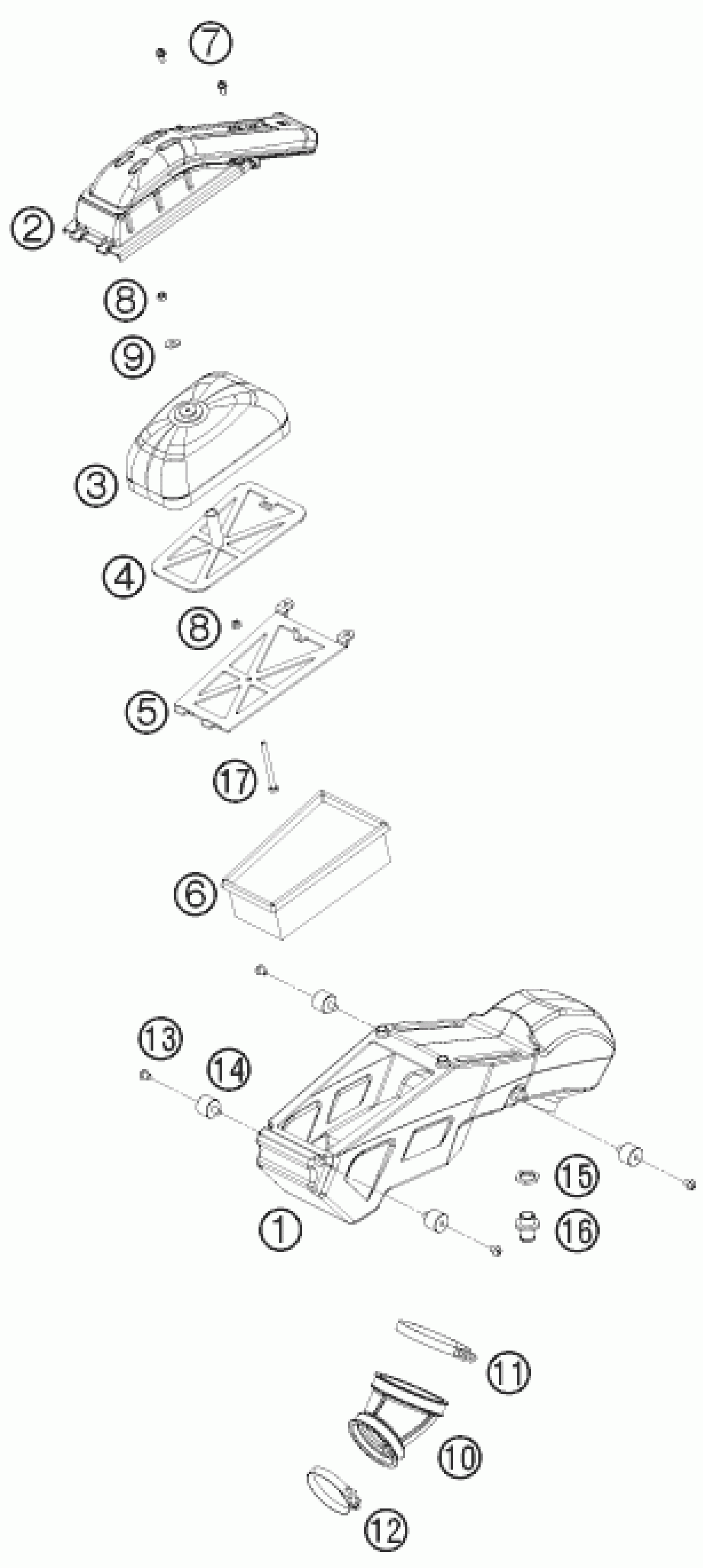

KTM 690 RALLY FACTORY REPLICA <2010 AIR FILTER Diagram

AIR FILTER BOX

FILTER BOX-TOP PART 08

AIR FILTER TWIN AIR 09

FILTER CARRIER CPL.

AIR BOX BRACKET

AIRFILTER PAPER 200X120

HH collar screw M6x12 TX30

Self lock. nut DIN985-M6-A2

Washer DIN9021-A 6.4

INTAKE TUBE 07

HOSE CLAMP 60-80MM

HOSE CLAMP 45-65MM

Oval head screw ISO 7380 M 6X8

RUBBER GROMMET 20X15-M6X15-M6

NUT F.TANK BRAKET REAR

ALU FLANGE

HH SCREW DIN933 M6x70
