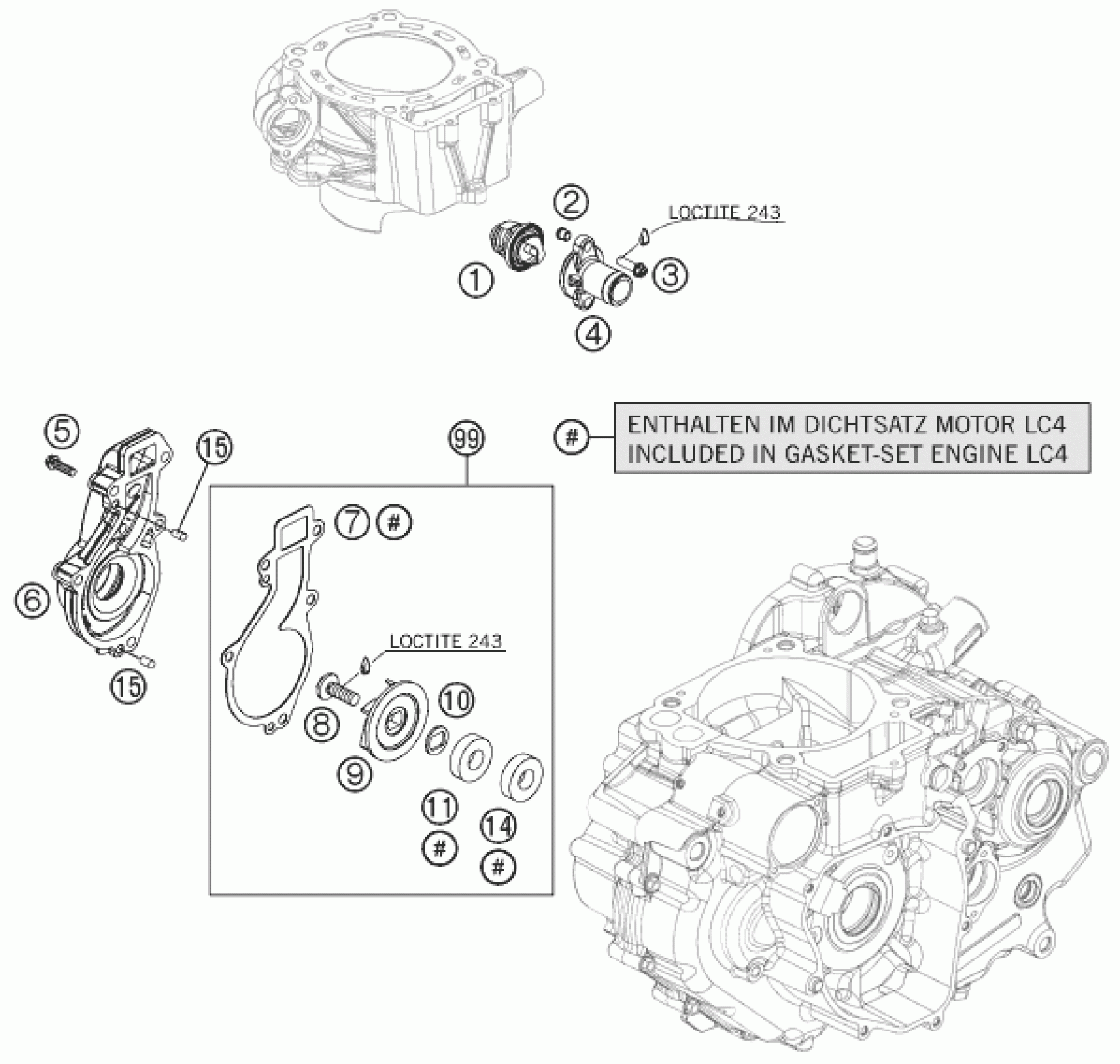

KTM 690 RALLY FACTORY REPLICA 2009 WATER PUMP Diagram

#

Description
Price

1

THERMOSTAT 07

75035017000

Unavailable

2

SUPPORTING SLEEVE 03

60040027050

Unavailable

3

HH collar screw M6x20 TX30

0025060206

Unavailable

4

THERMOSTATCOVER 07

75035016000

Unavailable

5

HH collar screw M6x30 TX30

0025060306

Unavailable

6

WATERPUMP COVER 07

75035052100

Unavailable

7

WATER PUMP COVER GASKET 07

75035053000

Unavailable

8

HH collar screw M6x15 TX30

0024060156

Unavailable

9

WATER PUMP ROTOR 07

75035055000

Unavailable

10

double-d washer 16x1 SST

60035055150

Unavailable

11

SHAFT SEAL RING. 12X30X7 VITON

0760123071

Unavailable

14

SHAFT SEAL RING 12X30X7 PTFE

0760123073

Unavailable

15

GROOVED PIN DIN1474 5X10

0474050100

Unavailable

99

WATER PUMP REP. KIT 690

75035055010

Unavailable
