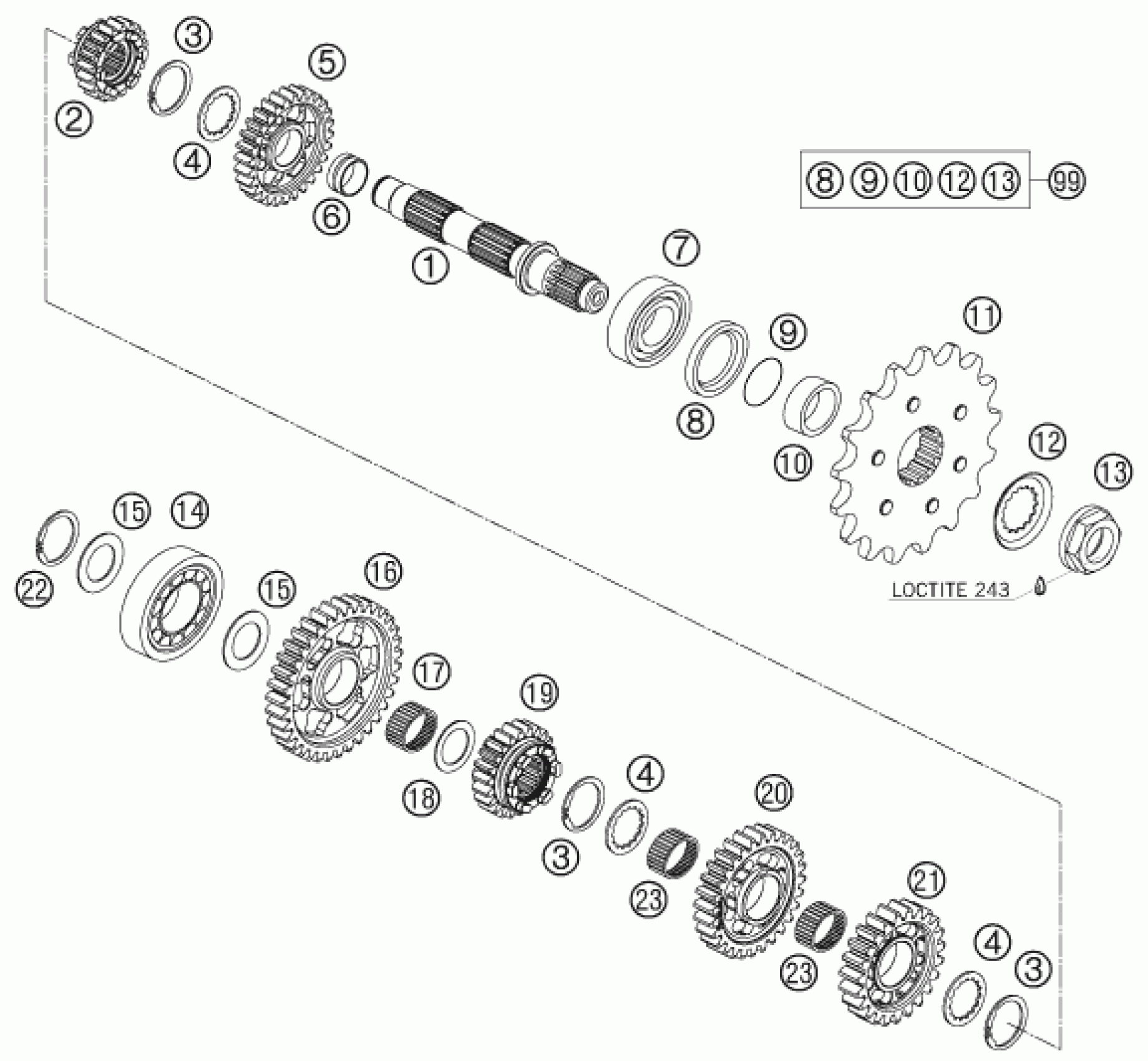

KTM 690 RALLY FACTORY REPLICA 2009 TRANSMISSION II - COUNTERSHAFT Diagram

#

Description
Price

1

COUNTER SHAFT 07

76233010000

Unavailable

2

SLIDING GEAR 6TH G. 07

76233016000

Unavailable

3

LOCK RING DNS-25

76233023000

Unavailable

4

STOP DISK 22,7 X 32 X 1,5

56533016300

Unavailable

5

IDLER 2. GEAR

76233012100

Unavailable

6

BEARING BUSH

76233022100

Unavailable

7

CYL.ROLLER BEARING NJ205 C4

49030023100

Unavailable

8

radial shaft seal 32x47x7BSL V

0760324773

Unavailable

9

O-RING 25,12X1,78 NBR70

0770020220

Unavailable

10

Spacing tube front sprocket

76633030012

Unavailable

11

ENGINE SPROCKET 15 T

58033029015

Unavailable

11

ENGINE SPROCKET 16 T

58033029016

Unavailable

11

ENGINE SPROCKET 17 T

58033029017

Unavailable

12

locking plate

51033031000

Unavailable

13

sprocket nut M20x1.5

58033032200

Unavailable

14

BALL BEARING 6004 C4 N

0625204213

Unavailable

15

Shim 20x31.9x1

59033080000

Unavailable

16

IDLER GEAR 1ST GEAR 07

75033011000

Unavailable

17

NEEDLE BEARING K22X26X13H

56533098000

Unavailable

18

STOP DISK 22,2X31,7X1

54603036000

Unavailable

19

5TH GEAR COUNTERSHAFT 07

76233015000

Unavailable

20

IDLER GEAR 3.G 07

75033013000

Unavailable

21

IDLER GEAR 4.G 07

76233014000

Unavailable

22

CIRCLIP DIN471 20X1,2

0471200120

Unavailable

23

NEEDLE BEAR. K 22X26X13 TN

0405222613

Unavailable

99

Repair kit output shaft 690

00050000993

Unavailable
