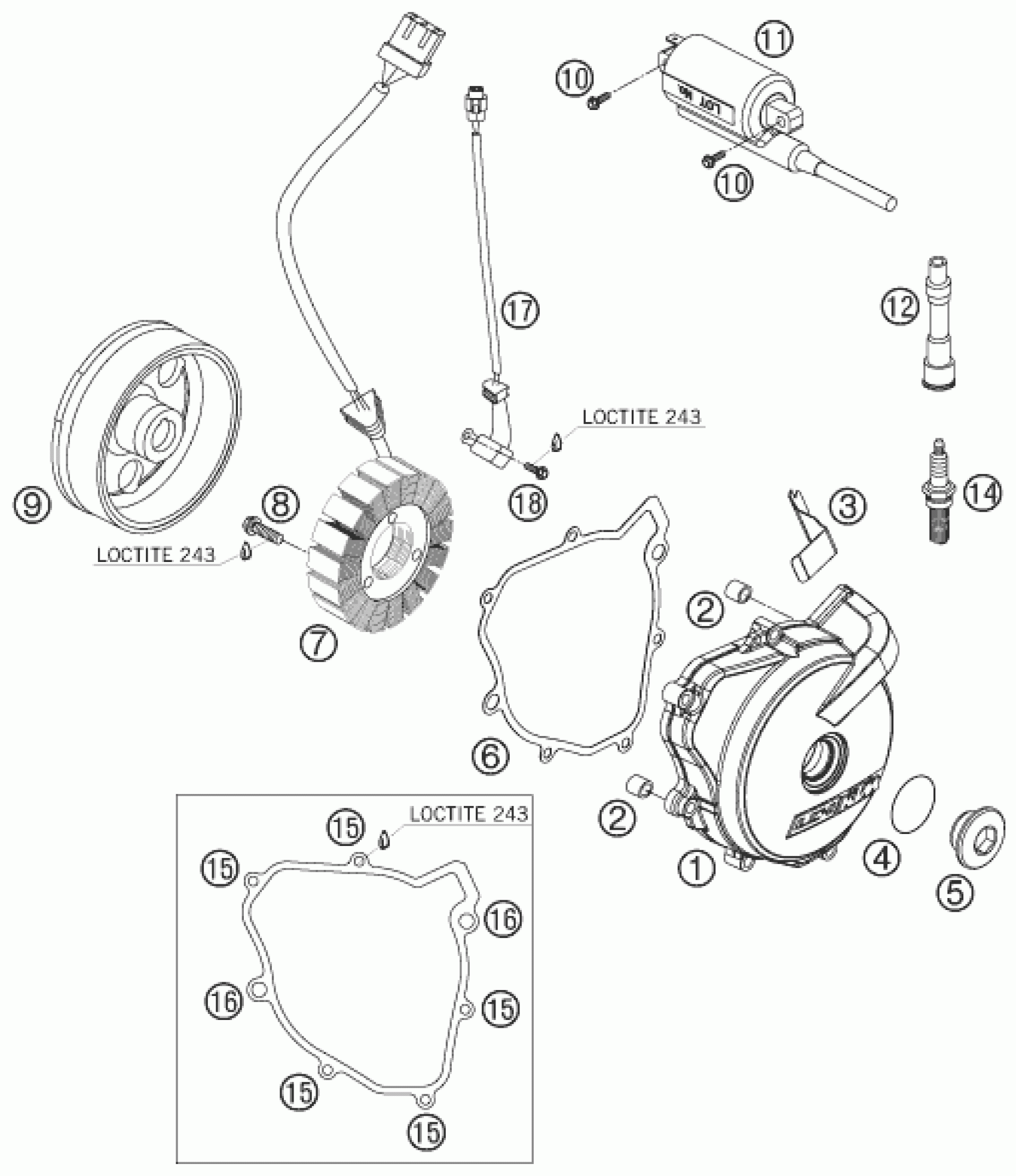

KTM 690 RALLY FACTORY REPLICA 2009 IGNITION SYSTEM Diagram

#

Description
Price

1

IGNITION COVER 07

75030002000

Unavailable

2

DOWEL 9,8 X 7 X 10

49030090000

Unavailable

3

generator line bracket

60039040020

Unavailable

4

o-ring 24.00x2.50 Viton

07700240251

Unavailable

5

threaded plug M24x1.5 PA 6.6

6003009400030

Unavailable

6

IGNITI.COVER GASKET 07

75030040000

Unavailable

7

STATOR

75039004000

Unavailable

8

HH collar screw M6x30 TX30

0025060306

Unavailable

9

FLYWHEEL

76239005000

Unavailable

10

HH collar screw M5x16 TX30

0025050166

Unavailable

11

IGNITIONCOIL ''IG5128''

59039006000

Unavailable

12

SPARK PLUG CONNECT.

75039090000

Unavailable

14

SPARK PLUG M12X1,25 LKAR8AI-9

75039093000

Unavailable

15

HH collar screw M6x25 TX30

0025060256

Unavailable

16

HH collar screw M6x30 TX30

0025060306

Unavailable

17

PULSER COIL

75039034000

Unavailable

18

SPECIAL SCREW M6X16 WS=8 10.9

59009062016

Unavailable
