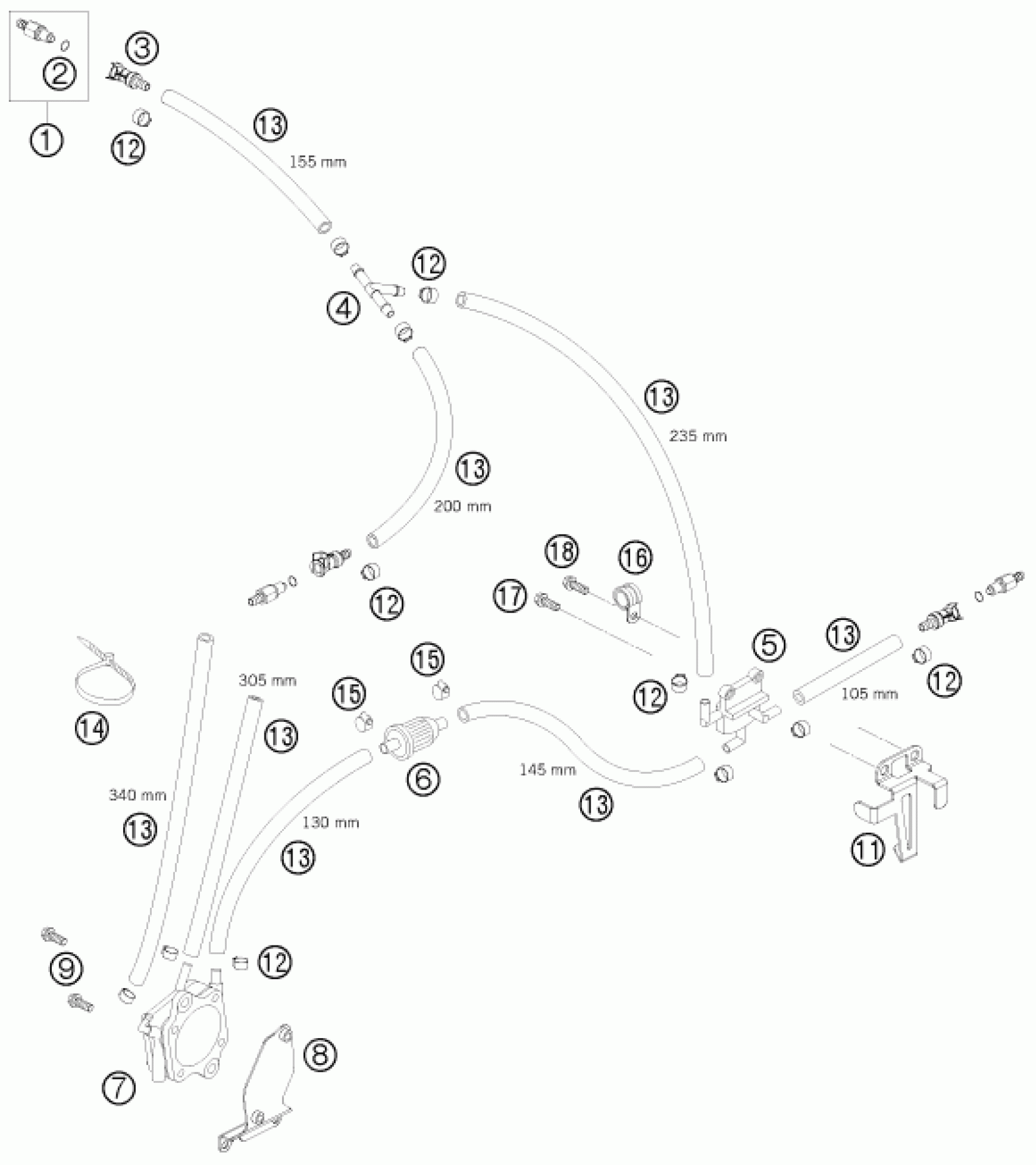

KTM 690 RALLY FACTORY REPLICA 2009 FUEL PUMP Diagram

#

Description
Price

1

PLUG F. FUEL HOSE CPC 2003

58507010300

Unavailable

2

O-ring VITON f. plug CPC 0

58507012000

Unavailable

4

T-CONNECTOR FOR FUEL LINE

58007015000

Unavailable

3

CLUTCH F. FUEL HOSE CPC 03

58507010500

Unavailable

5

COLLECTOR FUEL TAP RALLYE 2001

58507003100

Unavailable

6

FUEL FILTER ELEMENT RALLY

76207099050

Unavailable

7

FUEL PUMP MIKUNI DF52-601 01

58512087000

Unavailable

8

PLATE FOR FUEL PUMP CPL.

76207013011

Unavailable

9

HH collar screw M6x12 TX30

0025060126

Unavailable

11

LOCK PLATE COLLECTOR FUEL TAP

76207003050

Unavailable

12

OETIKER HOSE CLAMP 13,3MM

58007117200

Unavailable

13

HOSE OG.ECO 1TBSE 7X13MM

58507116100

Unavailable

14

Cable tie 200/4.6mm black

44011076200

Unavailable

15

CLAMP MINI 1

42013037000

Unavailable

16

BRAKE CABLE CLAMP RSGU 9/12

45001070000

Unavailable

17

HH collar screw M6x16 TX30

0025060166

Unavailable

18

HH collar screw M6x20 TX30

0025060206

Unavailable
