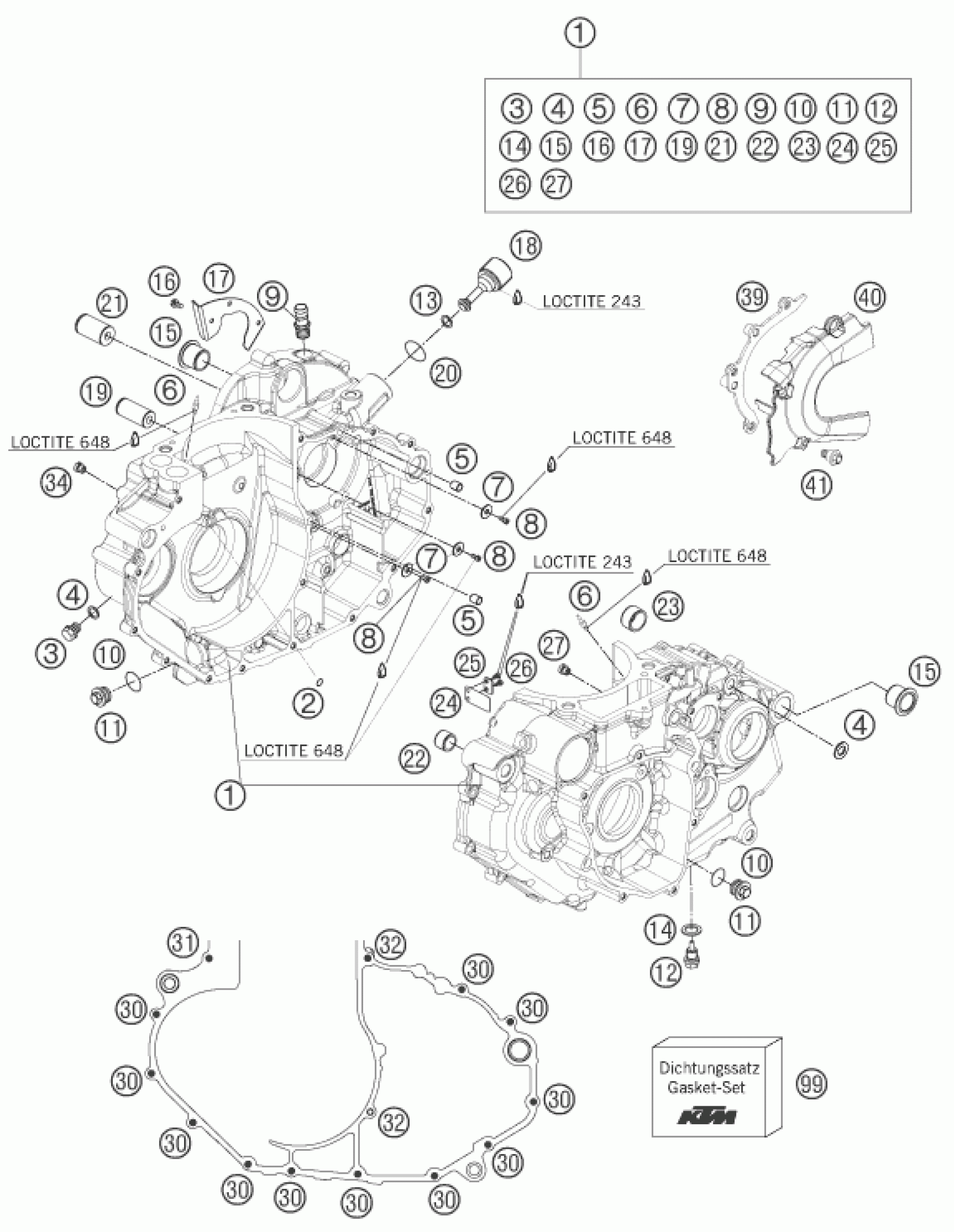

KTM 690 RALLY FACTORY REPLICA 2009 ENGINE CASE Diagram

#

Description
Price

1

ENGINE CASE CPL.W.BEAR LC4 07

75030000133

Unavailable

2

O-RING 6,07X1,78 FPM75

0770060018

Unavailable

3

PLUG DIN0910-M 10X1

0910100003

Unavailable

4

sealing ring DIN 7603 10x14x1

0603100141

Unavailable

5

dowel sleeve 6x8x11.5

59030023000

Unavailable

6

OIL JET 70 M6X0,75 WS8 03

60030064070

Unavailable

7

washer DIN 9021 A - 5.3

0021050003

Unavailable

8

FLAT HEAD SCREW ISO7380 M5X10

073800501001

Unavailable

9

VENTILATION CONNECTOR M16X1,5

60030022000

Unavailable

10

o-ring 18.00x2.00 NBR70

0770180020

Unavailable

11

PLUG M20X1,5 WS=13

59038017000

Unavailable

12

OILDRAIN PLUG W.MAG. M 12X1,5

58030021000

Unavailable

13

SEAL RING 8 X 12 X 2

58038032100

Unavailable

14

CU-seal ring DIN7603-12X18X1.5

58038022000

Unavailable

15

CASE BUSH

75030010000

Unavailable

16

AH SCREW DIN7984 M5X10 A2

07984050100

Unavailable

17

COVER

75030042000

Unavailable

18

LOCK PIECE 07

76238048000

Unavailable

19

BUSHING PIN

54633018400

Unavailable

20

o-ring 18.00x2.00 NBR70

0770180020

Unavailable

21

BUSHING PIN

59040028000

Unavailable

22

DOWEL 17 X 13 X 12

51030026100

Unavailable

23

DOWEL 21X12 03

54830027000

Unavailable

24

MEMBRANE 07

75030003051

Unavailable

25

STOP SHEET MEMBRANE 07

75030003050

Unavailable

26

CYLIND.SCREW M3X8 ISO 14580 SS

0458030080

Unavailable

27

MAIN JET 200

57031523200

Unavailable

30

HH collar screw M6x30 TX30

0025060306

Unavailable

31

HH collar screw M6x25 TX30

0025060256

Unavailable

32

HH COLLAR SCREW M6X70 TX30

0025060706

Unavailable

34

JET 125

75030058000

Unavailable

39

SECURING GUIDE 07

75030047000

Unavailable

40

CHAIN GUARD CPL.

76230060033

Unavailable

41

SPECIAL SCREW M6X12,5 WS=8

59001092050

Unavailable

99

GASKET SET LC4 2007

75030099000

Unavailable
