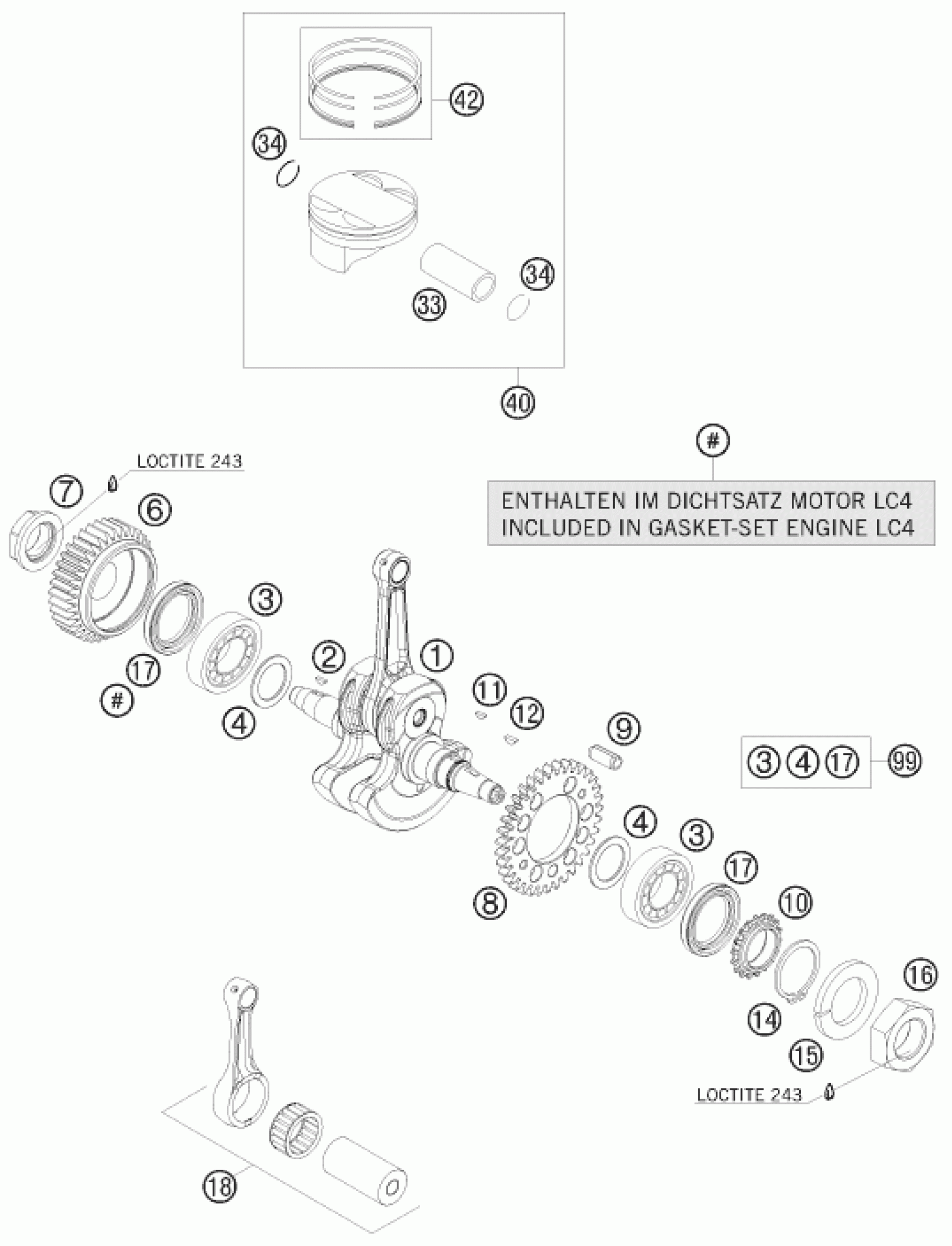

KTM 690 RALLY FACTORY REPLICA 2009 CRANKSHAFT, PISTON Diagram

#

Description
Price

3

CYL.ROLLER BEARING NJ207 ECPC4

75030018150

Unavailable

4

SHIM WASHER 36X48X0,10

56530081000

Unavailable

4

SHIM WASHER 36X48X0,15

56530081100

Unavailable

4

SHIM WASHER 36X48X0,20 STEEL

56530081200

Unavailable

4

SHIM WASHER 36X48X0,30

56530081300

Unavailable

6

PRIMARY GEAR 36 T 07

75032000002

Unavailable

7

NUT FOR PRIMARY GEAR

75030029100

Unavailable

8

DRIVE WHEEL BALANCER SHAFT 07

75030055000

Unavailable

9

TENSION PIN ISO13337 8X30

0749080300

Unavailable

10

TIMING PULLEY 07

75036014000

Unavailable

11

WOODRUFF KEY DIN6888-3X5X13

0888030050

Unavailable

12

WOODRUFF KEY 5X6,5 HARDED

6946005

Unavailable

14

CIRCLIP DIN0471-30X1,5 NIRO

0471300151

Unavailable

15

LOCK WASHER VSK 18

58132072000

Unavailable

16

HEXAGON NUT DIN0936-M18X1,5 R.

0936181505

Unavailable

17

SHAFT SEAL R.35X50X7B VITON

0760355070

Unavailable

18

CONNECT. ROD REPAIR SET LC4 08

75030015144

Unavailable

33

PISTON PIN 20mm

75030833000

Unavailable

34

CIRCLIP

77630074000

Unavailable

40

PISTON CPL. I 08

75030007200 I

Unavailable

40

PISTON CPL. II 08

75030007200 II

Unavailable

42

PISTONRING SET LC4 07

75030031044

Unavailable

1

CRANKSHAFT CPL

75030018100

Unavailable

2

woodruff key DIN 6888 4x5x13

0888040050

Unavailable

99

CRANKSHAFT REP. KIT 690

00050002305

Unavailable
