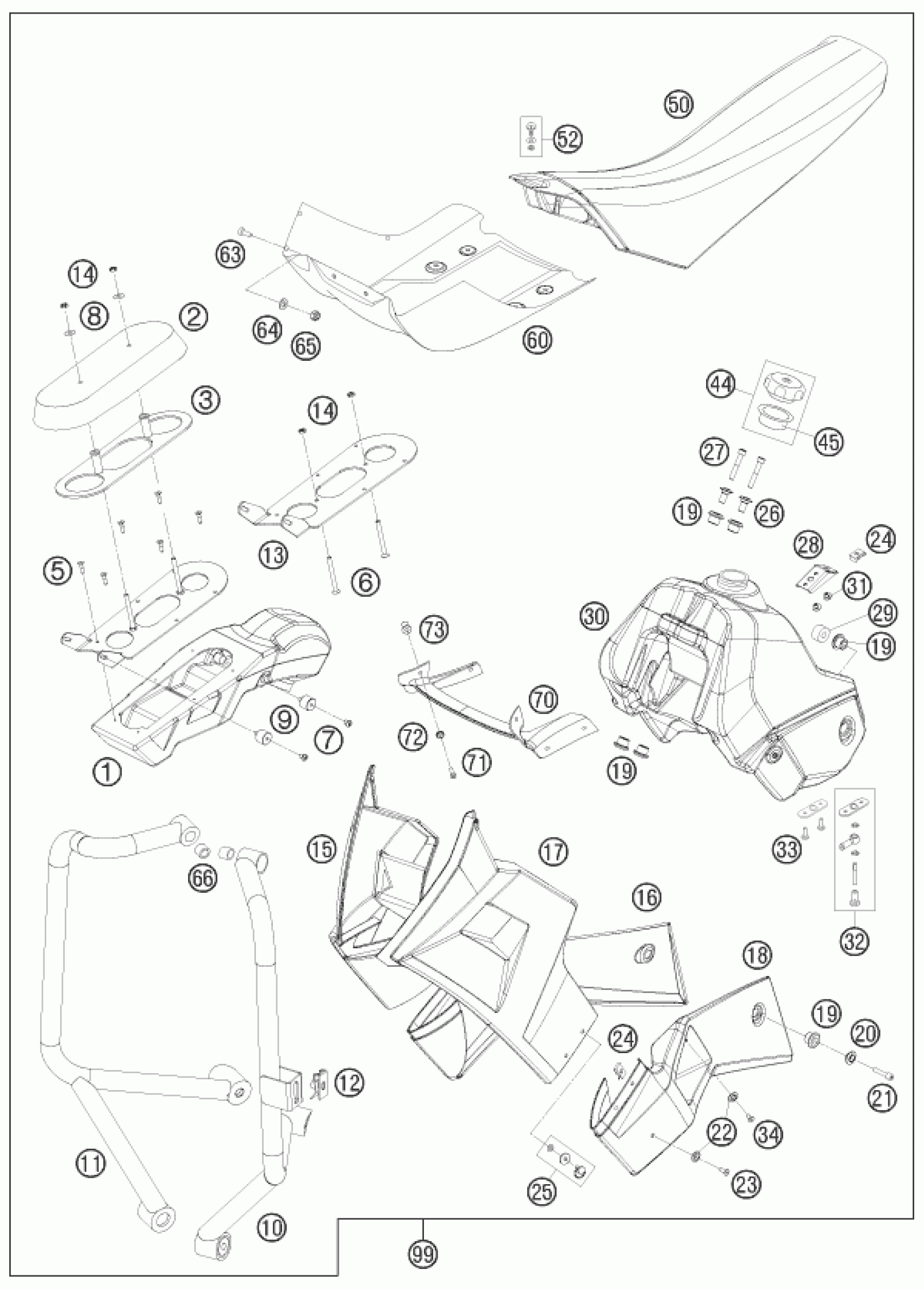

KTM 690 RALLY FACTORY REPLICA 2009 CONVERSION KIT Diagram

#

Description
Price

29

DISTANCE PIECE FOR FUEL TANK

76207020000

Unavailable

63

LINTIL HEAD SCREW M5X12 AH 02

58512099365

Unavailable

64

WASHER DIN0125-A 5,3

0125050003

Unavailable

65

Self locking nut DIN 985 M5

0985050003

Unavailable

60

ENGINE GUARD

76212099140

Unavailable

1

AIRBOX RALLY-LIGHT

76206001100

Unavailable

2

AIR FILTER TWIN AIR 01

58506015000

Unavailable

3

FILTER CARRIER

58506001000

Unavailable

5

FLAT HEAD S. DIN7991 M5X16-8.8

0991050162

Unavailable

6

HH SCREW DIN0933-M 5X60

0933050603

Unavailable

7

Oval head screw ISO 7380 M 6X8

0902060083

Unavailable

8

washer DIN 9021 A - 5.3

0021050003

Unavailable

9

RUBBER GROMMET 20X15-M6X15-M6

76206012000

Unavailable

10

ROLL BAR L/S CPL.

76203007100

Unavailable

13

AIRBOX PLATE RALLY LIGHT

76206001151

Unavailable

11

ROLL BAR R/S CPL.

76203008100

Unavailable

12

clip nut M6

54603048100

Unavailable

14

Self locking nut DIN 985 M5

0985050003

Unavailable

15

MASK R/S TOP

76208042000

Unavailable

16

MASK R/S BOTTOM

76208040000

Unavailable

17

MASK L/S TOP

76208041000

Unavailable

18

MASK L/S BOTTOM

76208040050

Unavailable

19

rubber bushing

56401040000

Unavailable

20

BUSHING SLEEVE OUT 2001

58512062000

Unavailable

21

AH collar screw DIN0912 M8x40

0912080403

Unavailable

22

SPECIAL WASHER 7X12,5X20 BLACK

58308045000

Unavailable

23

FLAT HEAD SCR. DIN7991-M 6X16

0991060163

Unavailable

34

FLAT HEAD SCREW DIN7991 M6x12

0991060123

Unavailable

24

Clip

45007040052

Unavailable

72

SPECIAL WASHER D=12MM 03

60008046000

Unavailable

73

blind plug nut M5 WN16A

60008008050

Unavailable

99

RALLY LIGHT MODIFICATION-KIT

76212045000

Unavailable

25

Quick lock

45007040051

Unavailable

26

BEARING BUSHING OUTSIDE 03

60007060000

Unavailable

27

AH collar screw DIN0912 M8x40

0912080403

Unavailable

28

MOUNTING PLATE F. SEAT

76207046100

Unavailable

30

FUEL TANK RALLY-LIGHT

76207013100

Unavailable

31

HH COLLAR SCREW M6X10 TX30

0024060106

Unavailable

32

FUEL CONNECTION CPL. 01

58507008000

Unavailable

33

Flat head screw DIN7991 M5X10

0991050102

Unavailable

66

BUSHING 6,5X11,2X10

58011039100

Unavailable

70

AIR BAFFLE

76211104020

Unavailable

44

FILLER CAP CPL. SMALL

49007008044

Unavailable

45

GASKET FOR FILLER CAP HIGH

59007009000

Unavailable

71

O.H.SCREW DIN0966-M 5X20 BLACK

0966050208

Unavailable

50

SEAT RALLY-LIGHT

76207040100

Unavailable

52

QUICK RELEASE CPL. '96

58307040551

Unavailable
