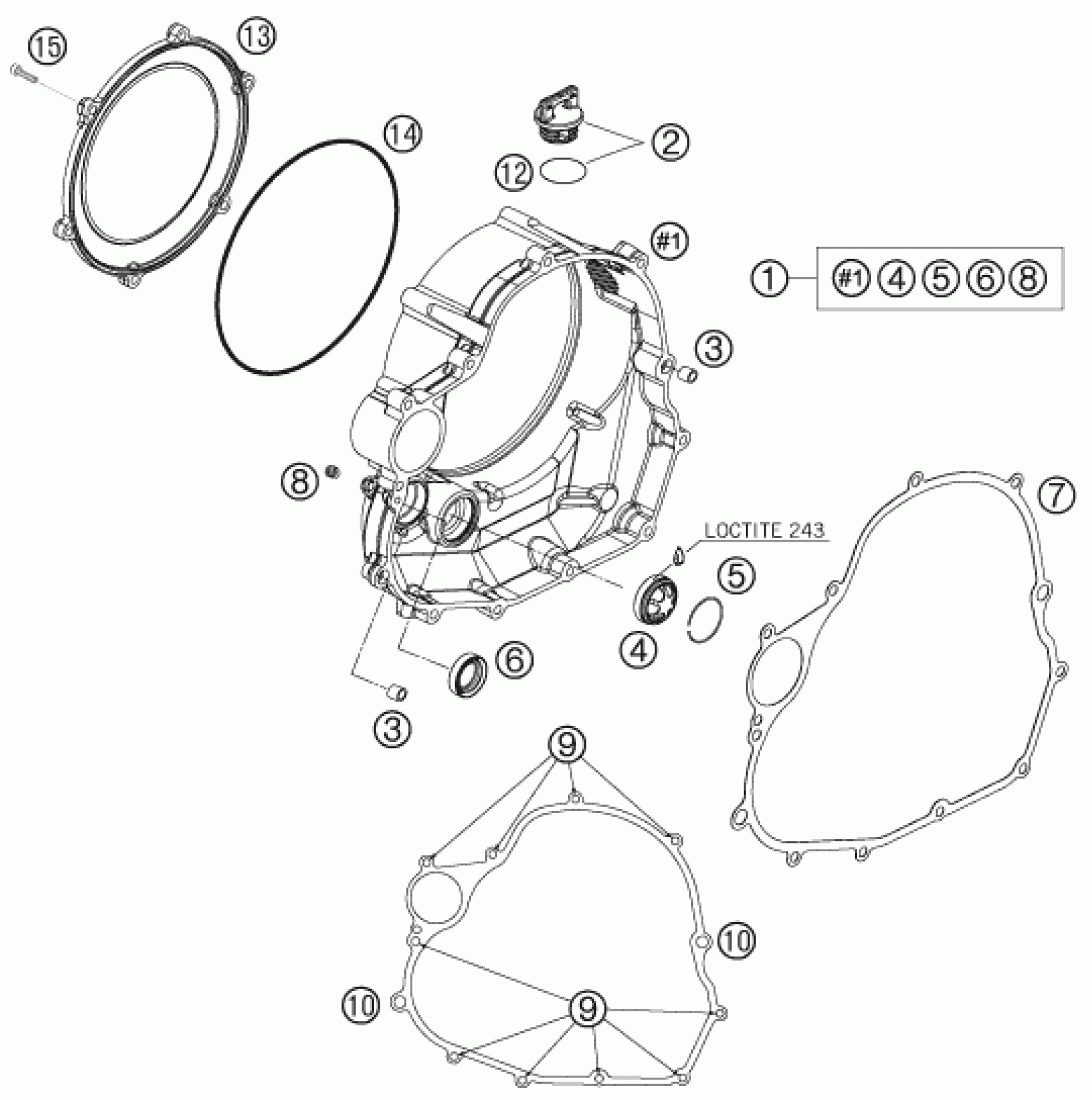

KTM 690 RALLY FACTORY REPLICA 2009 CLUTCH COVER Diagram

#

Description

Price

1

CLUTCH COVER CPL. 07

76230001044

Unavailable

2

oil plug cpl. M24x3

58030020100

Unavailable

3

DOWEL 9,8 X 7 X 10

49030090000

Unavailable

4

OIL LEVEL GLASS G 1777 Y

59030019000

Unavailable

5

CIRCLIP OIL LEVEL GLASS 03

61030019050

Unavailable

6

SHAFT SEAL RING 17X28X7B VITON

0760172871

Unavailable

7

CLUTCH CASE GASKET 07

75030025000

Unavailable

8

PLUG 00

59030196000

Unavailable

9

HH collar screw M6x25 TX30

0025060256

Unavailable

10

HH collar screw M6x30 TX30

0025060306

Unavailable

12

O-RING 19,00X3,00 NBR

0770191015

Unavailable

13

OUTER CLUTCH COVER

76230026000

Unavailable

14

O-RING 170X2,4

0770170024

Unavailable

15

AH SCREW DIN6912-M 6X16

0984060163

Unavailable
