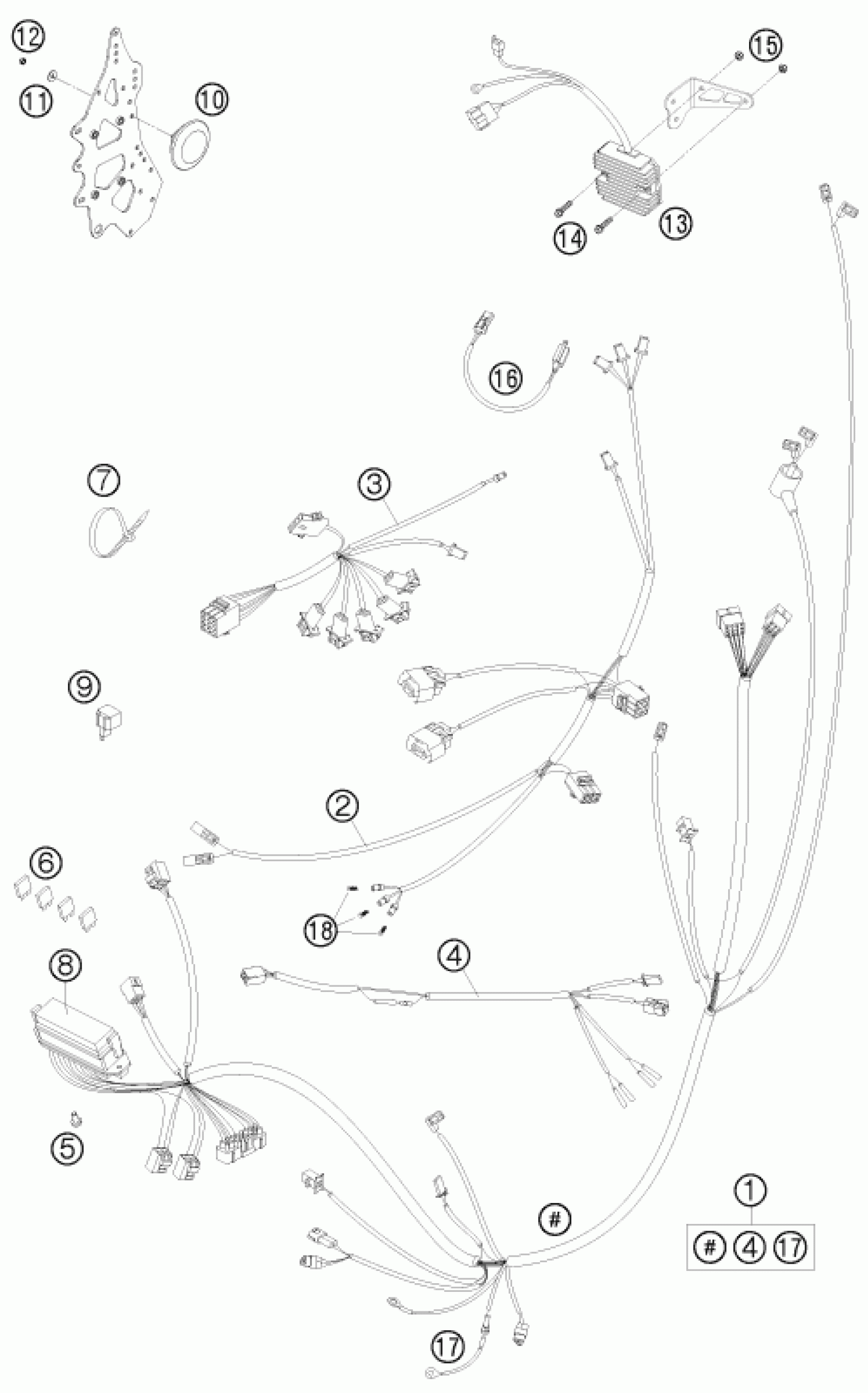

KTM 690 RALLY FACTORY REPLICA 2007 WIRING HARNESS Diagram

#

Description
Price

1

MAIN WIRING HARNESS 07

76211075000

Unavailable

7

Cable tie 200/4.6mm black

44011076200

Unavailable

7

CABLE TIE 300/4,8MM BLACK

44011076305

Unavailable

6

Plug-in fuse, big 10A

58011109110

Unavailable

6

FUSE 15 A

58011109115

Unavailable

6

Plug-in fuse, big 20A

58011109120

Unavailable

7

CABLE TIE 100/2,5MM BLACK

44011076100

Unavailable

4

WIRING HARNESS REAR 07

76211075050

Unavailable

10

DC HORN L.E.B. 03

50311060100

$32.44

11

washer DIN 9021 A - 5.3

0021050003

$1.49

13

VOLTAGE REGULATOR LC8 03

60011034000

$160.34

5

OVAL HEAD SCR. DIN7985-M 5X10

0985050103

$1.49

6

FUSE 5 A 2003

58011109105

Unavailable

8

FUSE-BOX COVER

58511075510

$12.61

12

Self locking nut DIN 985 M5

0985050003

$2.05

2

WIRING HARNESS LIGHT 07

76211077000

Unavailable

3

WIRING HARNESS INSTRUMENTS 07

76211078000

Unavailable

9

FLASHER UNIT 97

44611207200

$49.83

14

HH COLLAR SCREW M 6X30 SW=8

0015060303

$3.08

15

Self lock. nut DIN985-M6-A2

0985060003

$2.05

16

ADAPT.CABLE SPEEDOM.LIGHTING

76211077050

Unavailable

18

BULB 12V 2,3W (W2X4,6D)

49111425200

$2.05

17

CABLE F. TEMP. SWITCH

58511080000

Unavailable
