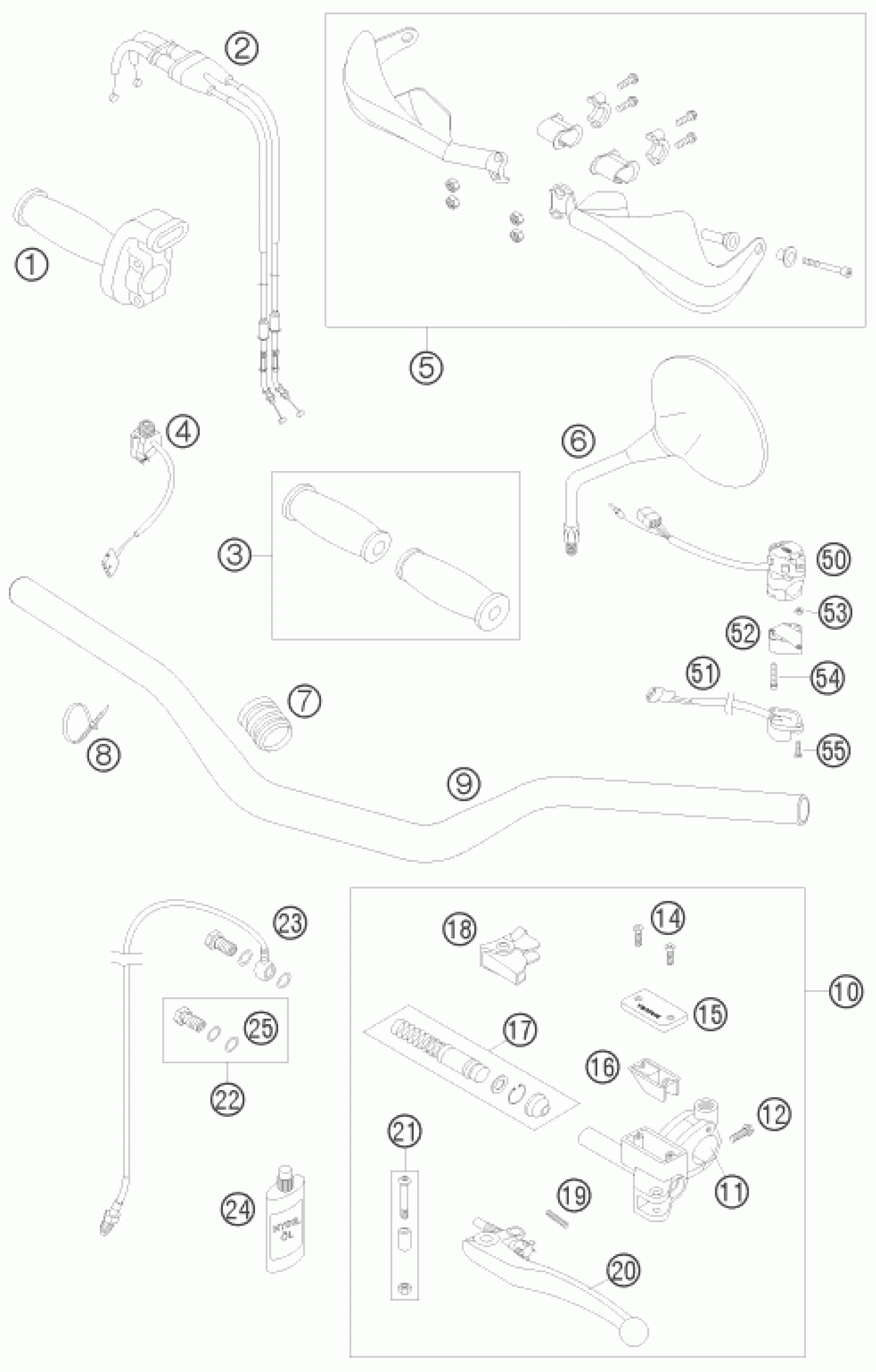

KTM 690 RALLY FACTORY REPLICA 2007 HANDLEBAR, CONTROLS Diagram

THROTTLE GRIP 02

58502010000

Unavailable

THR.CABLE''OPEN-CLOSE''KEIHIN

59002091300

$76.76

STARTER BUTTON 06

63011074000

$37.48

HANDGUARD L/S+R/S CPL.BLCK

6000207910030

$64.59

Rear view mirror, left/right

58412040100

$65.63

RUBBER SLEEVE D=21MM/23MM '93

54605057000

$20.66

COPPER GASKET

59413013050

$6.63

H.LIGHT SWITCH CEV 2/4TAKT '98

50311070000

$64.69

FLASHER SWITCH CEV '98

50311029000

$51.98

ADAPTER FOR FLASHER SWITCH '98

13011070060

$5.23

HEXAGON NUT DIN0934-M 4

0934040003

$1.49

CYL.HEAD SCREW DIN0084-M 4X22A

0084040223

$1.49

FLAT HEAD SCREW DIN7985-M 4X16

0985040163

$2.05

Cable tie 200/4.6mm black

44011076200

$1.49

HANDLEBAR 28MM HIGH 2000

59002001000

$175.68

MASTER CYLINDER CPL. 11MM 07

75002030000

$361.93

CLAMP MIRROR WITH CLAMP

60002044000

$53.38

HH COLLAR SCREW M 6X20 WS=8

0015060203

$3.08

FLAT HEAD SCREW DIN0965-M 4X12

0965040123

$1.49

COVER FOR HYDR. CLUTCH '98

50302033000

$26.83

RUBBER FOR RESERVOIR '98

50302034000

$18.97

REP.SET PISTON 11MM 07

75002032000

$66.00

PROTECT.CAP FOR LEVER PERCH'98

50302037000

$19.07

SPRING FOR CLUTCH LEVER 03

59002035000

$4.11

CLUTCH LEVER LONG CPL. 2003

60002031000

$64.69

HOLLOW SCREW + COPPER GASKET

59032062000

$25.05

CLUTCH PIPE RACING 2003

59032063100

$103.03

OIL FOR HYD. CLUTCH 100 ML

50302036200

$19.91

RUBBER GR. PRO GRIP 06

58502139044

$22.34

LEVER SCREW CPL. 125-200 '98

50302038000

$23.46
