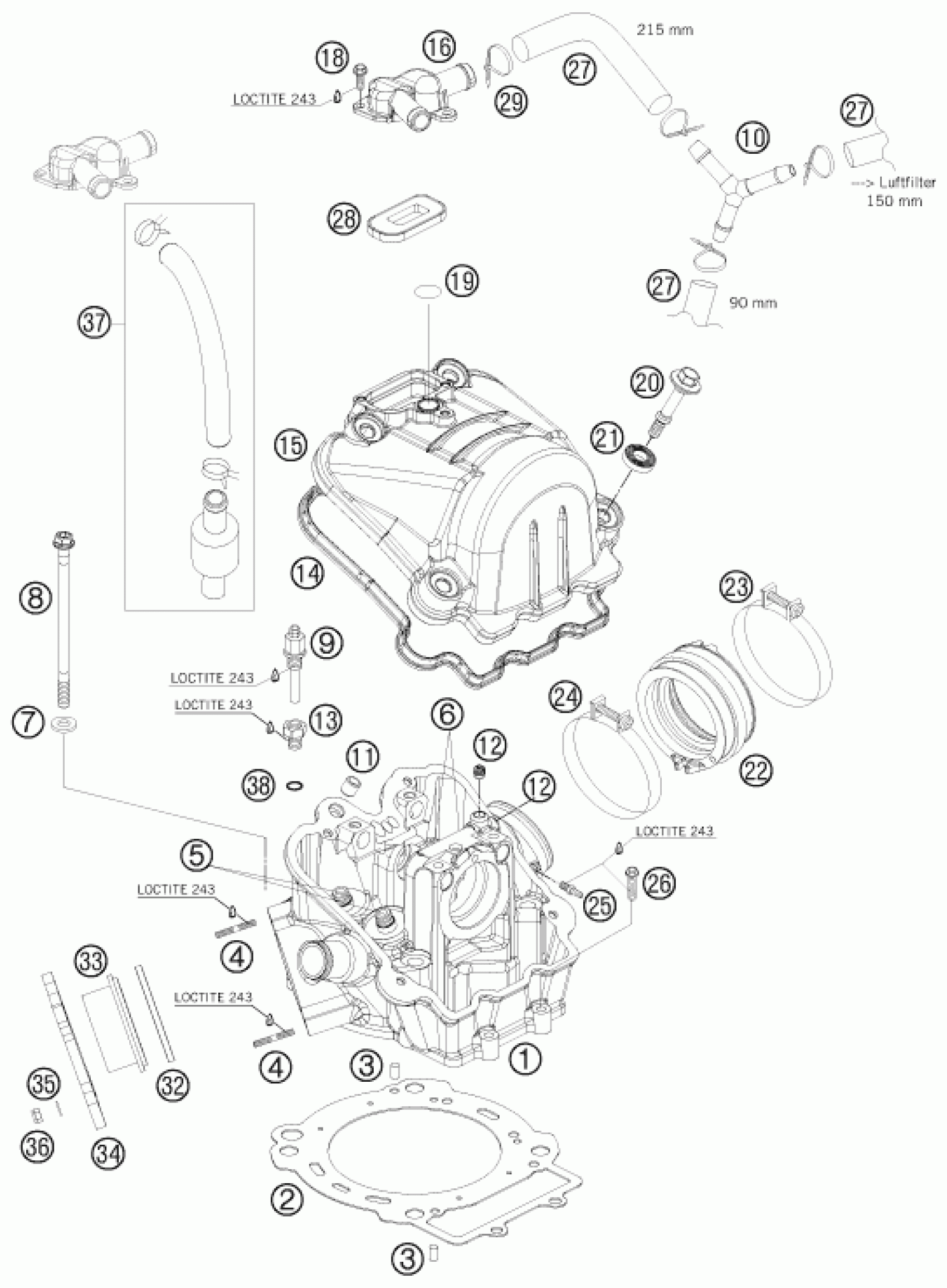

KTM 690 RALLY FACTORY REPLICA 2007 CYLINDER HEAD Diagram

CYLINDER HEAD CPL. 05

75036020000

$698.25

CYLINDER HEAD GASKET 07

75030036000

$48.70

GROOVED PIN DIN1474 5X8

0474050080

$1.49

STUD DIN0835-M 8X25 10.9

0835080256

$3.08

VALVE GIUDE OUTLET '05

60036026100

$29.07

VALVE GIUDE OUTLET '05

60036025100

$11.40

SHIM 10,2X19X1,5MM 05

60036078050

$3.08

CYLINDERHEAD SCREW M10X168WS14

75036079000

$9.34

TEMPERATURE SWITCH VDO

42011252000

$84.53

DOWEL 9,8 X 7 X 10

49030090000

$2.05

SCREW PLUG

59030296000

$6.26

ADAPTER FOR TEMPERATURE SWITCH

76236037000

Unavailable

VALVE COVER GASKET 07

75036053000

$19.91

VALVE COVER 07

75036052000

$61.14

BREATHER COVER 07

75036052050

$10.09

CYLIND. SCR. DIN6912 M5X10 8.8

0984050103S

$1.49

O-RING 15,00X1,50 VITON

0770150151

$3.08

valve mechanism cover screw

75036055000

$4.11

decoupling element

75036052010

$4.11

INTAKE BOOT 07

75036045000

Unavailable

HOSE CLAMP 40-60MM

46005058000

$5.23

VACUUM CONNECTION M 6X1

58336020090

$6.63

HH COLLAR SCREW M 6X20 WS=8

0015060203

$3.08

SAS Reed Valve

60005026000

$21.50

CABLE TIE 100/2,5MM BLACK

44011076100

$1.49

HOSE CLAMP 50-70MM

51006027000

$6.07

UNION FLANGE

76205007052

Unavailable

Exhaust gasket 05

61005005000

$10.00

EXHAUST FLANGE

76205007051

Unavailable

washer DIN 125 A -8.4

0125080003

$1.49

self-locking nut M8 Cu

51010086100

$3.08

RADIATOR HOSE(REENFORCED)12X

58335025001

Unavailable

BREATHER CYLINDER HEAD

76236024000

Unavailable

Y-CONNECTOR 12/12/12

76230080000

Unavailable

o-ring 10.00x2.00 silicone

0770100020

$2.05
