Description

Price

15

NUT F.TANK BRAKET REAR

60512063050

$26.55

13

AIR FILTER BOX PLATE

76206001051

Unavailable

14

Self locking nut DIN 985 M5

0985050003

$2.05

1

AIR FILTER BOX

76206004000

Unavailable

2

AIR FILTER TWIN AIR 01

58506015000

$40.71

3

FILTER CARRIER

58506001000

Unavailable

4

AIR FILTER RESTRICTOR 01

58506001052

$15.68

5

FLAT HEAD S. DIN7991 M5X16-8.8

0991050162

$1.49

6

HH SCREW DIN0933-M 5X60

0933050603

Unavailable

8

washer DIN 9021 A - 5.3

0021050003

$1.49

9

RUBBER GROMMET 20X15-M6X15-M6

76206012000

Unavailable

10

INTAKE TUBE 07

76206040000

Unavailable

11

HOSE CLAMP 70-90MM

58506027000

$3.08

12

HOSE CLAMP 40-60MM

46005058000

$5.23

16

ALU FLANGE

76206050000

$69.18

7

Oval head screw ISO 7380 M 6X8

0902060083

$1.49

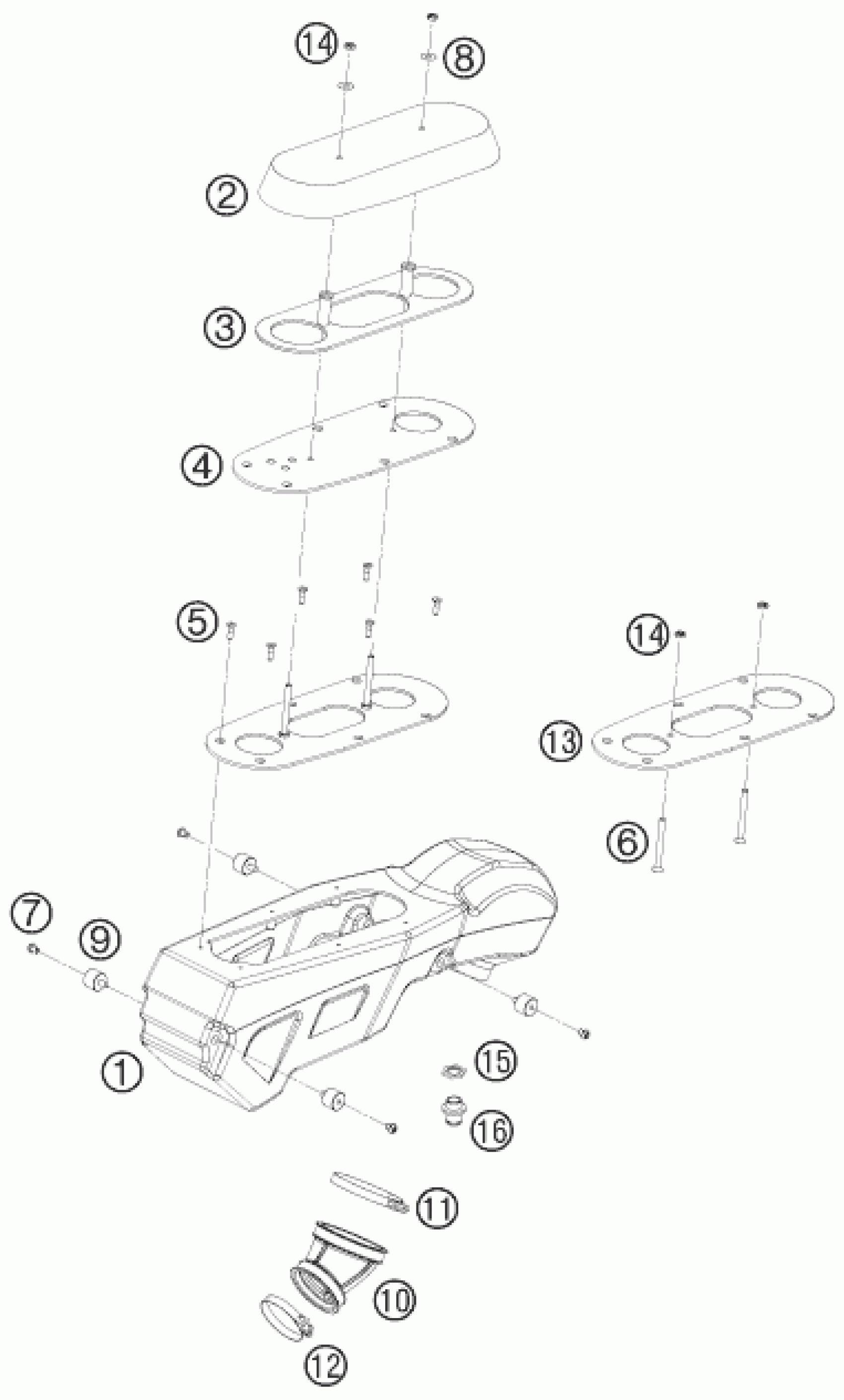

KTM 690 RALLY FACTORY REPLICA 2007 AIR FILTER Diagram

NUT F.TANK BRAKET REAR

AIR FILTER BOX PLATE

Self locking nut DIN 985 M5

AIR FILTER BOX

AIR FILTER TWIN AIR 01

FILTER CARRIER

AIR FILTER RESTRICTOR 01

FLAT HEAD S. DIN7991 M5X16-8.8

HH SCREW DIN0933-M 5X60

washer DIN 9021 A - 5.3

RUBBER GROMMET 20X15-M6X15-M6

INTAKE TUBE 07

HOSE CLAMP 70-90MM

HOSE CLAMP 40-60MM

ALU FLANGE

Oval head screw ISO 7380 M 6X8
