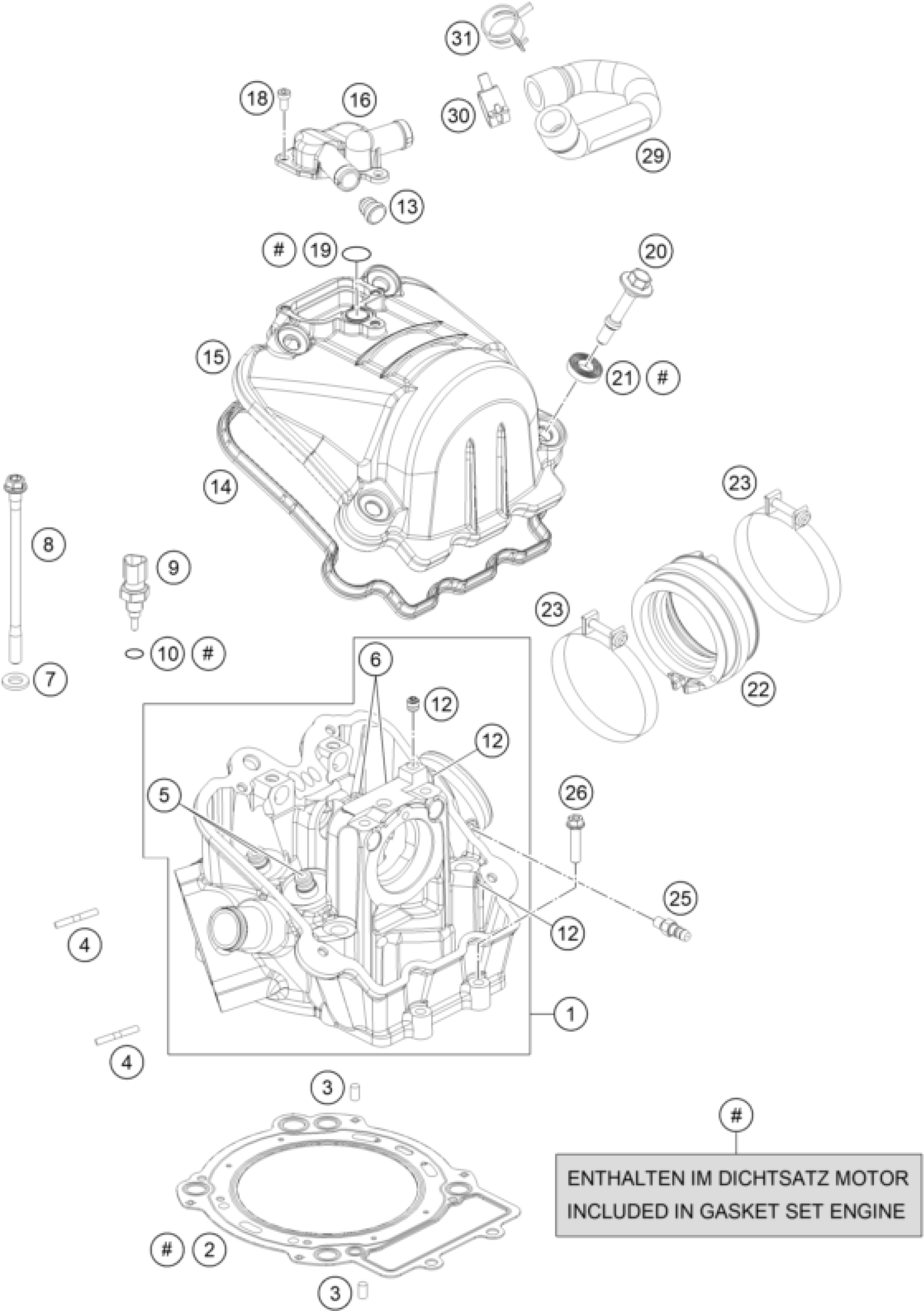

KTM 690 ENDURO R ABS 2016 CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER HEAD CPL.

7603602004452

Unavailable

2

CYLINDER HEAD GASKET

76030036000

Unavailable

3

GROOVED PIN DIN1474 5X10

0474050100

Unavailable

21

decoupling element

75036052010

Unavailable

4

STUD DIN0835-M 8X25 10.9

0835080256

Unavailable

5

VALVE GIUDE EXHAUST

60036026101

Unavailable

6

VALVE GIUDE INTAKE

60036025101

Unavailable

7

SHIM 10,2X19X1,5MM 05

60036078050

Unavailable

8

CYLINDERHEAD SCREW M10X168WS14

75036079000

Unavailable

9

TEMPERATURE SENSOR WATER 07

75035047000

Unavailable

10

o-ring 10.00x2.00 silicone

0770100020

Unavailable

12

SCREW PLUG

59030296000

Unavailable

13

SEALING PLUG

76036052051

Unavailable

14

VALVE COVER GASKET 07

75036053000

Unavailable

15

VALVE COVER 07

75036052000

Unavailable

16

BREATHER COVER 07

75036052050

Unavailable

18

HH collar screw M5x10 TX30

0025050106

Unavailable

19

O-RING 15,00X1,50 VITON

0770150151

Unavailable

20

valve mechanism cover screw

75036055000

Unavailable

22

RUBBER SLEEVE INTAKE FLANGE

75036144000

Unavailable

23

HOSE CLAMP GEMI 70MM

75036047000

Unavailable

25

VACUUM CONNECTION M6/0.75MM

60036023200

Unavailable

26

HH collar screw M6x25 TX30

0025060256

Unavailable

29

PREFORMED HOSE OIL STRAINER

76530088100

Unavailable

30

CLAMP STD DN20

00049200121

Unavailable

31

CLAMP 21X12 STD-DES

00049210121

Unavailable
