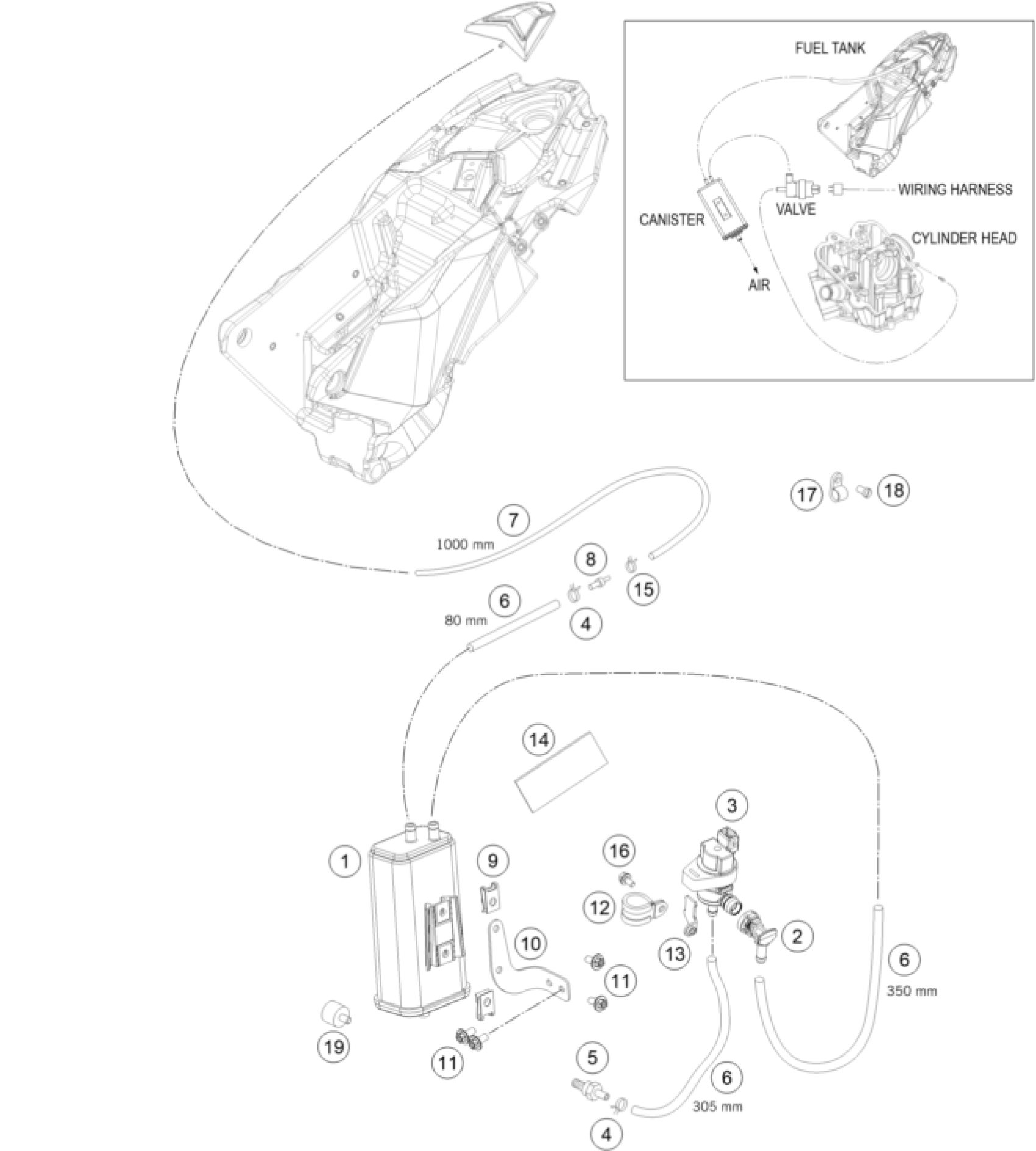

KTM 690 ENDURO R ABS 2015 EVAPORATIVE CANISTER Diagram

#

Description
Price

1

EVAPORATIVE CANISTER 09

75015001100

Unavailable

2

FITTING PIECE NQV2 NW7 90°

61115016000

Unavailable

3

VALVE FOR CARBON CANISTER 07

61115015000

Unavailable

4

YDNAC-clamp 10101 (10.4MM)

58007017000

Unavailable

5

VACUUM CONECTION M6/0,5MM

60036023100

Unavailable

6

HOSE EPA D=6/10 L=2000MM

78015019000

Unavailable

7

HOSE EPA D=4/8 L=2000MM

78015021000

Unavailable

8

REDUCTION CONNECTION GRS6-4

75015023000

Unavailable

9

clip nut M6

54603048100

Unavailable

10

BRACKET EVAPORATE KANISTER

76515202000

Unavailable

11

HH collar screw M6x13 TX30

0024060136

Unavailable

12

CLAMP RSGU 18/15 03

59007439000

Unavailable

13

RETAINING PLATE VALVE EC

76515032000

Unavailable

14

METAMOLL 90X45X3MM 03

59003001099

Unavailable

15

YDNAC-CLAMP FUEL HOSE (8MM)

45031005000

Unavailable

16

HH collar screw M5x10 TX30

0025050106

Unavailable

17

PVC-CLAMP 7,9 MM HEYCO 3355

57013070100

Unavailable

18

CYL.HEAD SCREW DIN0084-M 4X8 A

0084040083

Unavailable

19

silentbloc 20x15-M6x10-(1)

43205062100

Unavailable
