Description

Price

1

HANDLEBAR D=28MM

5480210120017

$151.84

2

THROTTLE GRIP E-GAS

76502110000

$40.85

3

GRIP SET DUAL COMPOUND

63002021200

$27.01

4

LIGHT SWITCH L/S 08

76511070000

$110.04

6

START-STOP/E-GAS

76011073100

$347.34

7

SUPPORT FOR MIRROR LC4 '98

58412040050

$20.19

5

HANDGUARD CLOSED BLACK HIGH

6030217910030

$64.59

8

REVIEW MIRROR L/S

76512040000

$42.53

22

CLUTCH SWITCH ATV

83111049000

$106.49

9

REVIEW MIRROR R/S

76512041000

$42.53

10

MASTER CYLINDER MAGURA D=11MM

76502013000

$361.93

11

CLAMP, CYL. PIN, O-RING

76513005000

$69.65

12

HH collar screw M6x20 TX30

0025060206

$3.08

13

PLASTIC COVER- SET

76502033144

$32.81

14

PUSH ROD CPL. 13

76502046000

$31.78

15

RUBBER FOR RESERVOIR 09

50302034100

$19.16

16

REP. KIT PISTON 11MM 13

76502032000

$112.28

17

PROTECT.CAP FOR LEVER PERCH 13

76502037000

$36.74

18

CLUTCH LEVER CPL. LONG 13

76502031000

$115.28

19

LEVER SCREW SHORT CPL. 09

50302038200

$22.90

20

CLUTCH PIPE 250/300 2003

54732063100

$101.63

21

OIL FOR HYD. CLUTCH 100 ML

50302036200

$19.91

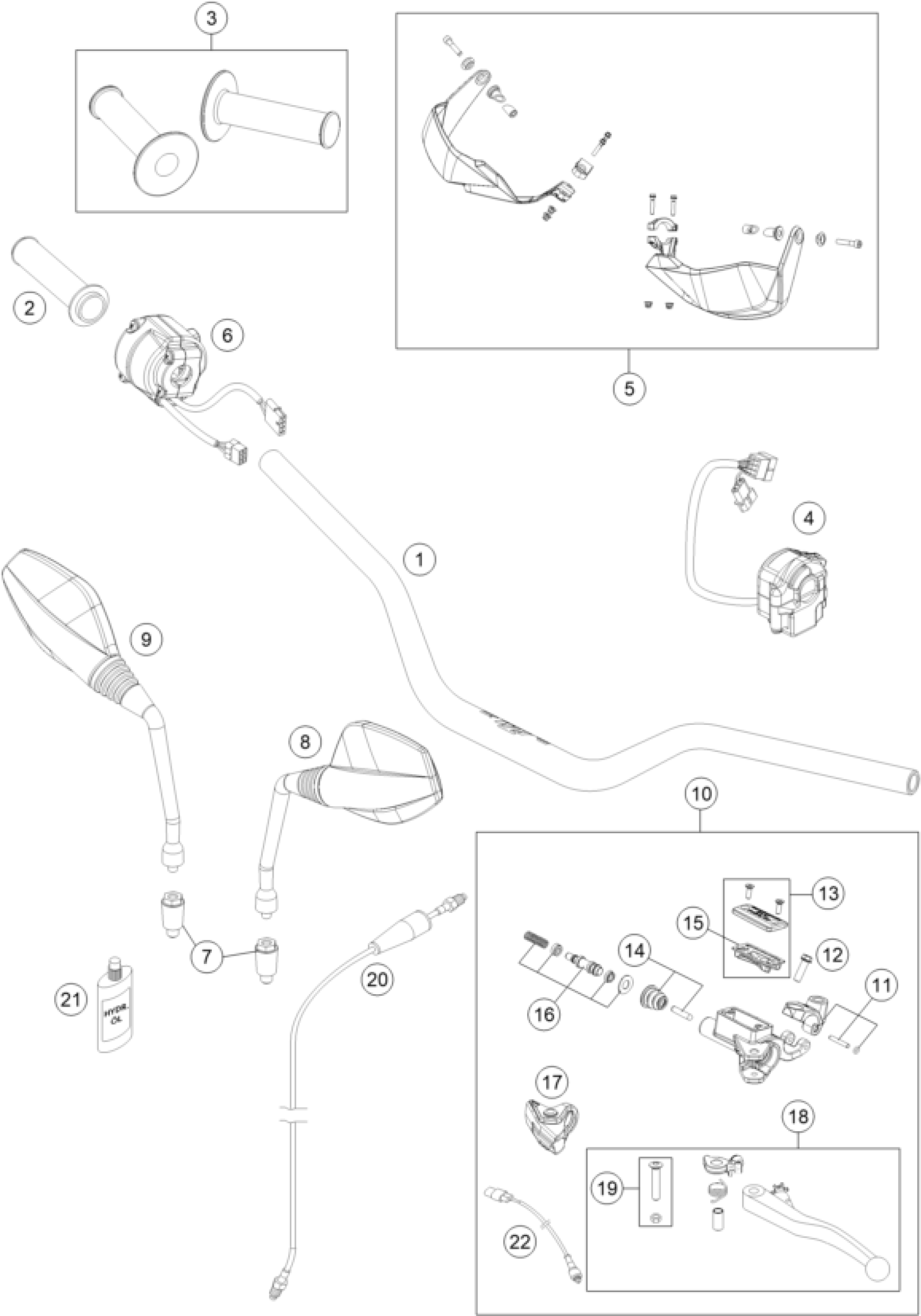

KTM 690 ENDURO R ABS 2015 HANDLEBAR, CONTROLS Diagram
