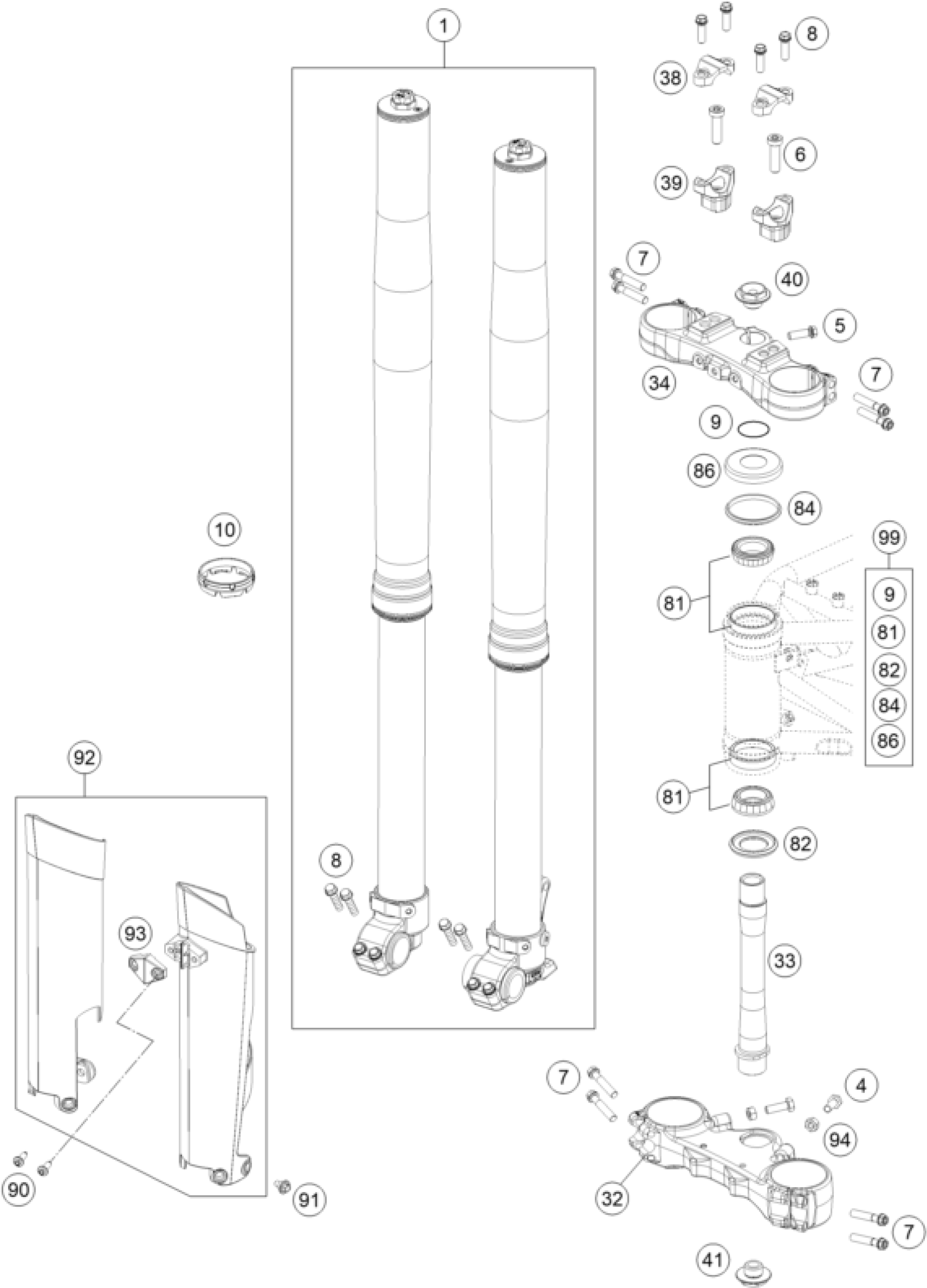

KTM 690 ENDURO R ABS 2015 FRONT FORK, TRIPLE CLAMP Diagram

#

Description
Price

1

Fork 690 ENDURO R 2014

14188N1001

Unavailable

4

HH SCREW DIN0933-M 8X25

0933080253

Unavailable

5

HH collar screw M8x30

0025080306

Unavailable

6

AH-COLLAR SCREW M10X35 ISA45

0032100356S

Unavailable

7

HH COLLAR SCREW M8X40 TX40

0025080406

Unavailable

8

HH collar screw M8x25

0025080256

Unavailable

9

O-RING 25X3,55 NBR70 05

0770025035

Unavailable

32

BOT.TRIPLE CLAMP 60 MM

7650103103133

Unavailable

33

FORK TUBE L=237MM 08

76501033000

Unavailable

34

TOP TRIPLE CLAMP 54MM

7650103403133

Unavailable

38

HANDLEBAR CLAMP 28MM

77201038000

Unavailable

39

Handlebar mount D28mm-H42mm

59401039042

Unavailable

40

STEER.HEAD SCREW M20X1,5 WS=27

54801036000

Unavailable

41

STE.HEAD SCR. M20X1,5 WS=27 SL

54801036100

Unavailable

81

TAPERED ROLLER BEARING CPL. 06

54201081100

Unavailable

82

O-RING SUPPORT W. SEALING LIP

77701084000

Unavailable

84

STEARING HEAD GASKET TOP

54601184000

Unavailable

86

STEERING HEAD COVER

54201086000

Unavailable

90

SCREW F. PLASTIC K60X20AL SW6

0017060206

Unavailable

91

SPECIAL SCREW M6X12,5 WS=8

59001092050

Unavailable

92

FORK PROTECT. L/S+R/S BLACK

7800109420030

Unavailable

93

CLAMP F.SPEED.CABLE D=6MM 08

7800108500030

Unavailable

94

Hexagon nut DIN934 M8

0934080003

Unavailable

99

STEARING HEAD REP. KIT 06-15

00050000930

Unavailable

10

Fork protection ring 62,1mm

48600698

Unavailable
