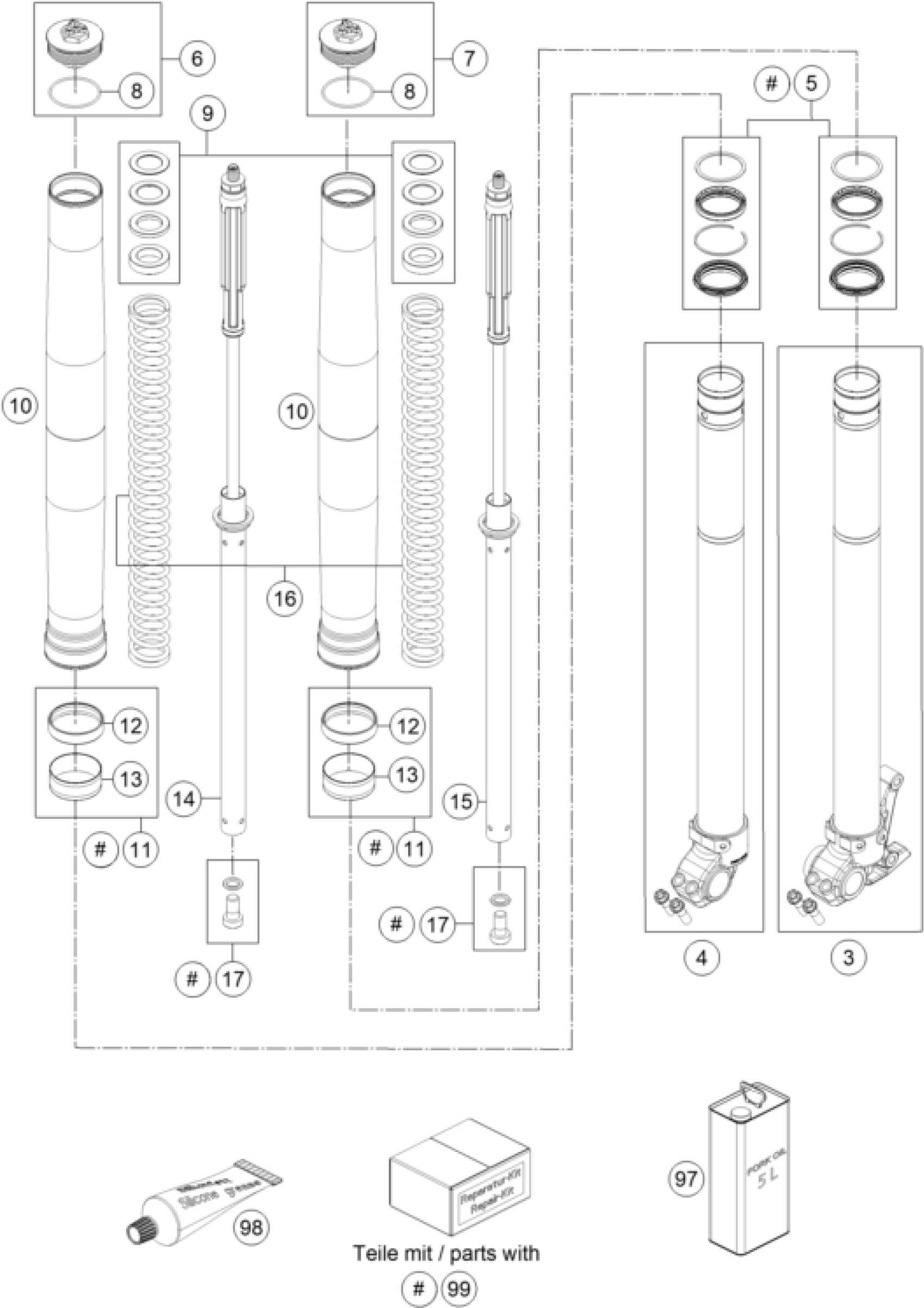

KTM 690 ENDURO R ABS 2015 FRONT FORK DISASSEMBLED Diagram

#

Description
Price

4

AXLE CLAMP R/S WITH TUBE CPL.

48601325S1

$480.39

3

Axle clamp l/s with tube cmpl.

48601324S1

$538.36

5

GASKET KIT CPL.

R14040

$66.75

6

Screw cap M51x1,5 rebound red

48601062S2

$58.15

7

Screw cap M51x1,5 compression

48601062S3

$64.04

8

O-ring 45x2 NBR70 siliconized

46810340

$1.49

9

spring tensioner SET

R14026

$77.32

10

Fork outer tube 49,13x577 dt54

48600761

$310.41

11

pilot bushing set

R14028

$25.70

12

Guide bushing 48x52x12

48601009

$12.05

13

Guide bushing 47x49x20

48601008

$12.05

14

Catridge Set right cmpl.

48601293S4

$422.14

15

Catridge Set left cpl.

48601294S4

$460.39

16

SPRING C=5,3 L=450 D=5,5

91410043S

$145.85

17

AH SCREW M10X20 SET

00501020S1

$11.49

97

Fork Fluid Viscosity 4.0 5L

48601166S1

$149.59

98

SILICONE GREASE F. DUST STRI

T511

$34.59

99

repair kit 1290 SD 2014

R14041

$158.60
