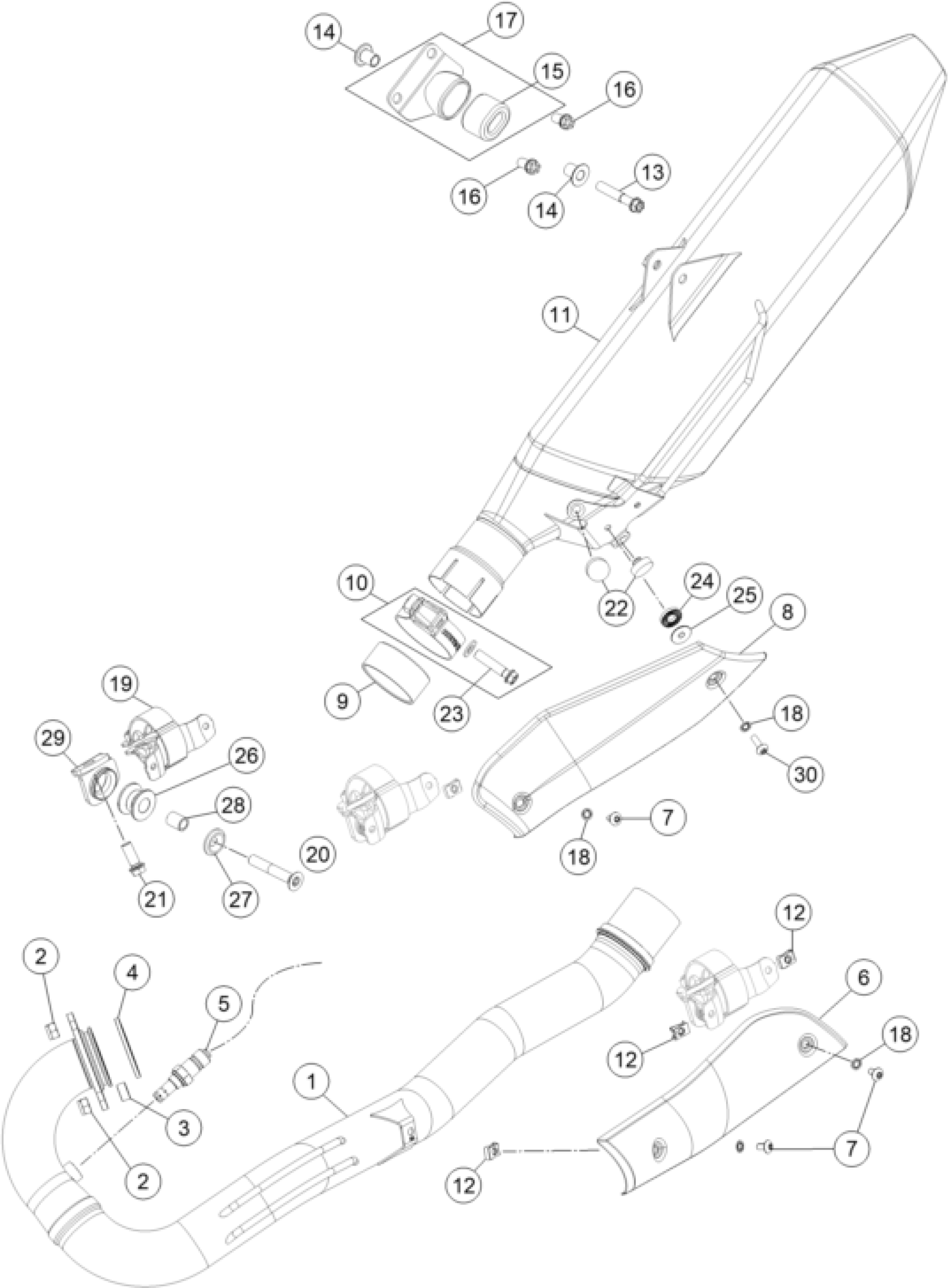

KTM 690 ENDURO R ABS 2015 EXHAUST SYSTEM Diagram

#

Description
Price

1

MANIFOLD CPL. LC4 ENDURO

76505007100

$589.79

2

self-locking nut M8 Cu

51010086100

$3.08

3

SPACER BUSH. 8,5X15X7,5 05

61005009000

$5.23

4

Exhaust gasket 05

61005005000

$10.00

5

LAMBDA SENSOR

75041090100

$171.19

6

HEAT SHIELD EXHAUST MANIFOLD

76505090010

$76.19

7

SCREW TORX M5X10

78105081010

$2.05

8

HEAT SHIELD SILENCER

76505090020

$71.43

9

GRAPHIT RING 55X50X25 05

58605005000

$16.92

10

CLAMP FOR SILENCER 57,4MM 08

76505051000

$27.67

11

SILENCER

76505083100

Unavailable

12

RANGE CHANGE METAL NUT M5 INOX

54603048600

$2.05

13

HH collar screw M8x45 TX40

0025080456

$4.11

14

BUSHING

60305069000

$2.05

15

DAMPING RUBBER

61305068000

$15.51

16

HH COLLAR SCREW M8X16 TX40

0025080166

$4.11

17

HOLDER SILENCER CPL.

76505084100

$57.96

18

TOOTH LOCK WASHER DIN6797-J

0797050000

$2.05

19

CLAMP WELD ASSEMBLY

76505007025

$31.50

20

COUN.-SUNK SCREW M8X50 ISA10.9

0019080506

$2.05

21

HH collar screw M8x20

0025080206

$2.05

22

RUBBER BUFFER

54308042000

$3.08

23

HH collar screw M8x35 TX40

0025080356

$4.11

24

decoupling element

75036052010

$4.11

25

BUSH 5.5X9X19X3.5

76505069000

$11.02

26

damp. component silicone grey

54305068100

$8.31

27

Special washer 8X24 ALU H=4.2

62603061000

$5.79

28

Spacer bushing 8.4X12X16

56505069000

$4.11

29

EXHAUST SUPPORT

76505007027

$36.55

30

Oval head screw M5x14 TX25

58605083014

$3.08
