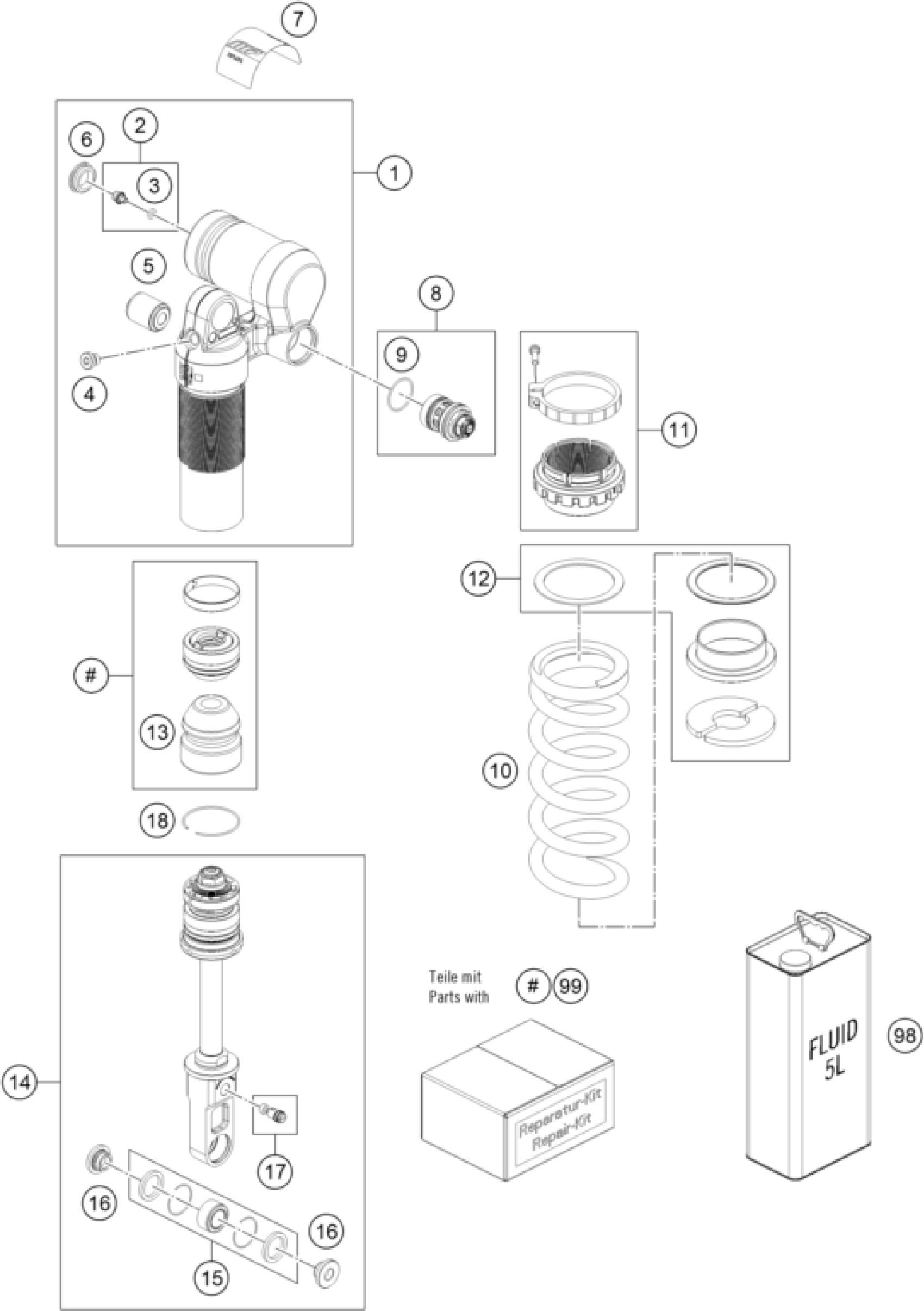

KTM 690 ENDURO R 2026 SHOCK ABSORBER DISASSEMBLED Diagram

#

Description
Price

1

Shock upper part cpl. KTM 690

S454600022S0000

Unavailable

2

PLUG SCREW M5X6 CPL.

36120151ST

Unavailable

3

O-ring 5,28x1,78 HNBR70 red

S208600003000FB

Unavailable

4

HS cylinder-head screw R1/8 l8

50180095

Unavailable

5

Silentblock 10,05x25x32

14460161

Unavailable

6

Rubber cap do not open 22x5,5

46811208

Unavailable

7

Sticker Set XPLOR 90x40

52000219

Unavailable

8

Compression adjuster cpl. Natu

50180213S38

Unavailable

9

O-ring 25x1,5 Viton70

50180218

Unavailable

10

Mainspring (59/61) 66-225 damp

91010337

Unavailable

10

Mainspring (59/61) 72-225 damp

91010339

Unavailable

10

Mainspring (59/61) 81-225 damp

91010367

Unavailable

11

Plastic Spring Retainer D46 cp

46181382S

Unavailable

12

Repair kit spring retainer

RP10022T

Unavailable

13

Rubber pad 17x50x54

50181080

Unavailable

14

Rod link M18x1 h81,5 cpl.

S421800020S0200

Unavailable

15

Ball joint bearing kit top 12m

R12012T

Unavailable

17

ADJUSTING SCREW M8X0,5 CPL.

50181094S

Unavailable

16

Distance bush 10x15/18/24,5x10

46180010

Unavailable

98

SHOCK ABSORBER FLUID 5 LT

50180751S1

Unavailable

99

Repair kit ADV. R

RP10013T

Unavailable

18

round-wire snap ring 49x1,75

S23902000000000

Unavailable
