REAR WHEEL

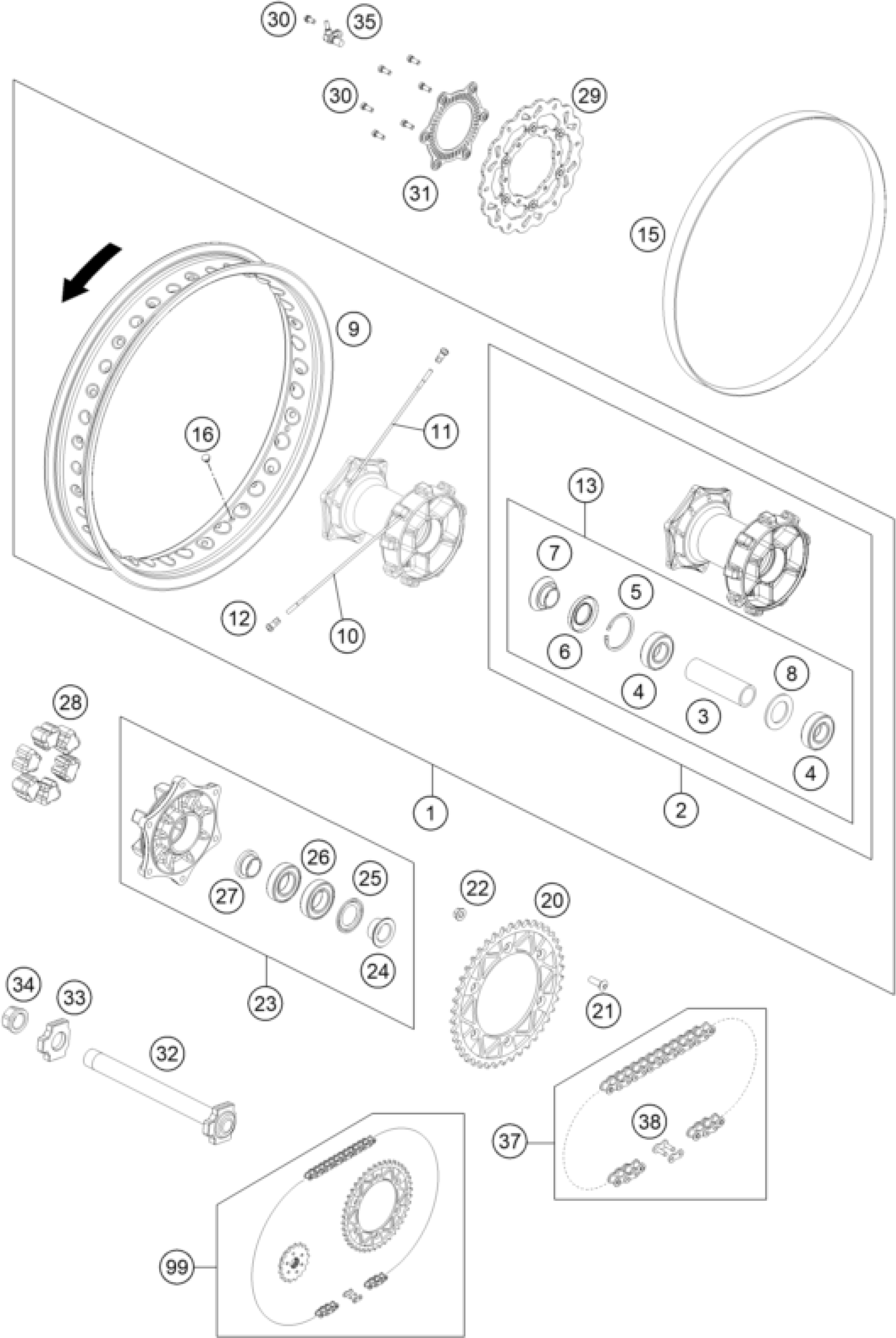

KTM 690 ENDURO R 2026 REAR WHEEL Diagram
#
1
Rear wheel cmpl. 2.50x18" 2024
76510101044C1A
Unavailable
2
REAR WHEEL HUB CPL.
7531001004491
Unavailable
3
BEARING SPACER TUBE L=106MM 07
75310011000
Unavailable
4
Grooved ball bear. 6205-2RSHC3
0625062052
Unavailable
5
CIRCLIP DIN0472-52X2
0472052200
Unavailable
6
Radial shaft seal 30X52X7
0760305271
Unavailable
7
SPACER BUSH. REAR WHEEL R/S 06
60110013000
Unavailable
8
Spacer ring 03
60010015000
Unavailable
9
Rear rim 2.5x18"
76510170000C1A
Unavailable
10
SPOKE M5X217 -17G 18'' INOX
75310073217
Unavailable
11
SPOKE M5X207-27G 18'' INOX
75310173207
Unavailable
12
SPOKE NIPPLE QUADRAX M5
60310072100
Unavailable
13
REAR WHEEL REP. KIT
75010015000
Unavailable
15
RIM BAND REAR 2MM 2003
58410073200
Unavailable
16
PLUG FOR RIM
55003135000
Unavailable
20
SPROCKET T=46 STEEL
75010051046
Unavailable
20
SPROCKET STEALTH 42T 07
75010051042
Unavailable
21
COUNTER-SUNK SCREW ISA45 M8X26
0019080266S
Unavailable
22
Hex. nut DIN EN 1661 M8 WS13
06923080003
Unavailable
23
SPROCKET SUPPORT CPL. SILVER
7501005004491
Unavailable
24
SPACER BUSH. SPROCKET SUPP. 06
60110012000
Unavailable
25
NILOS RING 6006AV
60110016000
Unavailable
26
BALL BEARING 6006 DDU2CG23S6NM
0625060060
Unavailable
27
SPACER BUSH. SPR. SUPP. IN. 06
60110014000
Unavailable
28
Rubber damping block 91
54610459000
Unavailable
29
BRAKE DISK REAR D=240MM
27010060000
Unavailable
30
SHCS ISO 14580 M6x16 SL
014580060166S
Unavailable
31
SENSOR WHEEL ABS REAR
76542021000
Unavailable
32
WHEEL SPINDLE CPL.
75310085144
Unavailable
33
Chain tension adjuster, right,
60010084000
Unavailable
34
COLLAR NUT WH. SPINDLE REAR 03
60010086000
Unavailable
35
Wheel speed sensor DF30
A61042025000
Unavailable
37
chain DID 118 roll
76910065118
Unavailable
38
Rivet link chain DID 520 VP2-T
76910066000
Unavailable
99
Drivetrain set ST 15T/46T
SPA215G463M118B
Unavailable
