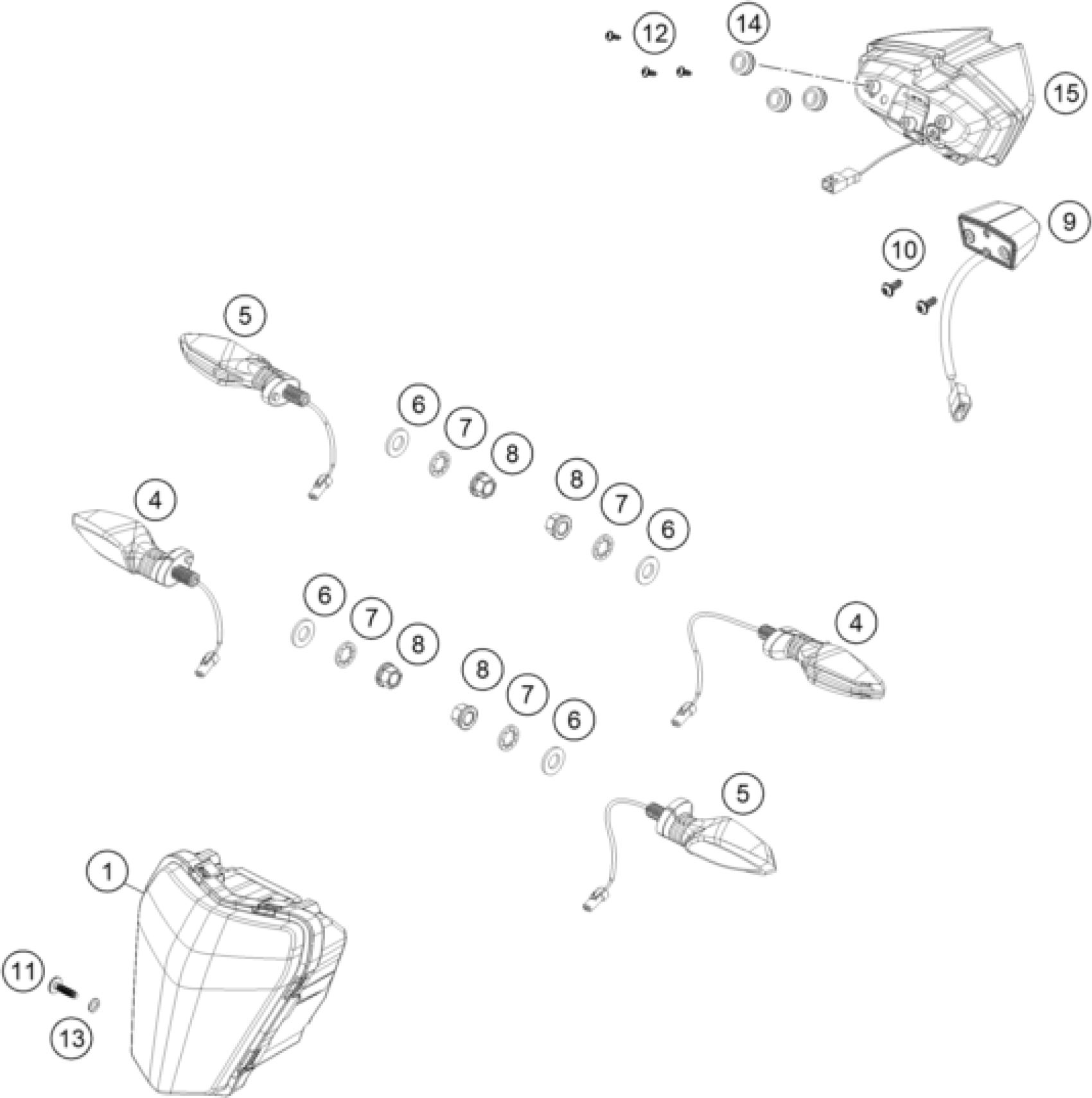

KTM 690 ENDURO R 2026 LIGHTING SYSTEM Diagram

#

Description
Price

1

LAMP HEAD

A60314001000

Unavailable

4

turn signal front right/rear l

60314026000

$42.61

5

turn signal front left/rear ri

60314025000

$42.61

6

Washer DIN0433-M10

0433100003

$1.49

7

LOCK WASHER DIN6797-J10,5 ZI

0797100003

$1.49

8

HH COLLAR NUT M10X1,25 WS=13

58414030000

$2.05

9

license plate lighting

60314047000

$35.62

10

EJOT PT screw K50x12

0081050121

$2.05

11

EJOT PT screw 50x20 T25

0081050203

$1.49

12

EJOT DELTA PT SCREW 45X12-Z

0081645121

$1.49

13

Serrated lck washer, DIN 6798-

006798050103

$1.49

14

rubber grommet 9x11x16x8.5 mm

60006001022

$2.05

15

Tail light

63514040000

$169.60
