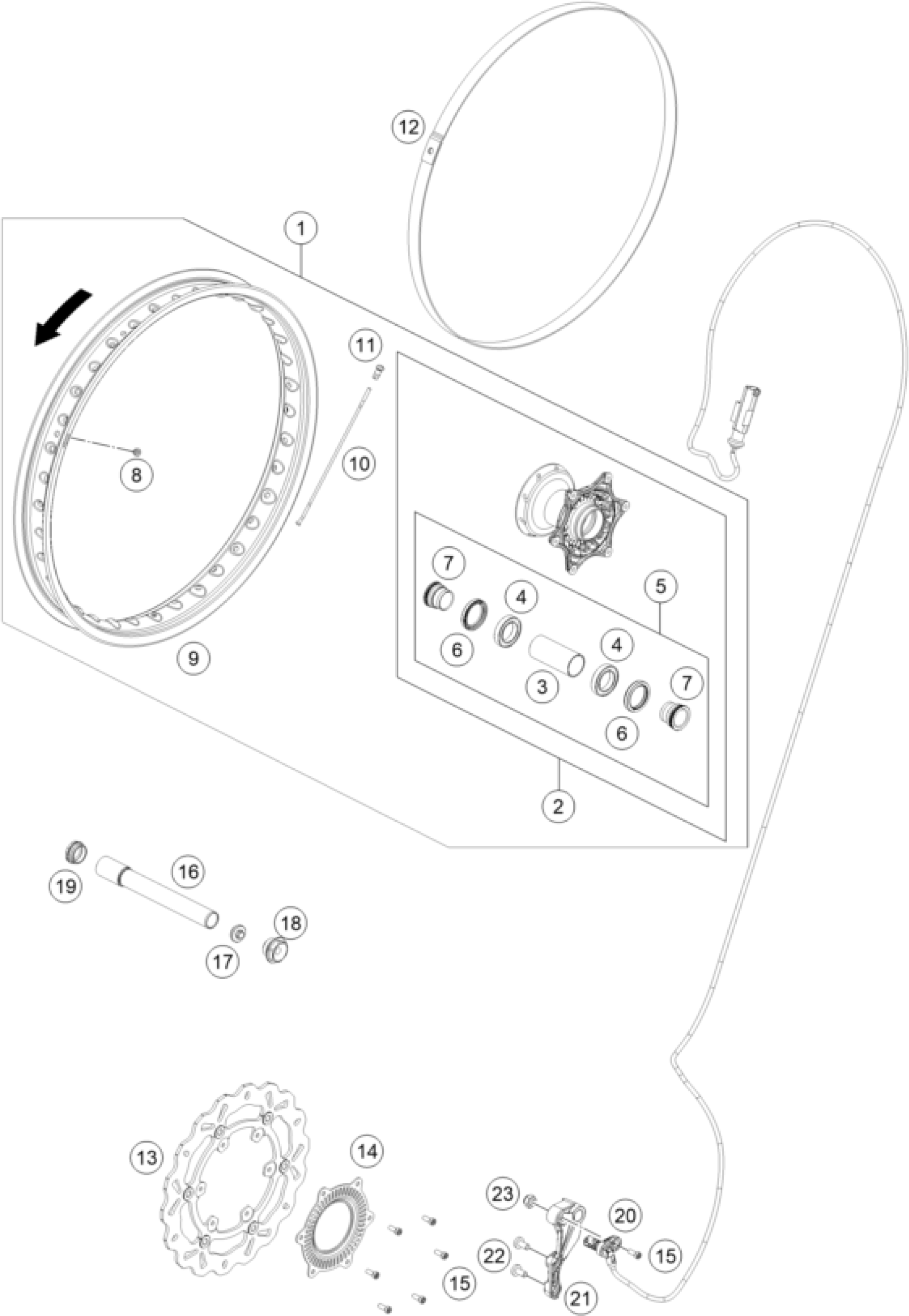

KTM 690 ENDURO R 2026 FRONT WHEEL Diagram

#

Description
Price

1

Front wheel cmpl. 1.85X21" 202

76509101044C1A

$821.86

2

FRONT HUB CPL.

7530901004491

$297.13

3

BEA.SPACERTUBE 35X2 L=79,4 03

54809011000

$25.70

4

Grooved ball bearing 6906

0625069068

$34.68

5

FRONT WHEEL REP. KIT

78009015000

$106.68

6

Radial shaft seal 35X47X7 TC

0760354771

$8.69

7

SPACER BUSHING F. FR. WHEEL 08

78009012000

$30.10

8

PLUG FOR RIM

55003135000

$2.05

9

Front rim 1.85x21"

76509170000C1A

$352.49

10

SPOKE M4,5X226-18'' INOX

75309073226

$4.11

11

SPOKE NIPPLE QUADRAX M4,5

81210072100

$2.05

12

RIM BAND FRONT 2MM 2003

58409073100

$7.56

13

FRONT BRAKE DISC D=300MM

76509260000

$306.76

14

Front sensor wheel

60142020100

$83.77

15

SHCS ISO 14580 M6x16 SL

014580060166S

$2.05

16

Wheel spindle, front

77309081100

$82.83

17

AUXILIARY SCREW FRONT 06

54809081070

$5.70

18

SPINDLE SCREW M24X1,5 WS=27 03

54809082000

$9.81

19

PLUG BUSHING WS=27 03

54809081050

$9.81

20

Sensor

A60642025000

Unavailable

21

Sensor bracket

27042024200

Unavailable

22

INT. TORX OVAL HEAD M 5X10 8.8

0018050103

$1.49

23

Self lock. nut DIN985-M6-A2

0985060003

$2.05
