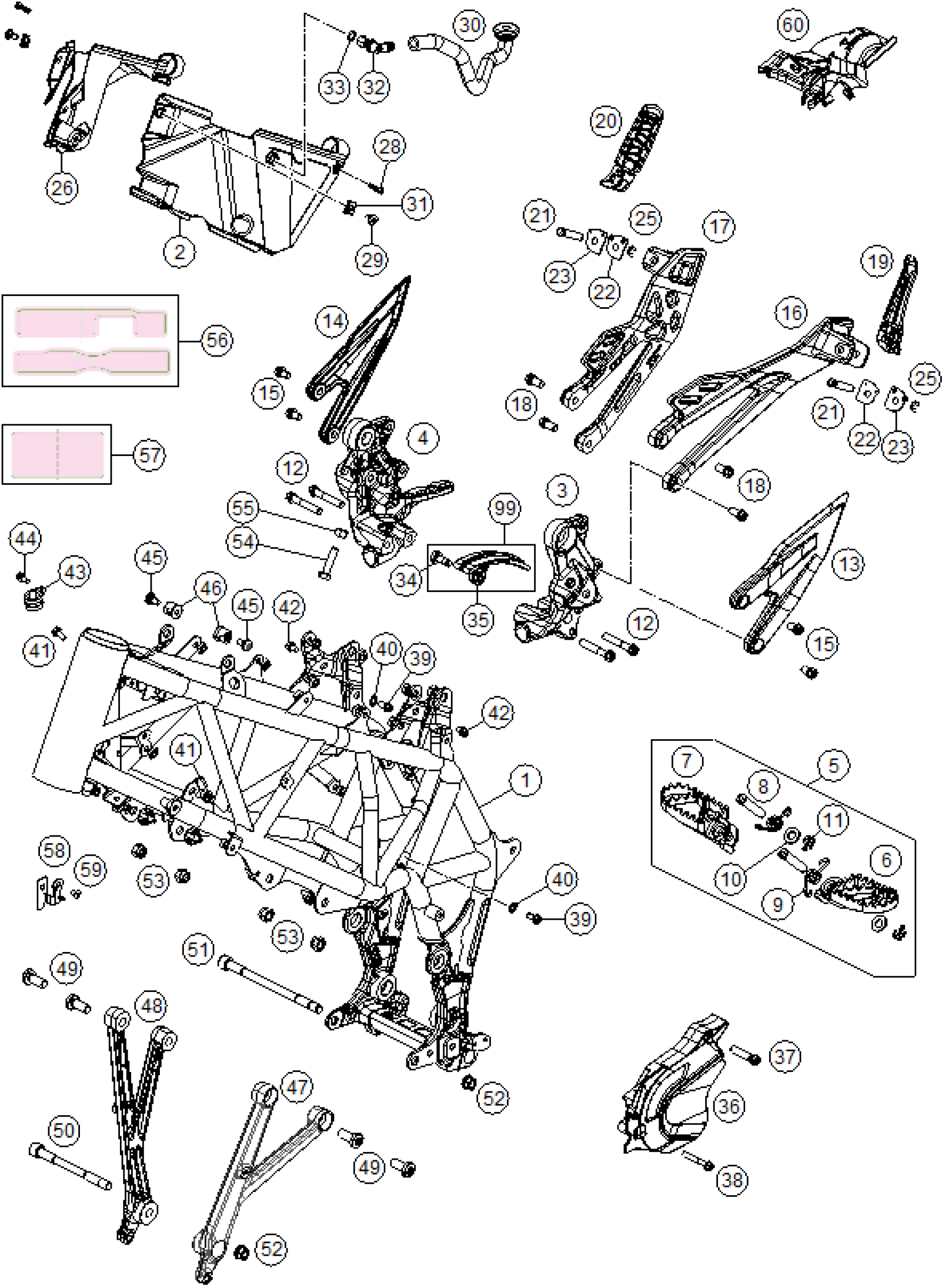

KTM 690 ENDURO R 2026 FRAME Diagram

#

Description
Price

1

Frame

A60603001000EB

Unavailable

2

Frame cover left

A60603085000

Unavailable

3

Front footpeg bracket left cmp

7690303804401

Unavailable

4

Footpeg bracket right cmpl.

7690303904401

Unavailable

5

FOOTREST L/S + R/S CPL. 09

78003040033

Unavailable

6

FOOTREST L/S 08

78003040050

Unavailable

7

FOOTREST R/S 08

78003041050

Unavailable

8

PIN FOR FOOT PED 51.5X9.8 MM

54803044000

Unavailable

9

FOOTREST SPRING L/S & R/S

54603041000

Unavailable

10

washer DIN 125 A 10.5

0125100003

Unavailable

11

PIN DIN0094-3,2X25 STEEL

0094032253

Unavailable

12

HH collar screw M8x45 TX40

0025080456

Unavailable

13

Heel protector, left

76903038050

Unavailable

14

Heel protector, right

76903039050

Unavailable

15

HH collar screw M8x12 TX40

0025080126

Unavailable

16

Passenger footpeg bracket rlef

A6060304800001

Unavailable

17

Passenger footpeg bracket righ

A6060304900001

Unavailable

18

HH COLLAR SCREW M8X16 TX40

0025080166

Unavailable

19

FOOTREST CPL. L/S REAR 03

60003050000

Unavailable

20

Footrest cmpl. r/s rear 03

60003051000

Unavailable

21

BOLT FOR FOOTREST REAR 03

60003044000

Unavailable

22

ENGAGE PANEL FOOTREST L/S 03

60003152000

Unavailable

23

ENGAGE PANEL FOOTREST R/S 03

60003052000

Unavailable

25

retaining washer DIN 6799 - 6

0799060003

Unavailable

26

Frame cover right

A60603086000

Unavailable

28

SCREW FOR PLASTIC 50X18 T20

0081250181

Unavailable

29

special screw M5x12

69008021160

Unavailable

30

oil separator vent

76930088030

Unavailable

31

clip nut M5

69008021080

Unavailable

32

ANGLE CONNECTOR LC8 03

60038082000

Unavailable

33

O-RING 8X2 SILICONE

0770080020

Unavailable

34

SHCS M8x20 TX45

0035080206S

Unavailable

35

CHAIN SLID. GUARD 08

76504067000

Unavailable

36

Front sprocket cover

A60603096000

Unavailable

37

HH collar screw M8x35 TX40

0025080356

Unavailable

38

HH collar screw M6x40 TX30

0025060406

Unavailable

39

HH collar screw M6x12 TX30

0025060126

Unavailable

40

CONTACT WASHER M6 VSV-K6

58411098100

Unavailable

41

HH COLLAR SCREW M6X10 TX30

0024060106

Unavailable

42

HH collar screw M6x8 TX30

0025060086

Unavailable

43

CLAMP RSGU 15/12

49007439000

Unavailable

44

HH collar screw M5x12 TX30

0025050126

Unavailable

45

special screw M6x14

69008021040

Unavailable

46

Seat holder

76907026000

Unavailable

47

Engine brace left

A60603005000C1

Unavailable

48

Engine brace right

A60603006000C1

Unavailable

49

AH collar screw M10x24 ISA45

0035100249

Unavailable

50

Engine bracket screw M10x120-1

0900001012000S

Unavailable

51

Engine bracket screw M10x152-1

0900001015200S

Unavailable

52

COLLAR NUT M10 WS=13

54630044000

Unavailable

53

SELF LOCKING NUT M10 CU WS=14

54310086100

Unavailable

54

HH SCREW DIN933 M5x20

0933050203

Unavailable

55

HEXAGON NUT DIN0934-M 5

0934050003

Unavailable

56

Frame Protection sticker set

A60603094000

Unavailable

57

Protective film trans. 80x40mm

A40007012000

Unavailable

58

bracket generator plug cpl

A60611059020

Unavailable

59

Flat Head Screw ISO7380 M5x8 A

0738050082

Unavailable

99

CHAIN SLIDING BELOW 08-13

76504067010

Unavailable

60

Suspension strut mount cover

A60603001085

Unavailable
