Description

Price

1

Handlebar L=808mm, Dk=28.5mm

7690200100001

$148.47

3

Grip Set

A63402021000C1

$27.28

4

Handlebar switch left

76511070100

$110.04

5

Handguard

7960218204430

$26.34

6

START-STOP/E-GAS

76011073100

$347.34

10

MASTER CYLINDER D=11 MM

27002030044

$507.14

11

CLAMP, CYL. PIN, O-RING

76513005000

$69.65

12

HH collar screw M6x20 TX30

0025060206

$3.08

13

COVER HYDR. CLUTCH DOT CPL.

25002033000

$33.28

14

PUSH ROD CPL. 13

76502046000

$31.78

15

Mounting kit handguard

76902079044

$29.54

16

REP. KIT PISTON DOT 11MM

27002032000

$125.84

17

PROTECT.CAP FOR LEVER PERCH 13

76502037000

$36.74

18

CLUTCH LEVER CPL.

27002031000

$86.95

19

LEVER SCREW SHORT CPL. 09

50302038200

$22.90

20

CLUTCH PIPE 1100MM

76032063000

$69.28

21

Brake fluid DOT5.1 0,25L

00062030000

$12.52

22

CLUTCH SWITCH ATV

83111049000

$106.49

23

Ignition curve switch

76939074000

$199.71

7

Mirror

60312040200

$93.30

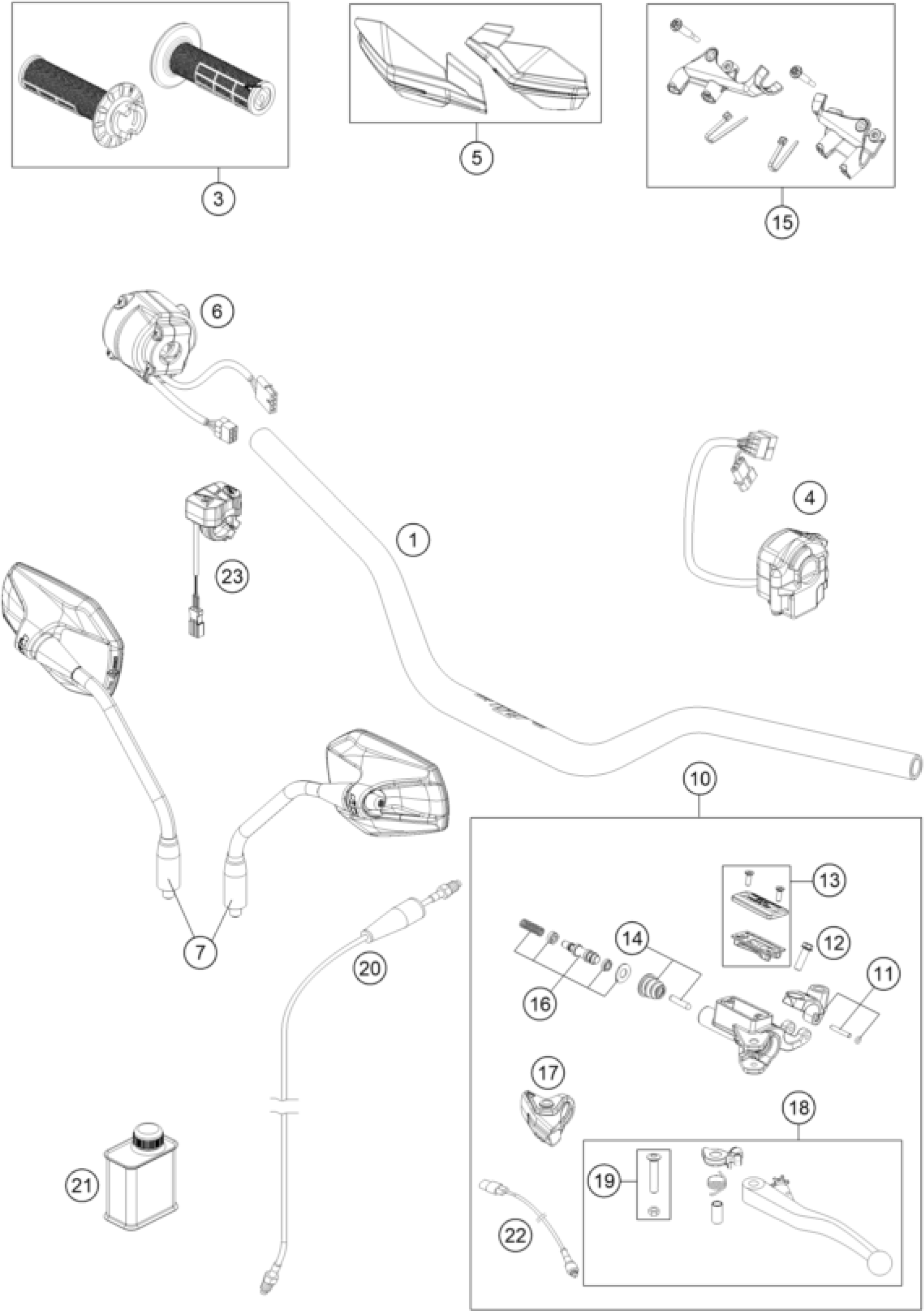

KTM 690 ENDURO R 2023 HANDLEBAR, CONTROLS Diagram
