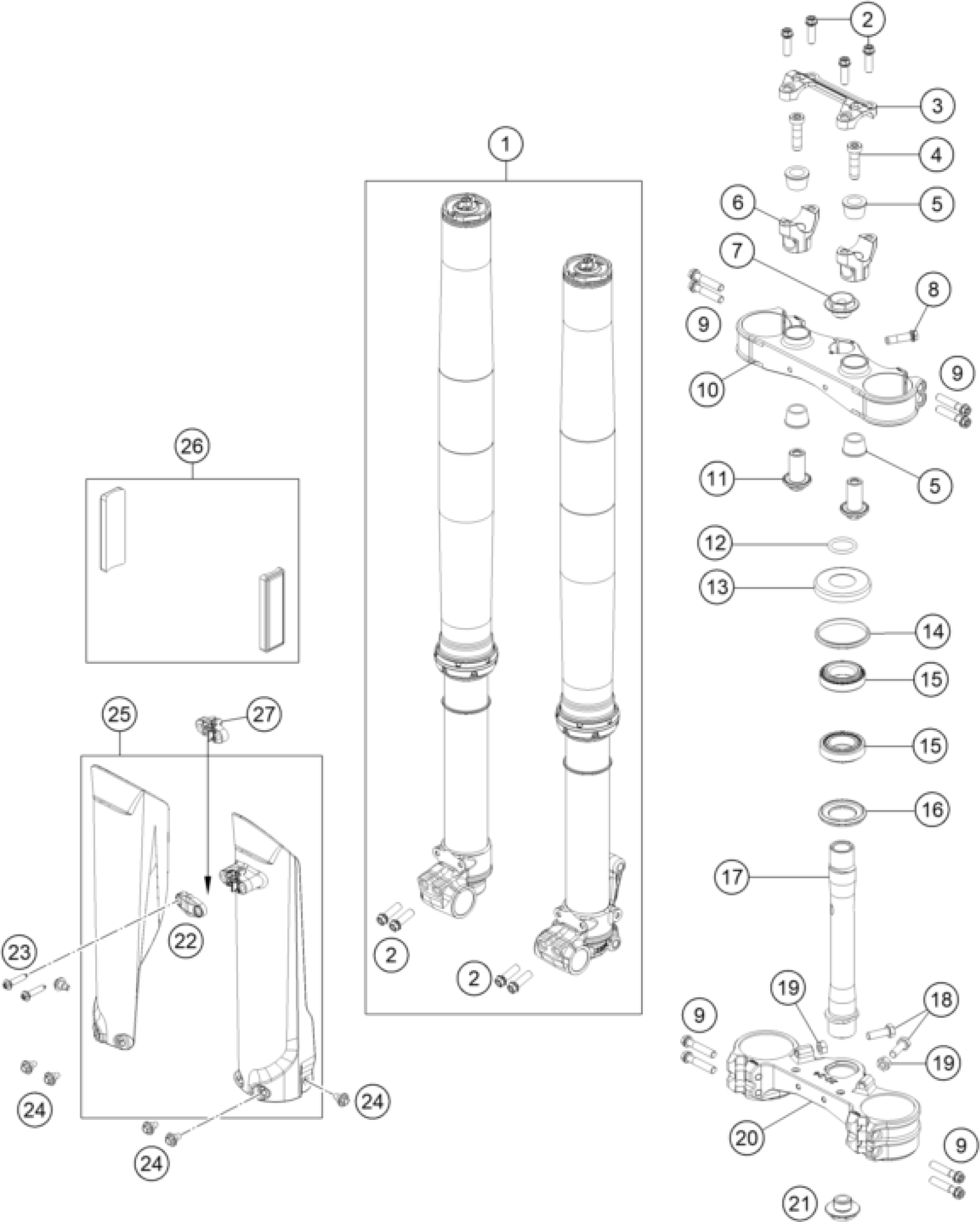

KTM 690 ENDURO R 2021 FRONT FORK, TRIPLE CLAMP Diagram

#

Description
Price

1

Fork KTM 690 Enduro R 19

14188S1001

$2,966.09

2

HH collar screw M8x25

0025080256

$2.05

3

Handlebar clamp 28mm

79001038000C1

$58.06

4

AH-COLLAR SCREW M10X35 ISA45

0032100356S

$4.11

5

RUBBER BUSH

83001040000

$5.23

6

Handlebar mount D28mm H36mm

79001039136C1

$39.07

7

Steering head screw M20x1.5 WS

54801036000C1

$10.84

8

HH collar screw M8x30

0025080306

$3.08

9

HH COLLAR SCREW M8X40 TX40

0025080406

$4.11

10

UP. TRIPLE-CLAMP 22-24 OFFSET

2700103422330

$318.83

11

HANDLEBAR SUPPORT LOWER PART

79001037034

$60.95

12

O-RING 25X3,55 NBR70 05

0770025035

$1.49

13

STEERING HEAD COVER

78101086000

$6.07

14

STEARING HEAD GASKET TOP

54601184000

$7.10

15

TAPERED ROLLER BEARING CPL. 06

54201081100

$51.04

16

O-RING SUPPORT W. SEALING LIP

77701084000

$19.35

17

excentric head tube

76501033100

$120.42

18

HH SCREW DIN0933-M 8X25

0933080253

$2.05

19

Hexagon nut DIN934 M8

0934080003

$2.05

20

BOTTOM TRIPLE CLAMP 22-24

2700103112330

$388.95

21

STE.HEAD SCR. M20X1,5 WS=27 SL

54801036100

$14.67

22

Clamp for brake hose

77701085100C1

$2.05

23

Special screw K60X30 WS=6

0017060305

$2.05

24

SPECIAL SCREW M6X12,5 WS=8

59001092050

$2.05

25

Fork protection kit 690 Enduro

77701094100C1F

$82.46

26

REFLECTOR YELLOW ''CEV''

58412080300

$7.75

27

Spacer, brake line clamping

76901085050C1

$2.80
