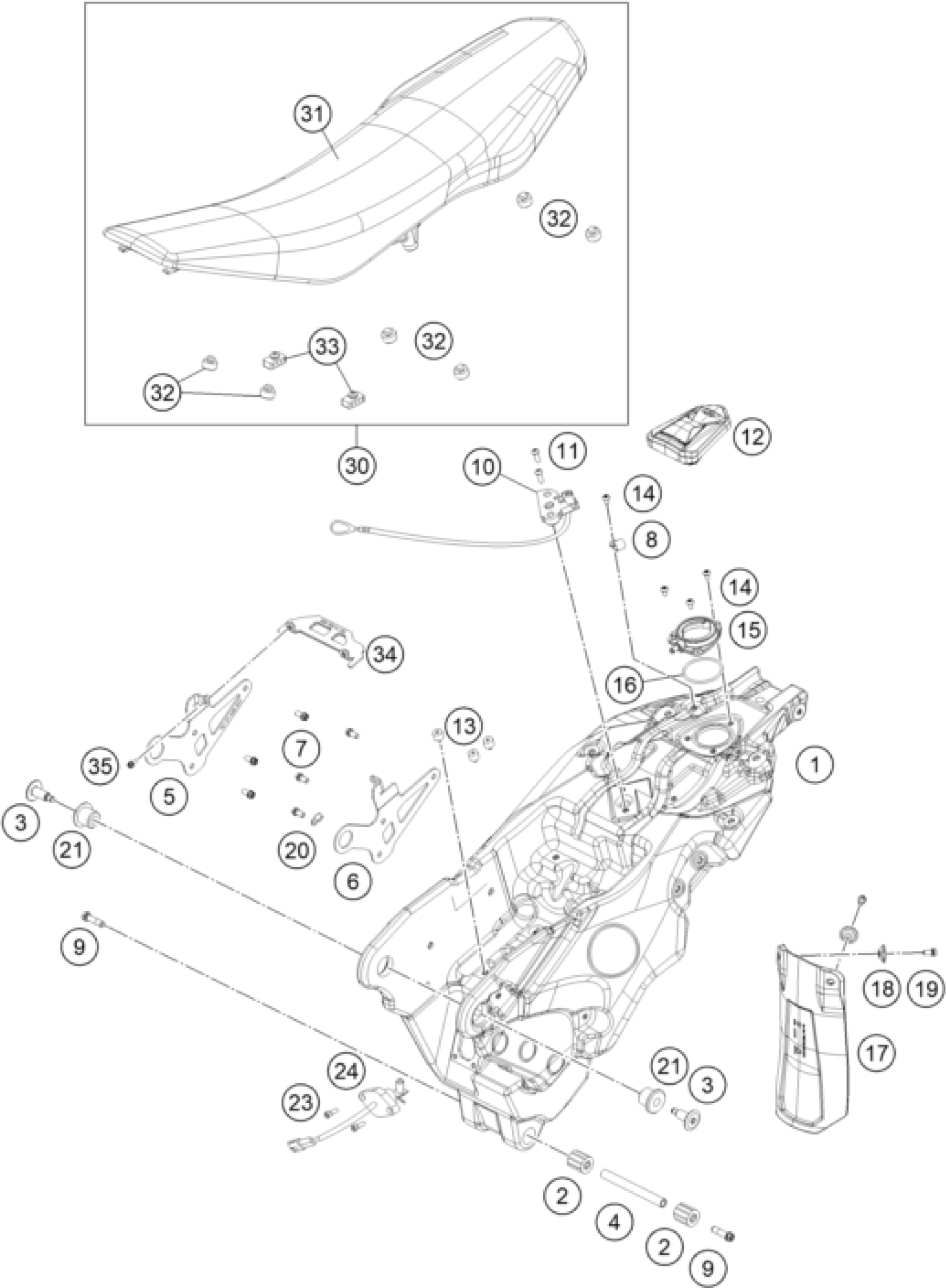

KTM 690 ENDURO R 2021 TANK, SEAT Diagram

#

Description
Price

1

Fuel tank

76107013000

Unavailable

2

RUBBER BUSHING 11,7X24,7 L=26

76507065100

$16.07

3

attachement bolt top

76507060100

$49.92

4

Bearing sleeve, bottom

76507061100

$20.37

5

Tank retaining plate, right, c

76107028000

Unavailable

6

Tank retaining plate, left, cm

76107027000

Unavailable

7

HH COLLAR SCREW M8X16 TX40

0025080166

$4.11

8

PVC-CLAMP 7/16'' HEYCO 3377

57013070000

$1.49

9

HH COLLAR SCREW M8X30 TX40

0025080306S

$3.08

10

Rider seat lock cpl.

61707052000

$49.83

11

oval head screw M6x18 A2-70 S

0738060185S

$1.49

12

Fuel tank cap

76907008000

$261.14

14

SCREW TORX M5X10 05

58605083010

$2.05

15

Closure flange

76507108050

$12.15

16

O-ring 50.00X3.00 VITON

0770050030

$5.23

17

Splash protection

76506010100

$10.46

18

BUCKET

72210079000

$3.00

19

HH collar screw M6x10 TX30

0025060106

$3.08

20

Clamp for cable, SB lock M5

0800001300600

Unavailable

21

RUBB.BEAR.BOX 12x24x35 L=24,5

76507066000

$13.64

23

AH collar screw DIN 912 M5x16

0912050163

$1.49

24

GAS-LEVEL SENSOR ADV. 2006

58207080100

$80.31

30

Seat

76107040000

Unavailable

31

Seat cover

76907040050

$97.98

32

Seat rubber

76907040045

$1.49

33

Rubber support

28503002010

$4.11

34

Retaining bracket battery cmpl

76111056044

Unavailable

35

HH collar screw M6x15 TX30

0024060156

$3.08

13

silentbloc 20x15-M6x10-(1)

43205062100

$13.92
