Description

Price

1

Shockhousung M53x1 cpl.

46181367S1

$391.76

2

PLUG SCREW M5X6 CPL.

36120151S

$4.11

3

O-ring 5,28x1,78 NBR70 black

46810893

$1.49

4

HS cylinder-head screw R1/8 l8

50180095

$2.42

5

Silentblock 10,05x25x32

14460161

$15.33

6

Rubber cap do not open 22x5,5

46811208

$3.08

7

Sticker Set XPLOR 90x40

52000219

$32.25

8

Compression cpl. Silber

46180533S4

$128.93

9

O-ring 22x2 Viton70

46180811

$1.49

10

Mainspring (59/61) 72-225 damp

91010339

$140.24

11

Plastic Spring Retainer D46 cp

46181382S

$32.53

12

Repair kit spring retainer

RP10022

Unavailable

13

Rubber pad 17x50x54

50181080

$23.65

14

shock bottom part cpl.

46180692S1

$410.74

15

REPAIR KIT BEARINGS 07

R15006

Unavailable

16

TAP ADJ. REBOUND

46180522S1

$50.11

17

Round-wire snap ring 49x1,5

46810010

$3.08

98

SHOCK ABSORBER FLUID 5 LT

50180751S1

Unavailable

99

Repair kit ADV. R

RP10013

Unavailable

10

Mainspring (59/61) 81-225 damp

91010367

Unavailable

10

Mainspring (59/61) 66-225 damp

91010337

Unavailable

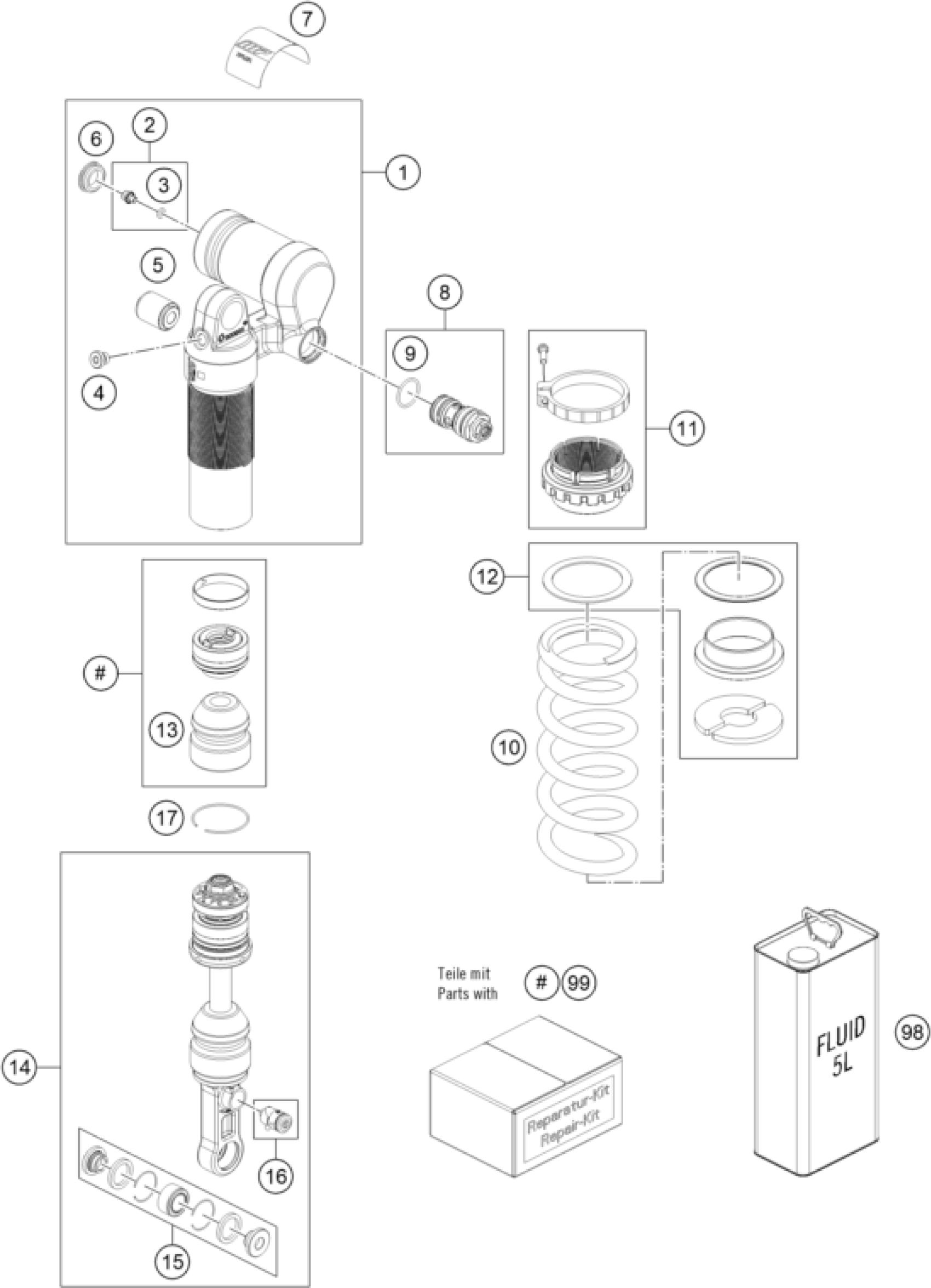

KTM 690 Enduro R 2019 SHOCK ABSORBER DISASSEMBLED Diagram

Shockhousung M53x1 cpl.

PLUG SCREW M5X6 CPL.

O-ring 5,28x1,78 NBR70 black

HS cylinder-head screw R1/8 l8

Silentblock 10,05x25x32

Rubber cap do not open 22x5,5

Sticker Set XPLOR 90x40

Compression cpl. Silber

O-ring 22x2 Viton70

Mainspring (59/61) 72-225 damp

Plastic Spring Retainer D46 cp

Repair kit spring retainer

Rubber pad 17x50x54

shock bottom part cpl.

REPAIR KIT BEARINGS 07

TAP ADJ. REBOUND

Round-wire snap ring 49x1,5

SHOCK ABSORBER FLUID 5 LT

Repair kit ADV. R

Mainspring (59/61) 81-225 damp

Mainspring (59/61) 66-225 damp
