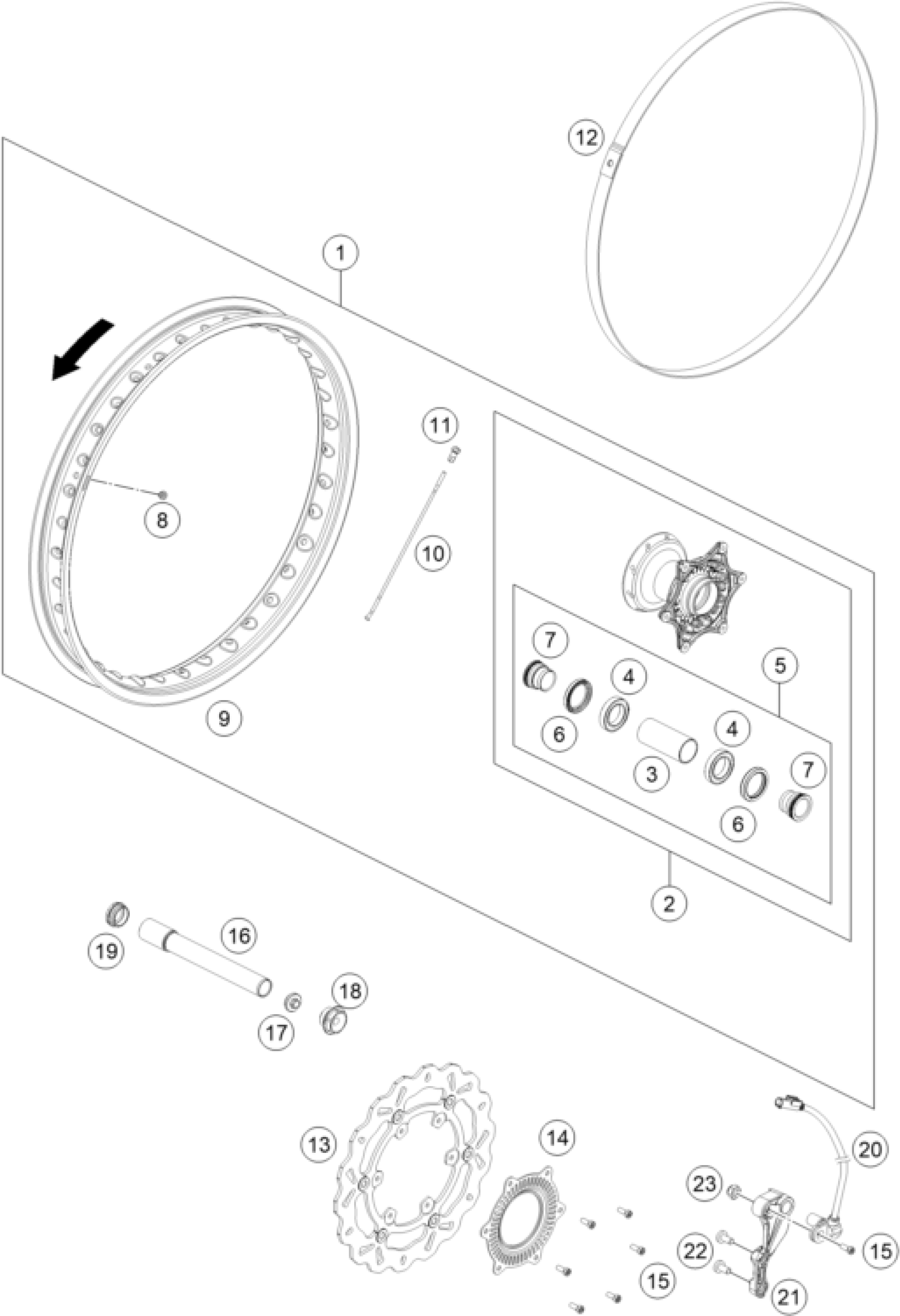

KTM 690 Enduro R 2019 FRONT WHEEL Diagram

#

Description
Price

1

FRONT WHEEL CPL. 1,85X21'' 1

7650910104430

Unavailable

2

FRONT HUB CPL.

7530901004491

Unavailable

3

BEA.SPACERTUBE 35X2 L=79,4 03

54809011000

Unavailable

4

Grooved ball bearing 6906

0625069068

Unavailable

5

FRONT WHEEL REP. KIT

78009015000

Unavailable

6

Radial shaft seal 35X47X7 TC

0760354771

Unavailable

7

SPACER BUSHING F. FR. WHEEL 08

78009012000

Unavailable

8

PLUG FOR RIM

55003135000

Unavailable

9

Front rim 1.85X21" DID 16

7650917000030

Unavailable

10

SPOKE M4,5X226-18'' INOX

75309073226

Unavailable

11

SPOKE NIPPLE QUADRAX M4,5

81210072100

Unavailable

12

RIM BAND FRONT 2MM 2003

58409073100

Unavailable

13

FRONT BRAKE DISC D=300MM

76509260000

Unavailable

14

Front sensor wheel

60142020100

Unavailable

15

SHCS ISO 14580 M6x16 SL

014580060166S

Unavailable

16

WHEEL SPIN.FR. D=26 M24x1,5 07

77309081000

Unavailable

17

AUXILIARY SCREW FRONT 06

54809081070

Unavailable

18

SPINDLE SCREW M24X1,5 WS=27 03

54809082000

Unavailable

19

PLUG BUSHING WS=27 03

54809081050

Unavailable

20

ABS-SENSOR

76542025000

Unavailable

21

SENSOR BRACKET

27042024100

Unavailable

22

INT. TORX OVAL HEAD M 5X10 8.8

0018050103

Unavailable

23

Self lock. nut DIN985-M6-A2

0985060003

Unavailable
