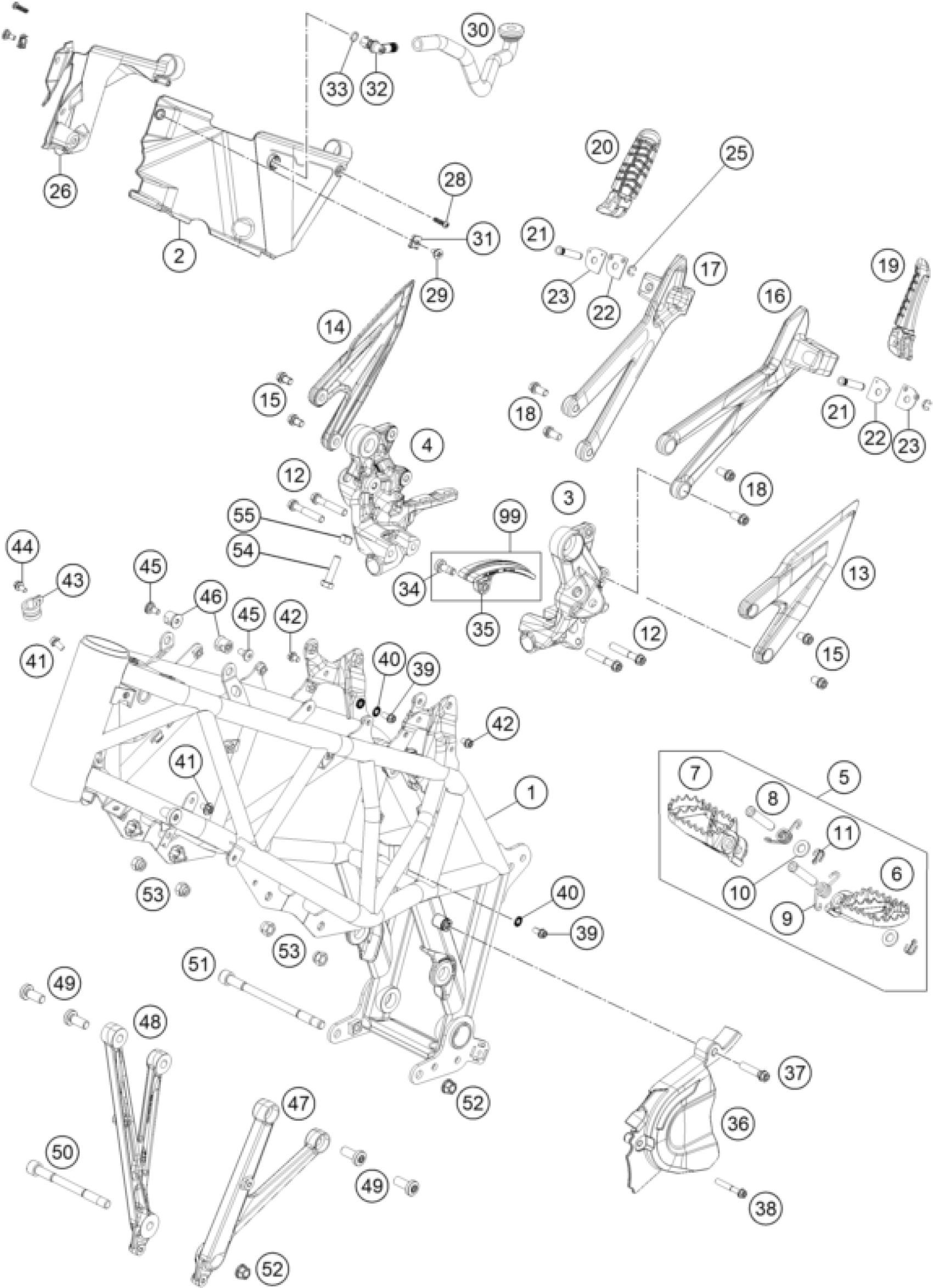

KTM 690 Enduro R 2019 FRAME Diagram

#

Description
Price

1

Frame 769 el. orange

76903001000EB

$2,049.23

2

Frame cover left

76903092000

$34.77

3

Front footpeg bracket left cmp

7690303804401

$188.86

4

Footpeg bracket right cmpl.

7690303904401

$283.11

5

FOOTREST L/S + R/S CPL. 09

78003040033

$116.02

6

FOOTREST L/S 08

78003040050

$43.66

7

FOOTREST R/S 08

78003041050

$43.66

8

PIN FOR FOOT PED 51.5X9.8 MM

54803044000

$12.43

9

FOOTREST SPRING L/S & R/S

54603041000

$5.23

10

washer DIN 125 A 10.5

0125100003

$2.05

11

PIN DIN0094-3,2X25 STEEL

0094032253

$1.49

12

HH collar screw M8x45 TX40

0025080456

$4.11

13

Heel protector, left

76903038050

$25.61

14

Heel protector, right

76903039050

$25.61

15

HH collar screw M8x12 TX40

0025080126

$3.08

16

Rear footpeg bracket left

7690304800001

$120.23

17

Rear footpeg bracket right

7690304900001

$120.23

18

HH COLLAR SCREW M8X16 TX40

0025080166

$4.11

19

FOOTREST CPL. L/S REAR 03

60003050000

$61.42

20

Footrest cmpl. r/s rear 03

60003051000

$61.89

21

BOLT FOR FOOTREST REAR 03

60003044000

$8.87

22

ENGAGE PANEL FOOTREST L/S 03

60003152000

$5.23

23

ENGAGE PANEL FOOTREST R/S 03

60003052000

$5.23

25

retaining washer DIN 6799 - 6

0799060003

$1.49

32

ANGLE CONNECTOR LC8 03

60038082000

$2.05

33

O-RING 8X2 SILICONE

0770080020

$1.49

28

SCREW FOR PLASTIC 50X18 T20

0081250181

$1.49

29

special screw M5x12

69008021160

$4.11

30

oil separator vent

76930088030

$26.73

31

clip nut M5

69008021080

$3.08

34

SHCS M8x20 TX45

0035080206S

$5.32

35

CHAIN SLID. GUARD 08

76504067000

$6.82

99

CHAIN SLIDING BELOW 08-13

76504067010

Unavailable

36

CHAIN GUARD CPL. 08

76530060044

$13.08

37

HH collar screw M8x35 TX40

0025080356

$4.11

38

HH collar screw M6x40 TX30

0025060406

$3.08

41

HH COLLAR SCREW M6X10 TX30

0024060106

$3.08

39

HH collar screw M6x12 TX30

0025060126

$3.08

40

CONTACT WASHER M6 VSV-K6

58411098100

$2.05

43

CLAMP RSGU 15/12

49007439000

$5.23

42

HH collar screw M6x8 TX30

0025060086

$2.05

44

HH collar screw M5x12 TX30

0025050126

$3.08

45

special screw M6x14

69008021040

$2.05

46

Seat holder

76907026000

$5.23

47

ENGINE SUPPORT L/S BLACK

7650300500033

$115.74

48

ENGINE SUPPORT R/S BLACK

7650300600033

$119.11

49

AH collar screw M10x24 ISA45

0035100249

$3.08

50

SPECIAL SCREW M10X115 ISK8 07

75003015000

$7.38

51

SPECIAL SCREW M10X152 ISK8 07

75003014000

$6.72

52

COLLAR NUT M10 WS=13

54630044000

$1.49

26

Frame cover right

76903086000

$21.59

53

SELF LOCKING NUT M10 CU WS=14

54310086100

$2.05

54

HH SCREW DIN933 M5x20

0933050203

$1.49

55

HEXAGON NUT DIN0934-M 5

0934050003

$2.05
