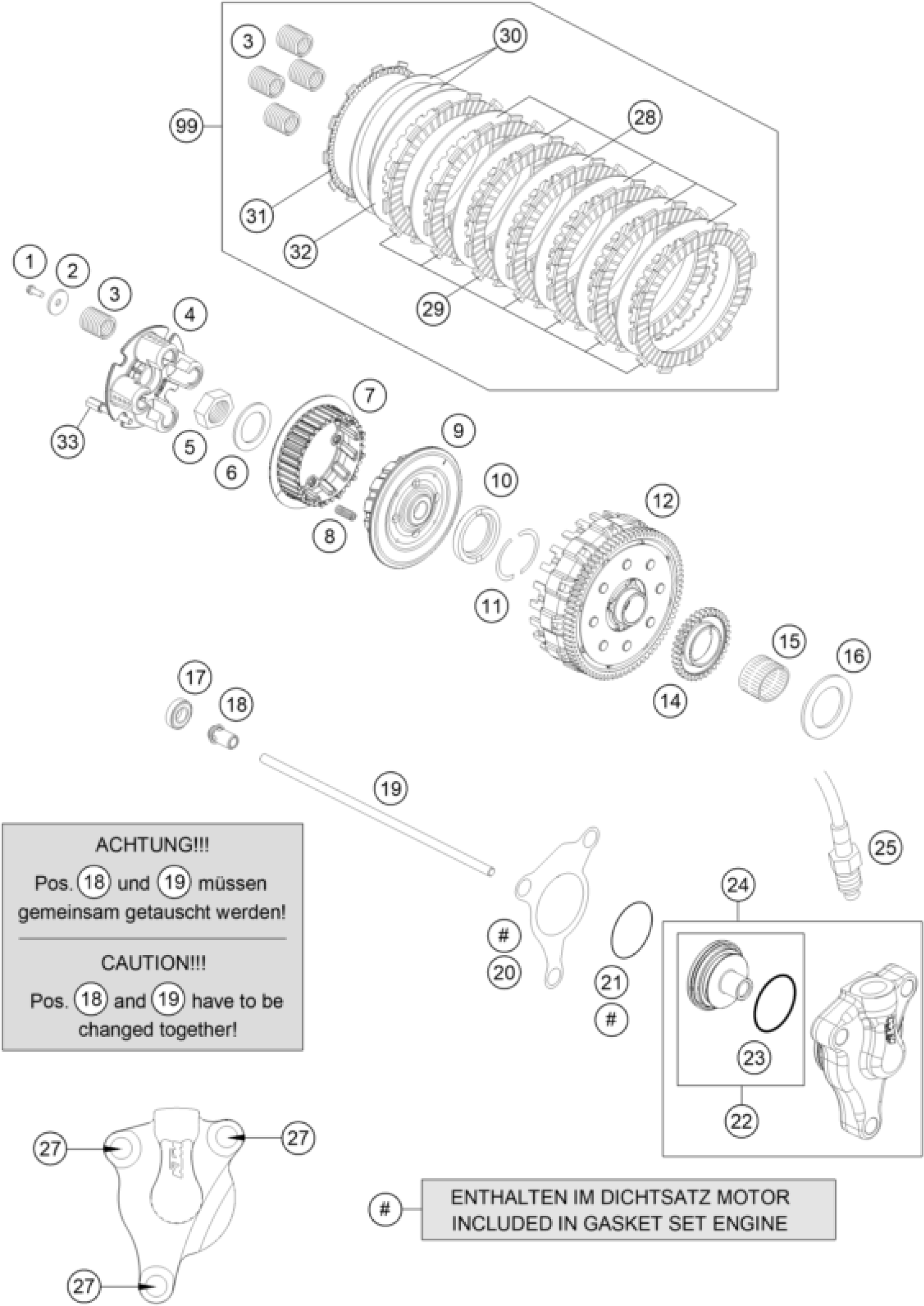

KTM 690 Enduro R 2018 CLUTCH Diagram

#

Description
Price

1

HH COLLAR SCREW M5X25 ISA30

0025050256

Unavailable

2

SPRING RING 07

75032006000

Unavailable

3

CLUTCH SPRING 3,0X33,5

58532080001

Unavailable

4

PRESSURE CAP

75032003000

Unavailable

5

hex nut M20x1,. H=6mm

60036073150

Unavailable

6

thrust washer 20x32x2

47032020000

Unavailable

7

INNER CLUTCH HUB MOVABLE

75032002002

Unavailable

8

CLUTCH RELEASE SPRING

75032033000

Unavailable

9

INNER CLUTCH HUB FIXED

75032002001

Unavailable

10

STEPPED WASHER 07

75032009000

Unavailable

11

HALF-WASHER 07

75032007000

Unavailable

12

CLUTCH CAGE CPL. 79T

75032001144

Unavailable

14

OIL PUMP DRIVE WHEEL 07

75032050001

Unavailable

15

NEEDLE BEARING K26X30X22ZW.KSE

56532095000

Unavailable

16

WASHER 26X40X2 07

75032017000

Unavailable

17

deep groove ball bearing 6001.

0625060016

Unavailable

18

PRESSURE BOLT 08

75032055100

Unavailable

19

PUSH ROD 08

75032054200

Unavailable

20

GASKET F. OUTPUT CYLINDER

59032065100

Unavailable

21

O-ring 30x1.5 NBR 70

0770300015

Unavailable

24

Output Cyl. Dot Cpl. 27mm

79432061144

Unavailable

25

CLUTCH PIPE 250/300 2003

54732063100

Unavailable

27

HH collar screw M6x20 TX30

0025060206

Unavailable

28

STEEL DISK 1,5 MM LC4 ´07

75032112000

Unavailable

29

LINING DISK 2,7MM FCC 02

58332011300

Unavailable

30

RONDELLA ANTIVIBRAZIONE SET

58632016000

Unavailable

31

LINING DISC CUT OUT

75032111100

Unavailable

32

STEEL DISK 1,5MM NITRIDED

75032112100

Unavailable

33

HOLDING SCREW GMB-M5X35

75032032000

Unavailable

99

CLUTCH KIT 690/701

75032011110

Unavailable

22

PISTONKIT OUTPUT ZYL. DOT 27MM

26632066000

Unavailable

23

O-Ring 23,52x1,78 EPDM

26632067000

Unavailable
