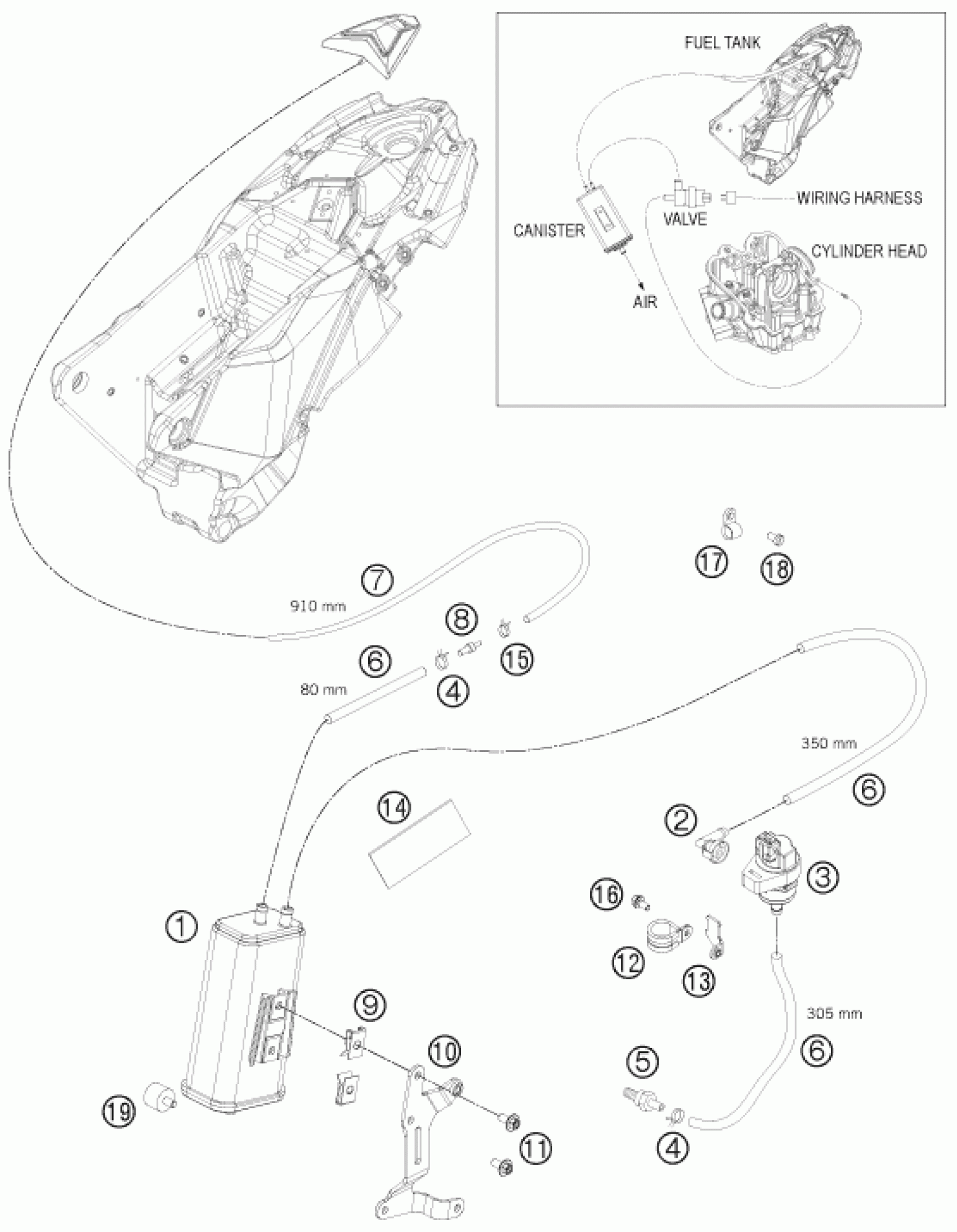

KTM 690 ENDURO R 2013 EVAPORATIVE CANISTER Diagram

#

Description
Price

1

EVAPORATIVE CANISTER 09

75015001100

$61.80

2

FITTING PIECE NQV2 NW7 90°

61115016000

$12.71

3

VALVE FOR CARBON CANISTER 07

61115015000

$63.95

4

YDNAC-clamp 10101 (10.4MM)

58007017000

$3.08

5

VACUUM CONECTION M6/0,5MM

60036023100

$28.23

6

HOSE EPA D=6/10 L=2000MM

78015019000

Unavailable

7

HOSE EPA D=4/8 L=2000MM

78015021000

Unavailable

8

REDUCTION CONNECTION GRS6-4

75015023000

$5.60

9

clip nut M6

54603048100

$4.11

10

RETAINING PLATE AKF KPL.

76515102033

$38.51

11

HH collar screw M6x12 TX30

0025060126

$3.08

12

CLAMP RSGU 18/15 03

59007439000

$5.79

13

RETAINING PLATE VALVE EC

76515032000

$11.68

14

METAMOLL 90X45X3MM 03

59003001099

$2.05

15

YDNAC-CLAMP FUEL HOSE (8MM)

45031005000

$1.49

16

HH collar screw M5x10 TX30

0025050106

$1.49

17

PVC-CLAMP 7,9 MM HEYCO 3355

57013070100

$2.05

18

CYL.HEAD SCREW DIN0084-M 4X8 A

0084040083

$1.49

19

silentbloc 20x15-M6x10-(1)

43205062100

$13.92
