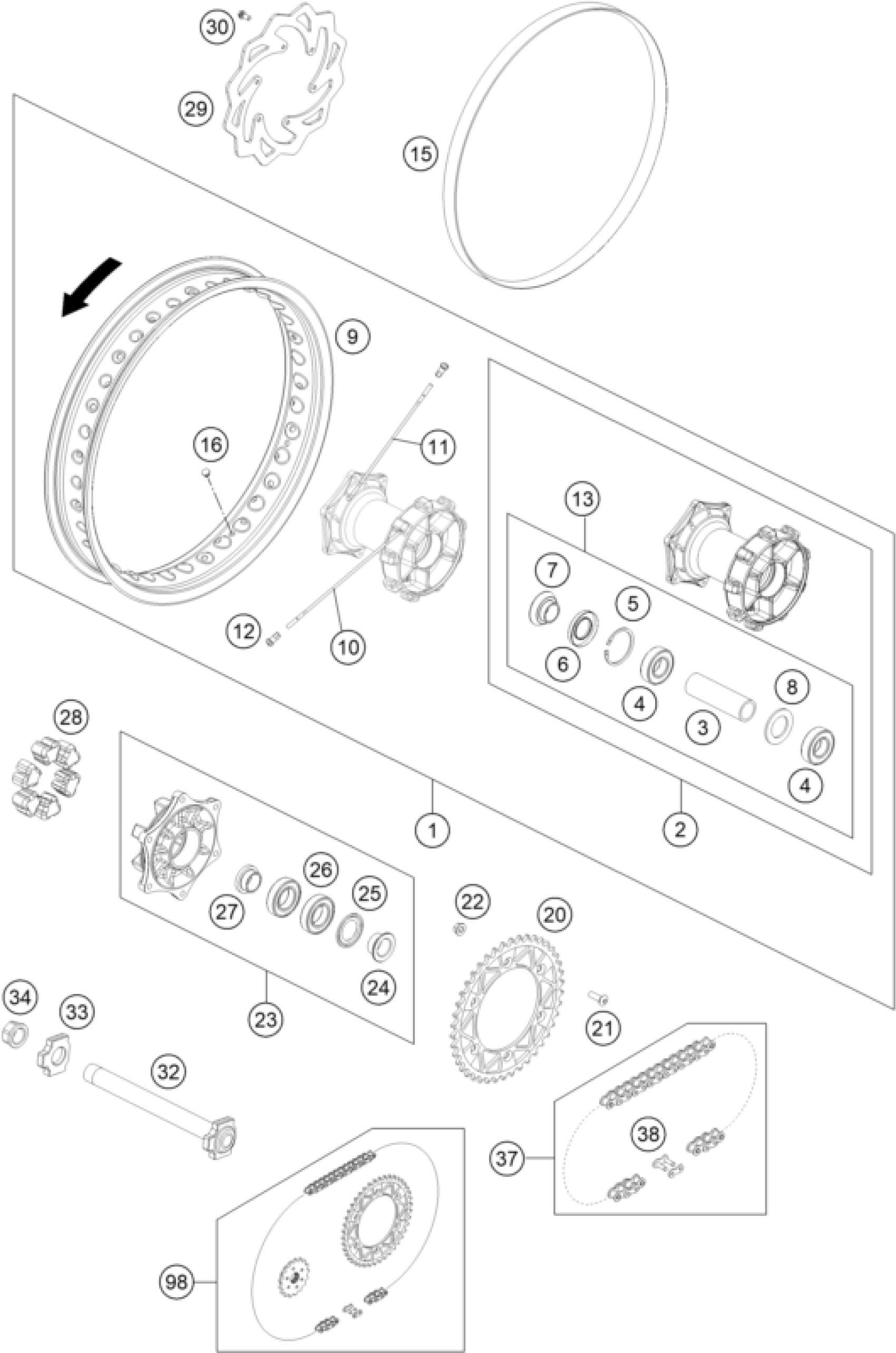

KTM 690 ENDURO R 2013 REAR WHEEL Diagram

#

Description
Price

1

REAR WHEEL CPL. 2,50X18'' 08

7651000104430

$801.85

2

REAR HUB CPL. 07

75310010044

$303.31

3

BEARING SPACER TUBE L=106MM 07

75310011000

$21.40

4

Grooved ball bear. 6205-2RSHC3

0625062052

$30.85

5

CIRCLIP DIN0472-52X2

0472052200

$3.08

6

Radial shaft seal 30X52X7

0760305271

$5.23

7

SPACER BUSH. REAR WHEEL R/S 06

60110013000

$22.99

8

Spacer ring 03

60010015000

$10.56

9

RIM 2,50X18'' DID BLACK 0

7651007000030

$317.70

10

SPOKE M5X217 -17G 18'' INOX

75310073217

$4.11

11

SPOKE M5X207-27G 18'' INOX

75310173207

$3.73

12

SPOKE NIPPLE M5-TA 8X21MM

58309072100

$2.05

13

REAR WHEEL REP. KIT

75010015000

Unavailable

15

RIM BAND REAR 2MM 2003

58410073200

$9.44

16

PLUG FOR RIM

55003135000

$2.05

20

Sprocket 45-t steel

75010051045

$66.94

20

SPROCKET STEALTH 42T 07

75010051042

Unavailable

21

COUNTER-SUNK SCREW ISA45 M8X26

0019080266S

$3.08

22

Hex. nut DIN EN 1661 M8 WS13

06923080003

$2.05

23

SPROCKET SUPPORT CPL. SILVER

7501005004491

$219.06

24

SPACER BUSH. SPROCKET SUPP. 06

60110012000

$20.09

25

NILOS RING 6006AV

60110016000

$9.72

26

BALL BEARING 6006 DDU2CG23S6NM

0625060060

$18.69

27

SPACER BUSH. SPR. SUPP. IN. 06

60110014000

$17.38

28

Rubber damping block 91

54610459000

$8.03

29

BRAKE DISC REAR D=240MM

76510060000

$190.45

30

SPECIAL SCREW M6X13 WS=8 10.9

59009062013

$2.05

32

WHEEL SPINDLE CPL.

75310085144

$78.91

33

Chain tension adjuster, right,

60010084000

$22.81

34

COLLAR NUT WH. SPINDLE REAR 03

60010086000

$14.58

37

chain DID 118 roll

76910065118

$128.83

38

Rivet link chain DID 520 VP2-T

76910066000

$20.00

98

DRIVETRAIN KIT 701 EN 15T/45T

00050002079

Unavailable
