Description

Price

1

HANDLEBAR D=28 MM RENTHAL796

5480200120017

$151.84

4

THROTTLE GRIP CPL. 08

76502010000

$56.75

15

PUSH ROD CPL. 13

76502046000

$31.78

5

GRIP SET DUAL COMPOUND

63002021200

$27.01

6

THROTTLE CABLE 07

75002091000

$97.98

7

SUPPORT FOR MIRROR LC4 '98

58412040050

$20.19

8

REVIEW MIRROR L/S

76512040000

$42.53

9

REVIEW MIRROR R/S

76512041000

$42.53

10

MASTER CYLINDER MAGURA D=11MM

76502013000

$361.93

11

CLAMP, CYL. PIN, O-RING

76513005000

$69.65

12

HH collar screw M6x20 TX30

0025060206

$3.08

14

COVER HYDR. CLUTCH CPL. 13

76502033000

$48.52

16

RUBBER FOR RESERVOIR 09

50302034100

$19.16

17

REP. KIT PISTON 11MM 13

76502032000

$112.28

18

PROTECT.CAP FOR LEVER PERCH 13

76502037000

$36.74

20

CLUTCH LEVER CPL. LONG 13

76502031000

$115.28

21

LEVER SCREW SHORT CPL. 09

50302038200

$22.90

23

CLUTCH PIPE 250/300 2003

54732063100

$101.63

24

OIL FOR HYD. CLUTCH 100 ML

50302036200

$19.91

25

CLUTCH SWITCH ATV

83111049000

$106.49

40

LIGHT SWITCH L/S 08

76511070000

$110.04

41

START-EMERGENCY STOP SWITCH 08

76511074000

$60.86

42

HANGUARDS CLOSED, ORANGE

6020217900004

Unavailable

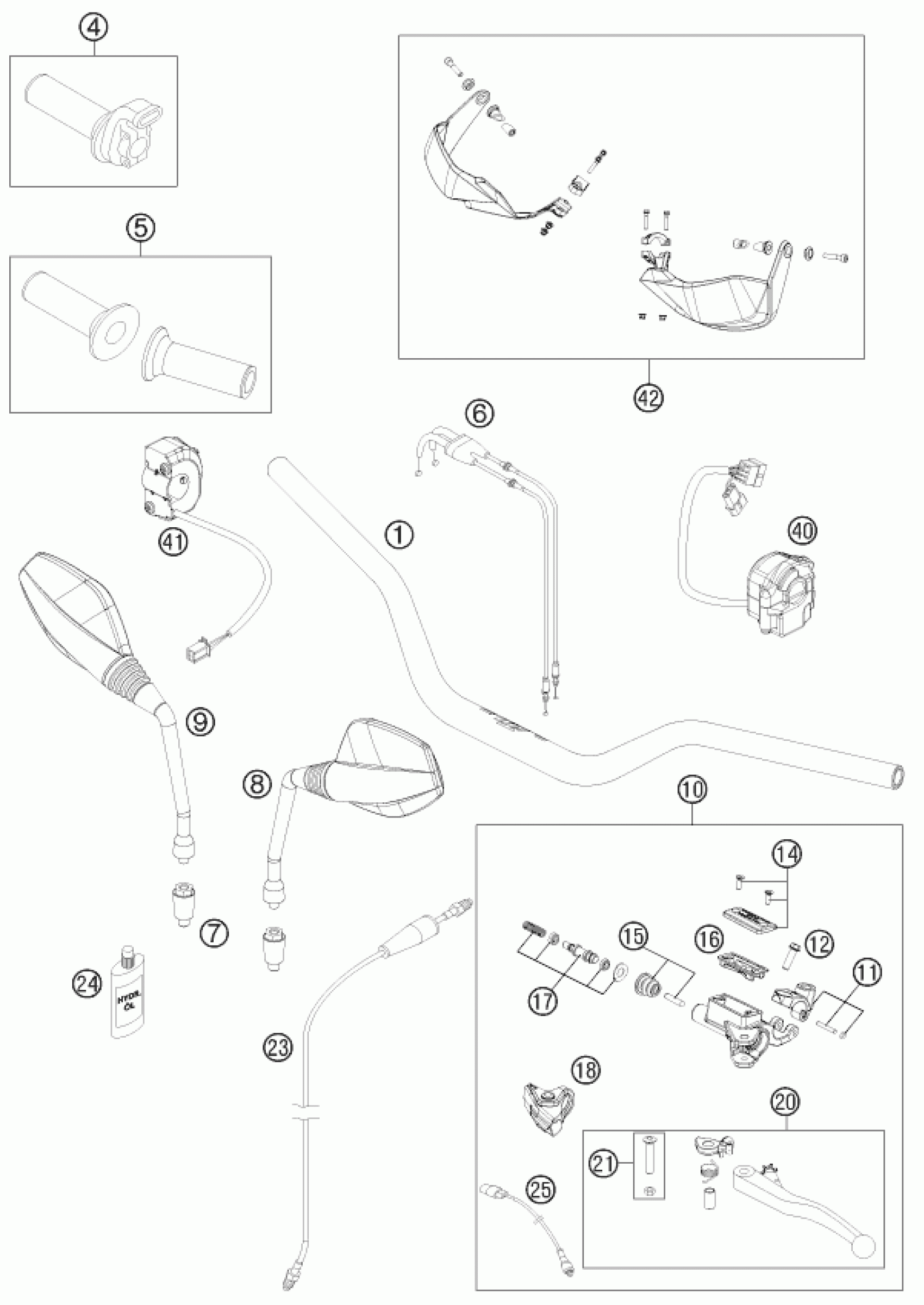

KTM 690 ENDURO R 2013 HANDLEBAR, CONTROLS Diagram
