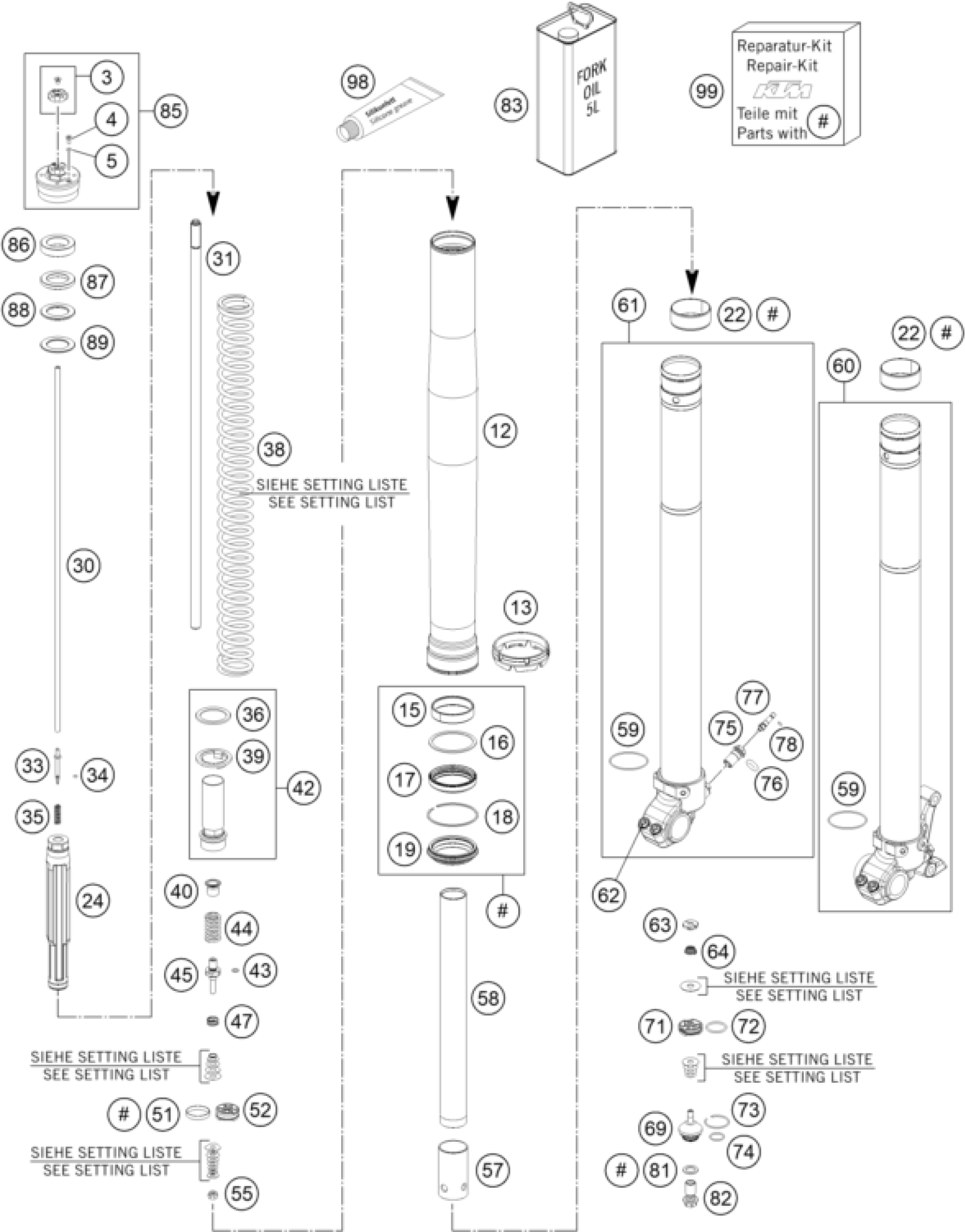

KTM 690 ENDURO R 2013 FRONT FORK DISASSEMBLED Diagram

#

Description
Price

3

ADJUSTING KNOB + SCREW

48600812S

Unavailable

4

Cross flat head screw M4x6

48600058

Unavailable

5

O-ring 3,7x1,6 NBR70

48600009

Unavailable

12

Fork outer tube 49,13x577 dt54

48600761

Unavailable

13

Fork protection ring 62,1mm

48600698

Unavailable

15

Guide bushing 48x52x12

48601009

Unavailable

16

Supportwasher 50x57,6x1,5

48600013

Unavailable

17

OIL SEAL RING 48X57,8X9,5 03

48600347

Unavailable

18

Snap ring SB58x1,5 acc drawing

48600070

Unavailable

19

DUST CAP D=48 58,4X11,8

48600400

Unavailable

22

Guide bushing 47x49x20

48601008

Unavailable

24

Stop 12,4x31,9x200 cpl.

48600557S

Unavailable

30

ADJUSTING TUBE L=470

48600730

Unavailable

31

Piston rod 12x504

48600729

Unavailable

33

Needle 4,5x43,6

48600277

Unavailable

34

O-ring 2x1,5 NBR70

48600298

Unavailable

35

Spring (5,4) 4-23 rebound

48600444

Unavailable

36

Washer 32x42x2,5 plastic

48600113

Unavailable

38

SPRING D43.2L465 5.2N/MM D5.25

91410064S

Unavailable

38

Mainspring D43.2 L465 5.4N/MM

91410065S-00

Unavailable

38

SPRING D43.2 L465 5.6N/MM

91410068S

Unavailable

39

Spring retainer 33,5x43x3

48600021

Unavailable

40

Spring retainer 12,3x19x1,25 r

48600525

Unavailable

42

SCREW SLEEVE M27X,08 L=100 KPL

48600762S

Unavailable

43

O-ring 6x1,2 NBR70

48600299

Unavailable

44

Spring (13,9) 17-32 rebound

48600511

Unavailable

45

Tap 6x46 rebound

48600576

Unavailable

47

Spring (11,4) 0,4-8 valve

48600382

Unavailable

51

Piston ring 21x23x5

48600455

Unavailable

52

Piston 6,07x22,7x13

48600575

Unavailable

55

Nut M6x0,5 h6,5 WAF10 rebound

40540486

Unavailable

57

ADAPTER BUSHING D23/D28

48600884

Unavailable

58

Tube 23x350

48600763

Unavailable

59

O-ring 46x2 NBR70 siliconized

48600048

Unavailable

60

AXLE CLAMP L/S + TUBE CPL.

48600881S1

Unavailable

61

AXLE CLAMP R/S + TUBE CPL.

48600882S1

Unavailable

62

HH collar screw M8x25

0025080256

Unavailable

63

Nut valve M6x0,5 h6,5 WAF17

48600163

Unavailable

64

Spring (8,5) l6,5 valve

48600202

Unavailable

69

TAP COMPRESSION 2002

48600177

Unavailable

71

Piston 6x27,8x9 compression

48600047

Unavailable

72

O-ring 21x2 NBR70

46811499

Unavailable

73

SPRING RING 29,8X1,6

43570175

Unavailable

74

O-RING NBR 15X1,5

43570180

Unavailable

81

SEALING RING COPPER 12X18X1,5

48600704

Unavailable

82

HH collar screw M12x1x23

48600176

Unavailable

83

Fork Fluid Viscosity 4.0 5L

48601166S1

Unavailable

85

SCREW CAP M51X1,5 CPL. 12

48600558S1

Unavailable

86

Preload bush 26,5x42x10

48600038

Unavailable

87

Preload bush 26,5x42x5

48600037

Unavailable

88

Preload bush 42x26,5x2,5

48600036

Unavailable

89

Preload bush 26,5x42x1,5

48600053

Unavailable

98

SILICONE GREASE F. DUST STRI

T511

Unavailable

99

REPAIR KIT FORK

R14023

Unavailable

75

Adjuster housing compression M

48600596

Unavailable

76

O-ring 10x2 NBR70 siliconized

35480083

Unavailable

77

Adjustment screw slot compress

48600598

Unavailable

78

O-ring 3x1,5 NBR70

48600046

Unavailable
