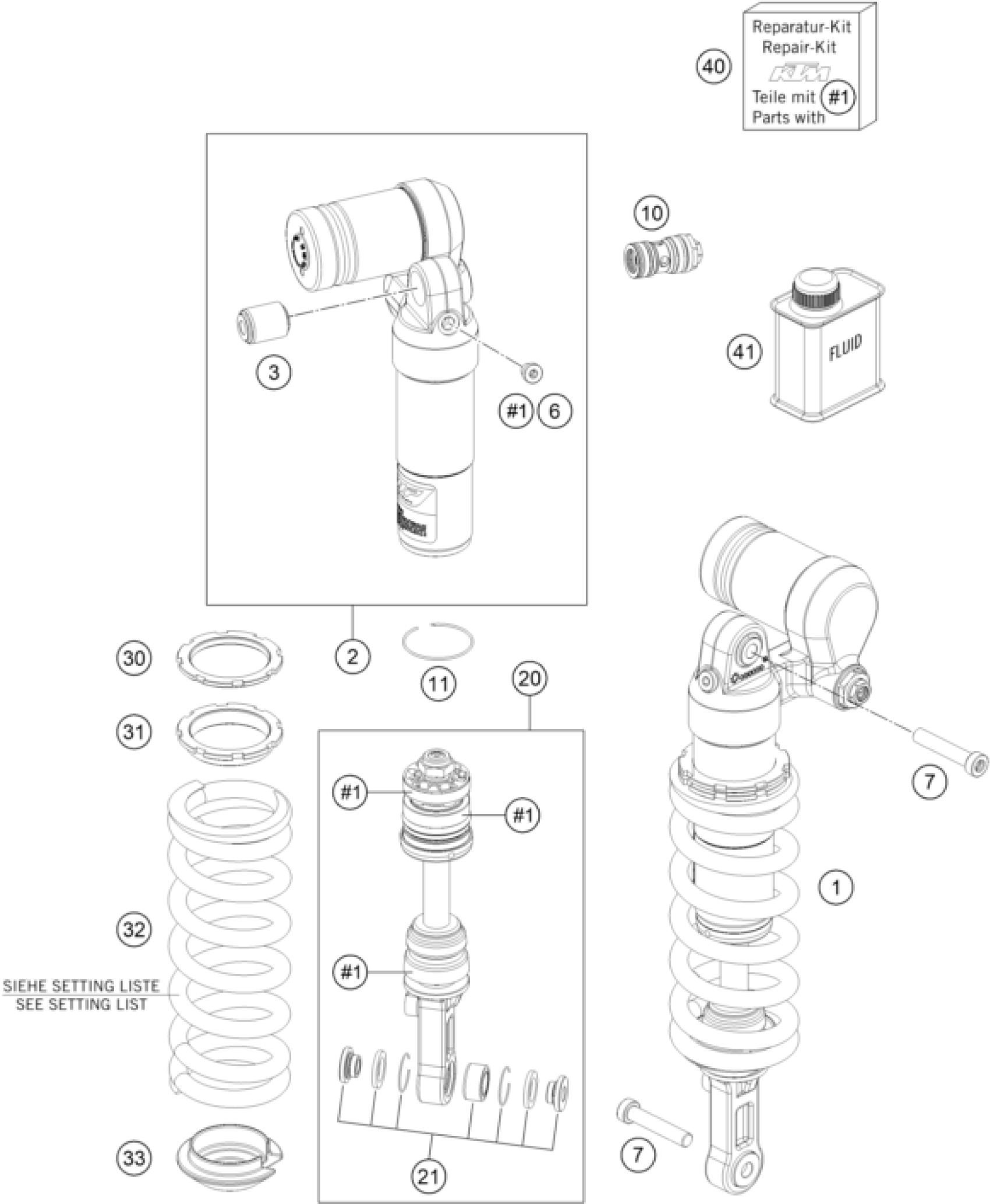

KTM 690 ENDURO R 2012 SHOCK ABSORBER Diagram

#

Description
Price

1

Shock absorber ENDURO-R

15187L1001

Unavailable

2

Shock abs. upper part cmpl. KT

46180776S1

Unavailable

6

HS cylinder-head screw R1/8 l8

50180095

Unavailable

7

CYL. SCREW M10X1,25 L=53

76504016000

Unavailable

10

Compression cpl.

46180533S1

Unavailable

11

Round-wire snap ring 49x1,5

46810010

Unavailable

20

MONOSH. LOWER PART CPL. ENDURO

46180654S14

Unavailable

21

REPAIR KIT BEARINGS 07

R15006

Unavailable

30

Lock nut shock M54x1,5

46180766

Unavailable

31

Adjustment nut shock M54x1,5

46180855

Unavailable

32

SPRING 220MM 80N/MM (61)

91110004S

Unavailable

32

SPRING 220MM 85N/MM (61)

91110005S

Unavailable

33

Spring retainer 28x73x15

46180396

Unavailable

40

REPAIR KIT GASKET 05

R15004

Unavailable

41

SHOCK ABSORBER FLUID 5 LT

50180751S1

Unavailable

3

Silentblock 10,05x25x32

14460161

Unavailable
