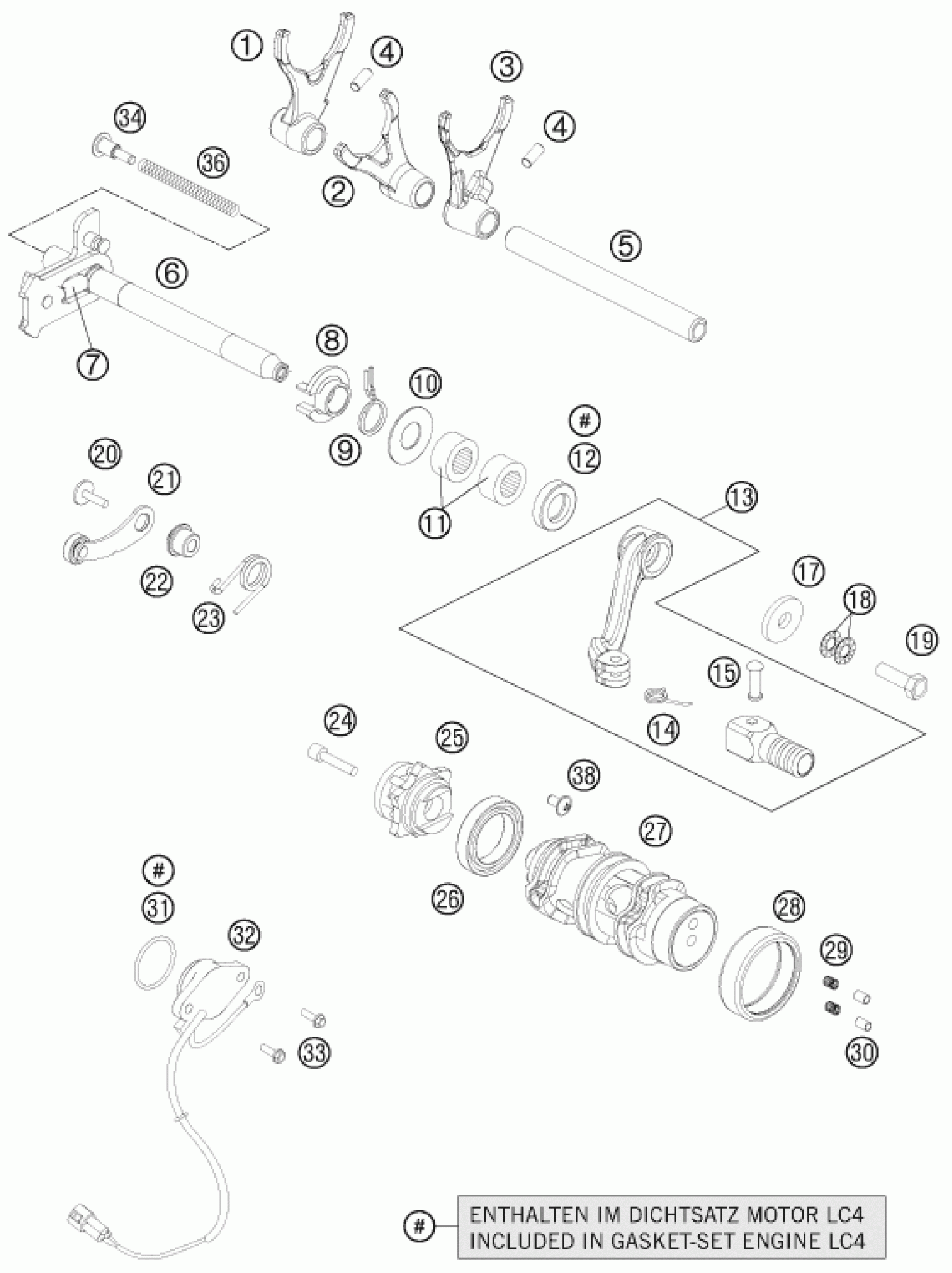

KTM 690 ENDURO R 2012 SHIFTING MECHANISM Diagram

#

Description
Price

1

SHIFT FORK F SLIDINGGEAR 5 07

75034002000

$39.73

2

SHIFT FORK F. SLIDINGG. 3/4 07

75034001000

$38.51

3

SHIFT FORK F. SLIDINGGEAR 07

75034003000

$39.73

4

NEEDLE ROLLER DIN5402 6X14,8

0402061480

$4.11

5

SHIFTRAIL 07

75034019000

$12.99

6

SHIFT SHAFT CPL. 07

75034005044

$83.95

7

TENSIONING SPRING 0,8MM

56534013100

$1.49

8

SPRING GUIDE

54634020000

$6.44

9

RETURN SPRING 2,2MM '95

54634014100

$6.63

10

STOP DISK 14X30X1,5 STEEL

75034050000

$4.11

11

needle sleeve HK 1412 14x20x12

54632095000

$7.00

12

SHAFT SEAL RING 14X24X6B VITON

0760142461

$6.63

13

SHIFT LEVER CPL. 08

76234031000

$82.46

14

SHIFTING LEVER SPRING

75034032000

$3.08

15

BOLT 6X25 FOR SHIFT LEVER

54634031050

$7.85

17

STEEL WASHER 6,4X17X3

50232050001

$5.23

18

Pair of washers M6 NORDLOCK

50233041000

$4.11

19

SPECIAL SCREW M6X16 WS=8 10.9

59009062016

$2.05

20

HH collar screw M6x20 TX30

0024060206

$3.08

21

LOCKING LEVER CPL. 07

75034024044

$19.16

22

SLEEVE FOR LOCKING LEVER 07

75034052000

$4.11

23

ARRESTING LEVER SPRING 03

60034023000

$2.05

24

AH SCREW DIN0912-M 6X30

0912060303

$2.05

25

SHIFT DRUM LOCATING CPL. 07

75034015000

$21.78

26

BALL BEARING 61805 C3

0625618050

$43.94

27

SHIFT ROLLER CPL. 07

75034012044

$84.53

28

NEEDLE BEAR HK3512 35X42X12

0618354212

$9.90

29

CONTACT SPRING 03

60034014000

$1.49

30

CONTACT BOLT 03

60034037000

$4.11

31

O-RING 27,5X2,5 NBR

0770275025

$1.49

32

GEAR-POSITION SENSOR 06

60011023100

$46.74

33

HH collar screw M5x16 TX30

0025050166

$2.05

34

SPACER

75034006000

$8.78

36

SPRING FOR OPERATING SHAFT

75034007000

$8.78

37

WASHER DIN0125-A 5,3

0125050003

$1.49

38

FLAT HEAD SCREW ISO7380 M5X10

073800501001

$1.49
