Description

Price

1

HANDLEBAR D=28 MM RENTHAL796

5480200120017

$151.84

4

THROTTLE GRIP CPL. 08

76502010000

$56.75

5

GRIP SET DUAL COMPOUND

63002021200

$27.01

6

THROTTLE CABLE 07

75002091000

$97.98

7

SUPPORT FOR MIRROR LC4 '98

58412040050

$20.19

8

REVIEW MIRROR L/S

76512040000

$42.53

9

REVIEW MIRROR R/S

76512041000

$42.53

10

MASTER CYLINDER MAGURA D=10.5

60002130000

$361.93

11

CLAMP MIRROR WITH CLAMP

60002044000

$53.38

12

HH collar screw M6x20 TX30

0025060206

$3.08

14

FLAT HEAD SCREW DIN0965-M 4X12

0965040123

$1.49

16

RUBBER FOR RESERVOIR '98

50302034000

$18.97

17

REP.SET PISTON MAGURA D=10.5

50302032000

$70.77

18

PROTECT.CAP FOR LEVER PERCH'98

50302037000

$19.07

19

SPRING FOR CLUTCH LEVER 03

59002035000

$4.11

20

CLUTCH LEVER LONG CPL. 2003

60002031000

$64.69

21

LEVER SCREW CPL. 125-200 '98

50302038000

$23.46

23

CLUTCH PIPE SM 07

75032063000

$95.83

24

OIL FOR HYD. CLUTCH 100 ML

50302036200

$19.91

25

CLUTCH SWITCH 03

58411049100

$54.32

40

LIGHT SWITCH L/S 08

76511070000

$110.04

41

START-EMERGENCY STOP SWITCH 08

76511074000

$60.86

42

HANGUARDS CLOSED, ORANGE

6020217900004

Unavailable

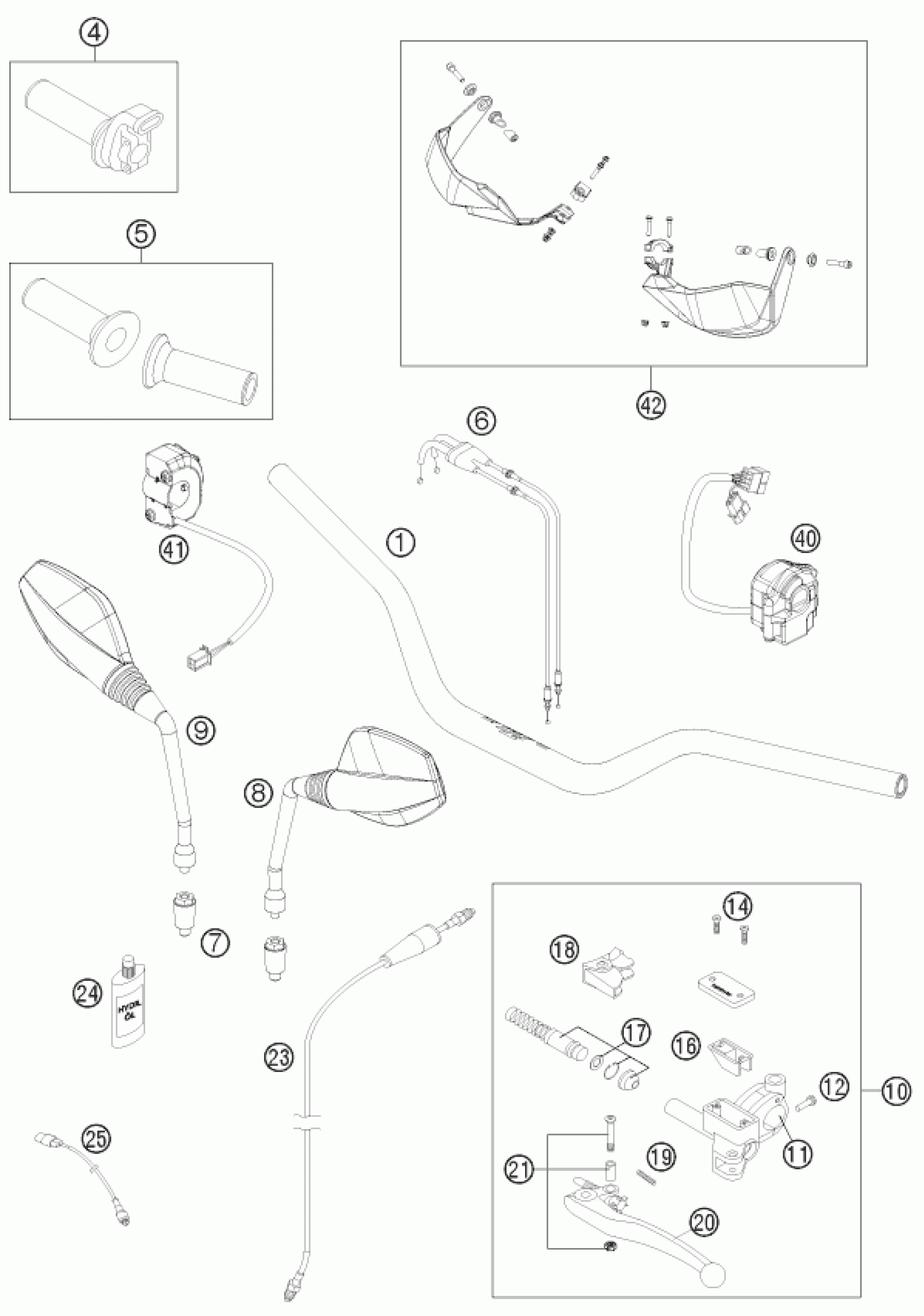

KTM 690 ENDURO R 2012 HANDLEBAR, CONTROLS Diagram
