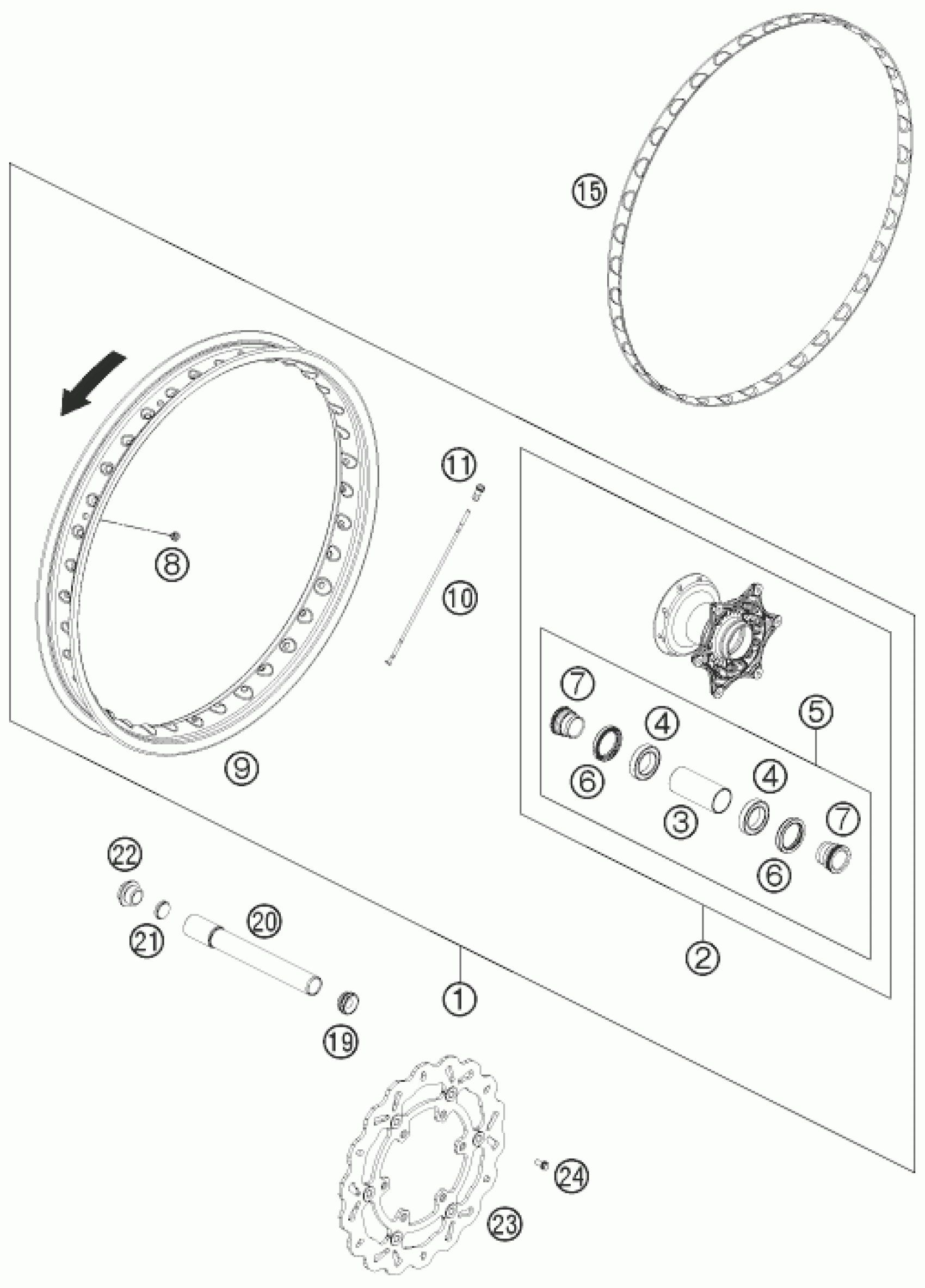

KTM 690 ENDURO R 2011 FRONT WHEEL Diagram

#

Description
Price

4

Grooved ball bearing 6906

0625069068

$34.68

5

FRONT WHEEL REP. KIT

78009015000

$106.68

6

Radial shaft seal 35X47X7 TC

0760354771

$8.69

7

SPACER BUSHING F. FR. WHEEL 08

78009012000

$30.10

8

PLUG FOR RIM

55003135000

$2.05

9

Rim 1.85X21" DID black 08

7650907000030

$366.89

10

SPOKE M4,5X226-18'' INOX

75309073226

$4.11

11

SPOKE NIPPLE M4,5X0,75 8X21

50309072100

$2.05

15

RIM BAND FRONT 2MM 2003

58409073100

$7.56

19

PLUG BUSHING WS=27 03

54809081050

$9.81

20

WHEEL SPIN.FR. D=26 M24x1,5 07

77309081000

$82.83

21

AUXILIARY SCREW FRONT 06

54809081070

$5.70

22

SPINDLE SCREW M24X1,5 WS=27 03

54809082000

$9.81

23

FRONT BRAKE DISC D=300

76509060100

$384.09

24

SPECIAL SCREW M6X13 WS=8 10.9

59009062013

$2.05

1

FRONT WHEEL CPL. 1,85X21'' 08

7650900104430

$839.34

2

FRONT HUB CPL. 08

75309010044

$294.61

3

BEA.SPACERTUBE 35X2 L=79,4 03

54809011000

$25.70
