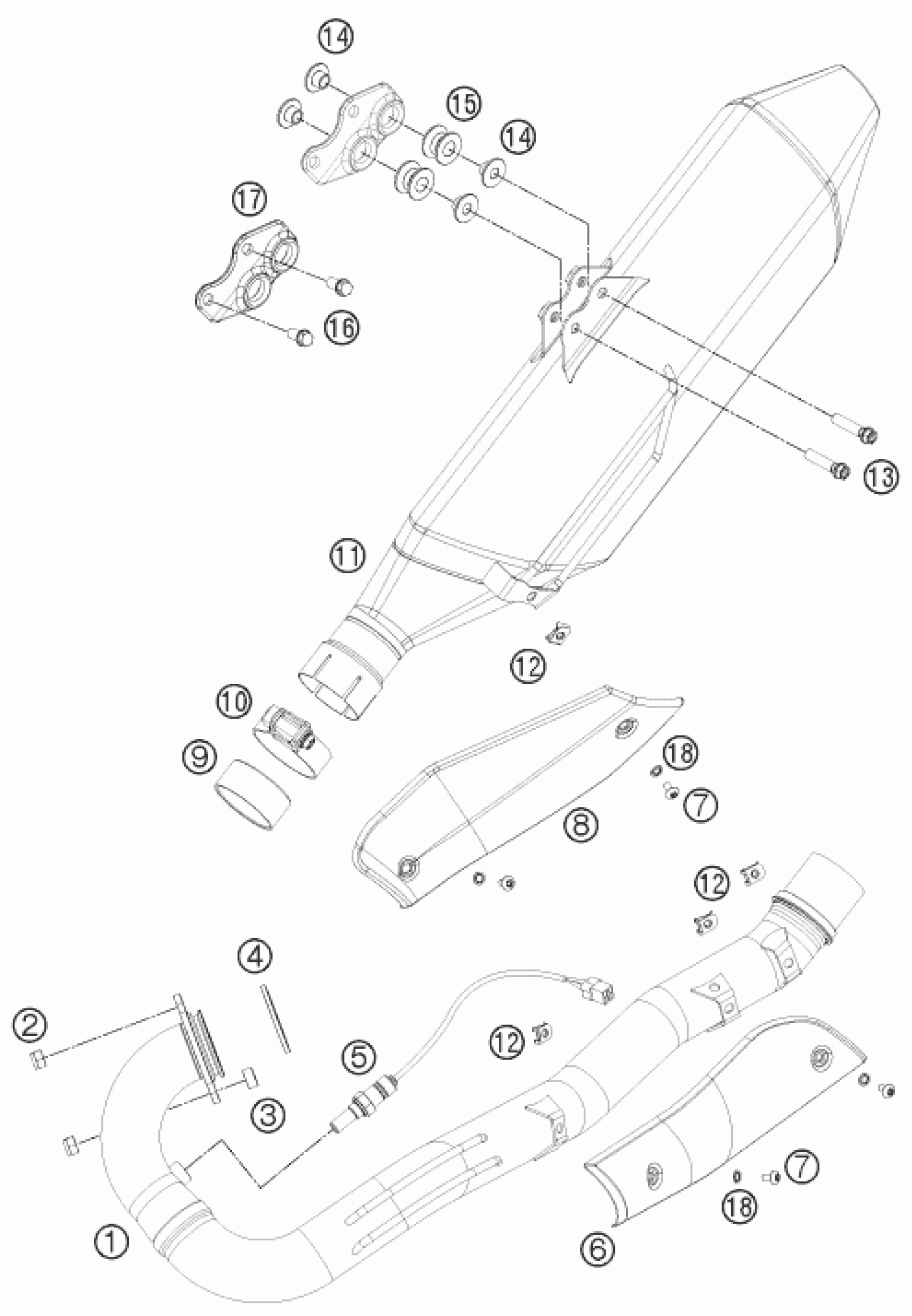

KTM 690 ENDURO R 2011 EXHAUST SYSTEM Diagram

#

Description
Price

1

EXHAUST MANIFOLD 08

76505007000

$704.23

2

self-locking nut M8 Cu

51010086100

$3.08

3

SPACER BUSH. 8,5X15X7,5 05

61005009000

$5.23

4

Exhaust gasket 05

61005005000

$10.00

5

LAMBDA SENSOR 07

75041090000

$171.19

6

HEAT SHIELD EXHAUST MANIFOLD

76505090010

$76.19

7

SCREW TORX M5X10 05

58605083010

$2.05

8

HEAT SHIELD SILENCER

76505090020

$71.43

9

GRAPHIT RING 55X50X25 05

58605005000

$16.92

10

CLAMP FOR SILENCER 57,4MM 08

76505051000

$27.67

11

SILENCER 08

76505083000

Unavailable

12

clip nut M5

69008021080

$3.08

13

HH collar screw M8x35 TX40

0025080356

$4.11

14

collar bushing 8.5x12x23.5x10

58405050065

$5.23

15

damp. component silicone grey

54305068100

$8.31

16

HH COLLAR SCREW M 8X16 WS=13

49109481052

$3.08

17

HOLDER SILENCER

76505084000

$35.90

18

TOOTH LOCK WASHER DIN6797-J

0797050000

$2.05
