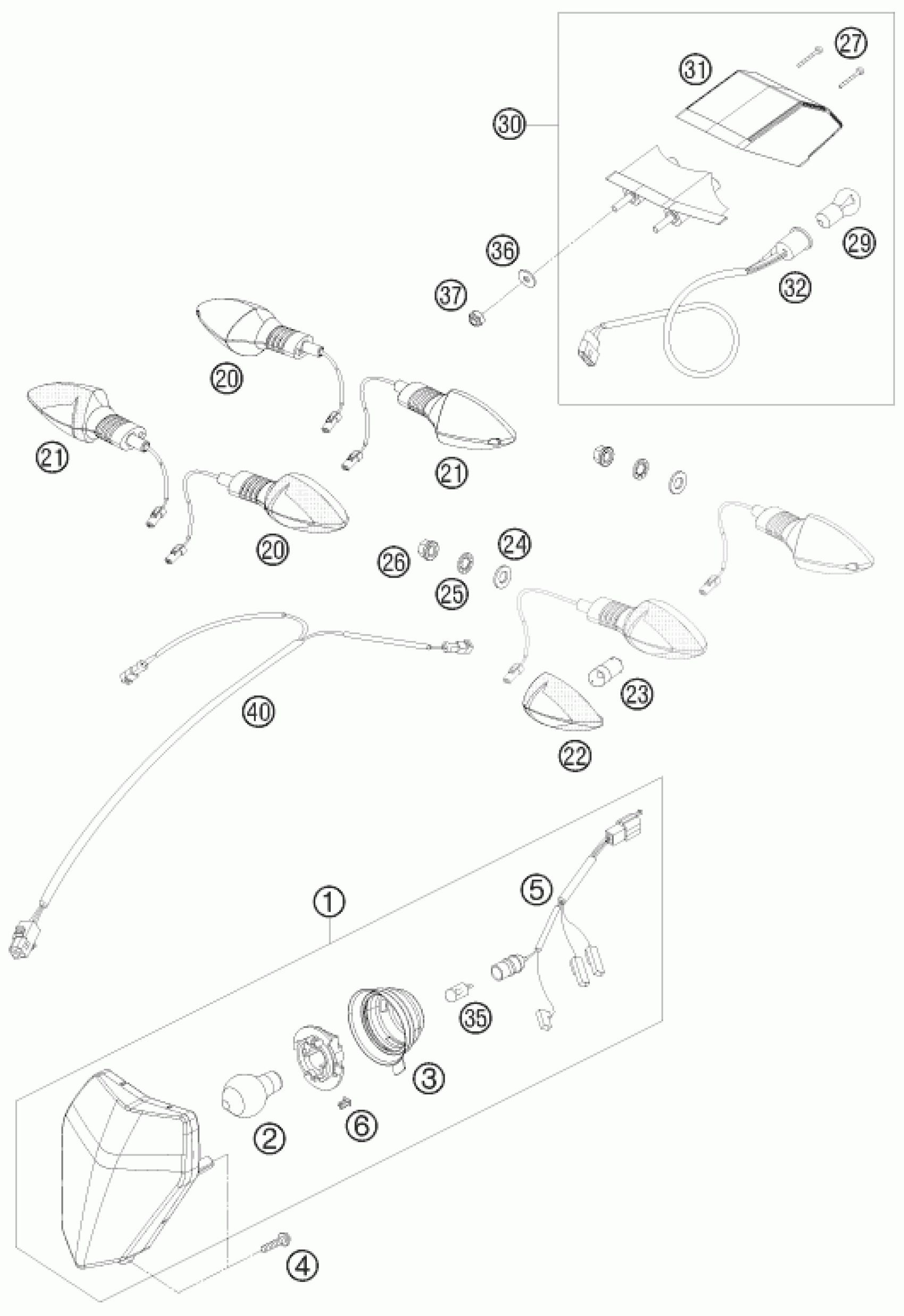

KTM 690 ENDURO R 2010 LIGHTING SYSTEM Diagram

#

Description
Price

1

HEAD LIGHT CPL. EXC-EU 08

78014001000

$116.12

2

BILUX-BULB 12V 35/35W BA20D

44111038000

$16.17

3

RUBBER CAP FOR HEAD LIGHT 05

54814001050

$10.93

4

SCREW FOR PLASTIC K50X18 T20

0081050181

$2.05

5

CABLE FOR HEAD LIGHT 2005

54811001050

$14.39

6

DRAIN HOLE COVER

78014009000

$3.08

20

FLASHER CPL.FRONT L/S REAR R/S

60114025000

$30.00

21

FLASHER CPL.FRONT R/S REAR L/S

60114026000

$30.00

22

FLASHER LENS L/S R/S TRANSP.06

60114028000

$5.51

23

BULB 12V ORANGE (RY10W)

60114027000

$6.63

24

Washer DIN0433-M10

0433100003

$1.49

25

LOCK WASHER DIN6797-J10,5 ZI

0797100003

$1.49

26

HH COLLAR NUT M10X1,25 WS=13

58414030000

$2.05

27

SHEET MET. SCR. DIN7981 3,5X32

0981350323

$1.49

29

BULB 12V 21/5W (BAY15S)REINFO.

58414042000

$12.61

30

REAR LIGHT CPL. EXC 07

50314040200

$80.96

31

REAR LIGHT LENS 125-380 EGS'98

50314041100

$27.48

32

WIRING HARNESS REAR 125-380'98

50311076000

$27.39

35

BULB 12V 5W (W2,1X9,5D) PHIL.

49011435100

$5.23

36

Washer DIN9021-A 6.4

0021060003

$2.05

37

Self lock. nut DIN985-M6-A2

0985060003

$2.05

40

WIRING HARNESS FLASHER REAR 08

76511076000

$24.77
